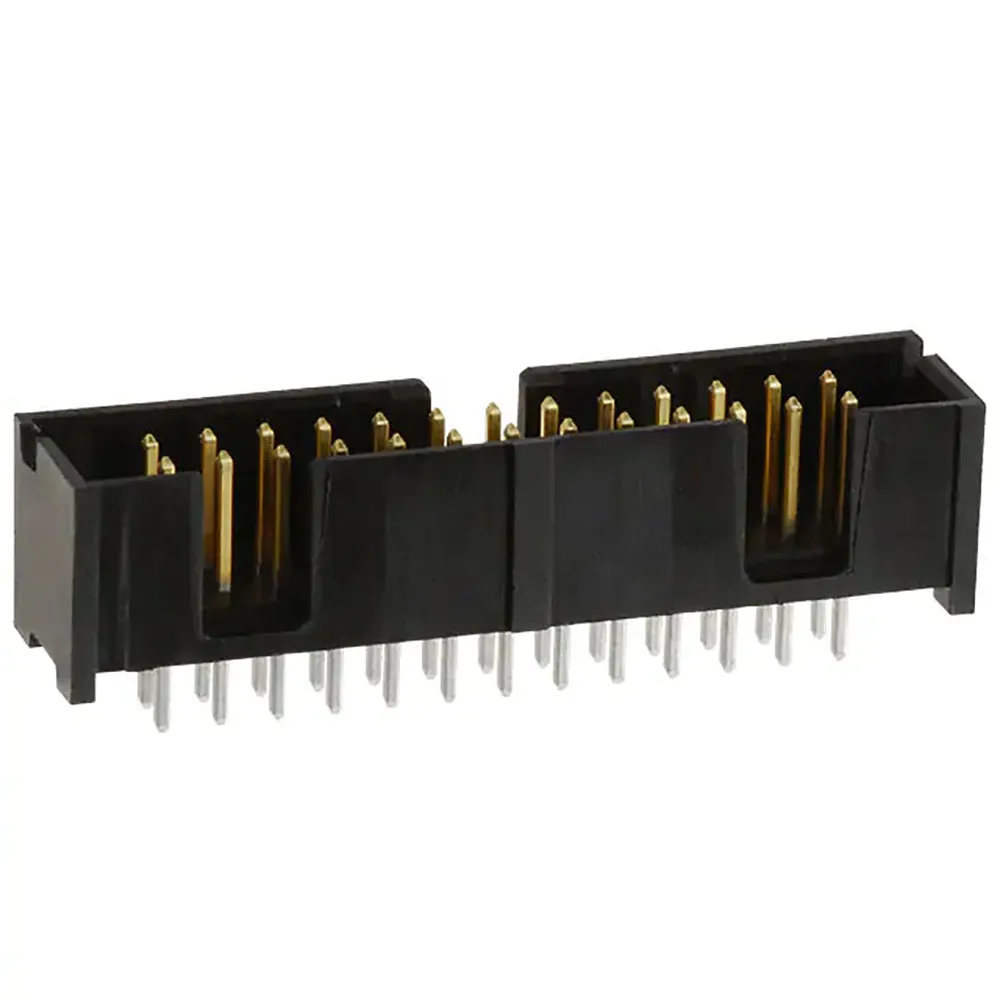

26 Position Shrouded Male Pin Header 0.100" (2.54mm) Push-Pull Through Hole Solder

Specifications

  • Series: AMP-Latch
  • Connector Type: Header
  • Contact Type: Male Pin
  • Pitch - Mating: 0.1" (2.54 mm)
  • Number of Positions: 26
  • Number of Rows: 2
  • Row Spacing: 0.1" (2.54 mm)
  • Number of Positions Loaded: All
  • Style: Board to Cable/Wire
  • Shrouding: Shrouded - 4 Wall
  • Mounting Type: Through Hole
  • Termination: Solder
  • Fastening Type: Push-Pull
  • Features: Keying Slot
  • Contact Length - Mating: 0.24" (6.1 mm)
  • Contact Length - Post: 0.12" (3.05 mm)
  • Overall Contact Length: n/a
  • Insulation Height: 0.388" (9.86 mm)
  • Contact Shape: Square
  • Contact Finish - Mating: Gold or Gold-Palladium
  • Contact Finish Thickness - Mating: 15 µin (0.38 µm)
  • Contact Finish - Post: Tin
  • Contact Finish Thickness - Post: 100 µin (2.54 µm)
  • Contact Material: Brass
  • Insulation Ma

,
