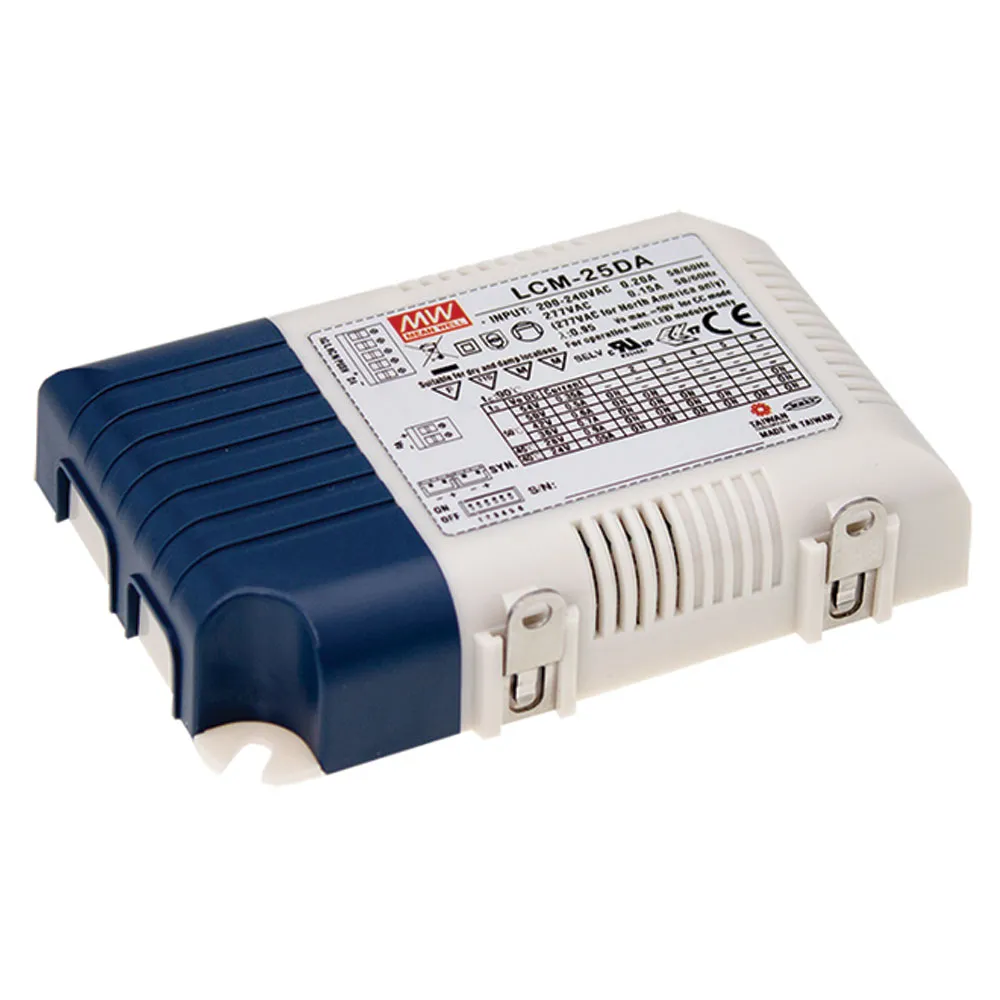

AC to DC Switching LED Power Supply Switch Selectable Output Current 6 to 24-24 Volts with PFC Function

Volts @ Amps

Specifications

  • Output Power (W): 25
  • Size (L x W x H) inches: 4.13 X 2.68 X 0.91
  • Ripple & Noise (mV p-p): 400
  • Efficiency: 86%
  • Agency Approvals: UL/CUL/CE/CB
  • Output current level selectable by DIP Switch
  • 180~277 VAC input only
  • Built in active PFC function
  • Protections: short circuit, over temperature
  • Cooling by free air convection
  • Fully isolated plastic case
  • Class II power unit, no FG
  • Built in DALI interface and push dimming design
  • Logarithm or linear dimming curve selectable
  • IP20 design
  • No load power consumption <0.5 watts
  • Power supplies synchronization function up to units
  • 3 year warranty

Product Identification

Product Type:Auto Switching SMPS
Manufacturer Series:LCM-25

Compliance

Agency Approvals:UL, CUL, CB, CE, EN, ENEC, EAC, CCC

Dimensions & Appearance

Style:Enclosed
Color:White
Height:0.91 in.
Width:2.68 in.
Length:4.13 in.

Operating conditions

Minimum Operating Temperature:-30°C
Maximum Operating Temperature:60°C

Input

Input Frequency:47 Hz to 63 Hz
Maximum Input Current:0.17 A
Input Voltage:180 VAC to 277 VAC

Output

Number of Outputs:1
Output Connector Type:JST B2B-PH-KL or equiv.
Output Range:6 VDC to 54 VDC
Output Voltage:See Output Range
Output Current:1.05 A

Features

PFC Function:Yes
IP Rating:IP20
Minimum Isolation Voltage:3750V
Efficiency:86%
Power Rating:25.2 W
,
