25W Multiple-Stage Constant Power LED Driver 300mA to 1050mA Select by NFC Switch UL8750 without Strain Relief

MEAN WELL

Jameco Part #:

Manufacturer #:

Primary datasheet

Non Cancelable

Non Returnable

Product Price:

$17.100

In Stock: 0

Quantity	Unit Price	You Save	Discount
1+	$17.100	-	-
5+	$16.300	0.80	4.68%
10+	$15.600	1.50	8.77%
20+	$15.100	2.00	11.7%

Features

Constant power mode output with multiple stage selectable by NFC
Plastic housing with class II and PFC design
Meets UL 8750 Class 2 / Class P power unit
Flicker free, complying with CE ErP directive
Standby power consumption <0.5W
Meets emergency lighting (EL) applications
Without strain-relief option
Dimming options are available as individual models
5 year warranty

Overview

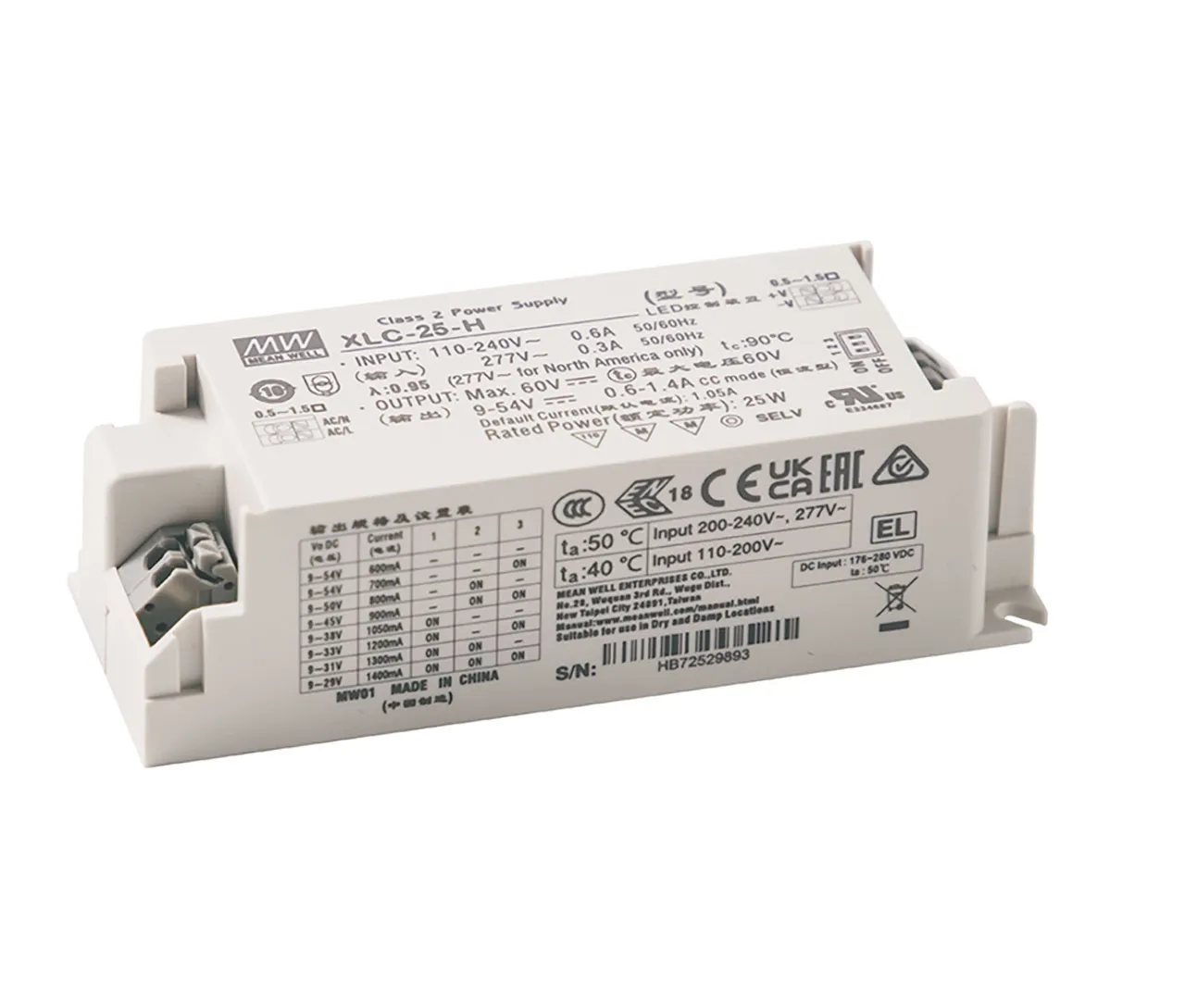

XLC-25 series is a 25 watt constant power output LED driver. It can operate from 100 VAC to 305 VAC and output current ranging between 300 mA to 1050 mA selctable by NFC. Thanks to high efficiency up to 88%, it can operate over a temperature range from -25°C to 85°C under free air convection. The XLC-25 is designed based on the latest safety regulations with 3-in-1 and DALI-2 dimming options available. XLC-25 can also be adjusted for brightness with a push button as a simple way of dimming, so it provides more flexibility for LED lighting applications.

Applications

Recessed lighting
Down light
Panel light
Commercial lighting
Decorative lighting
LED strip lighting
