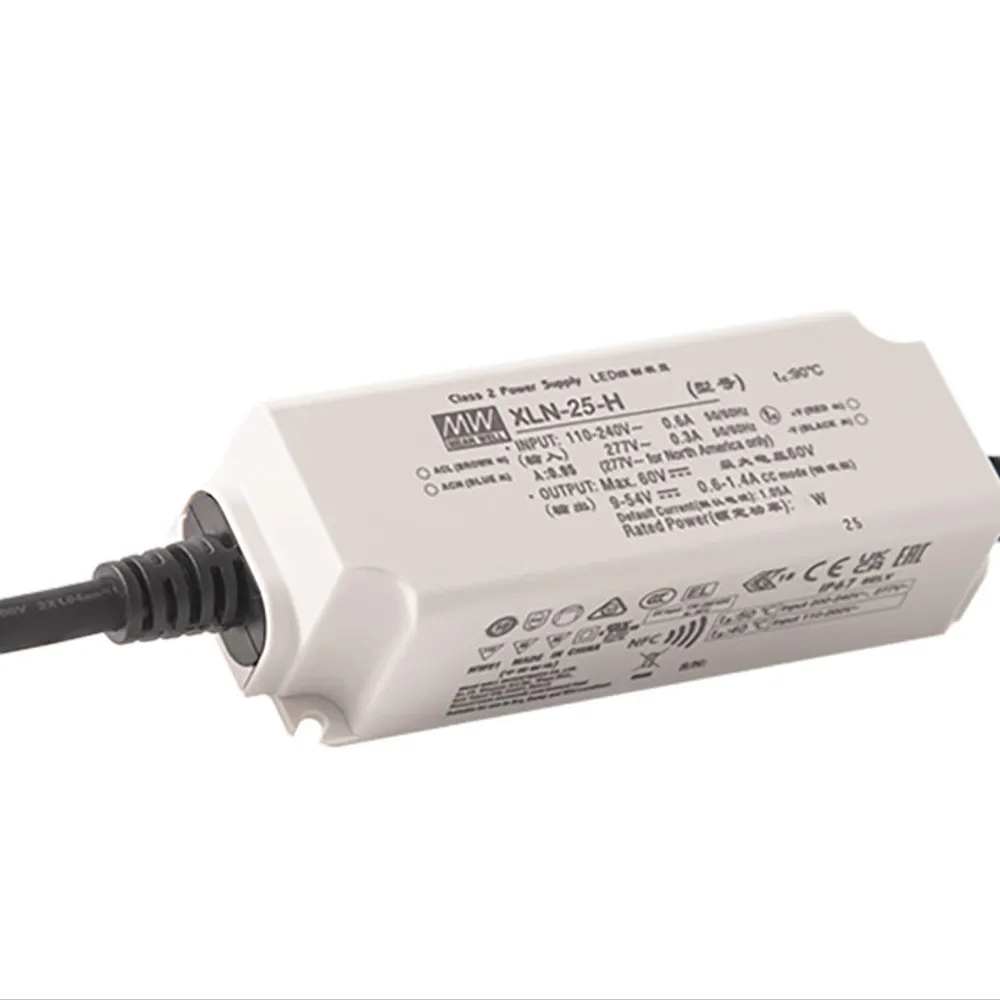

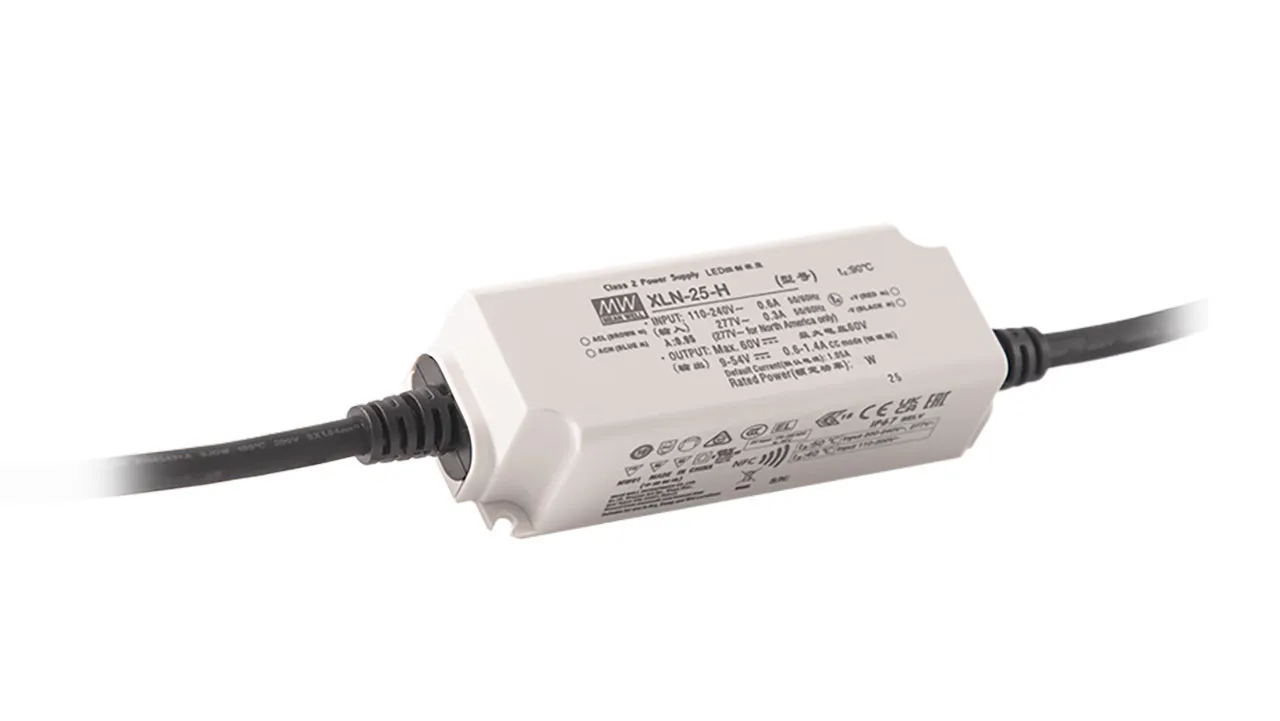

25W Multiple-Stage Constant Power LED Driver 300mA to 1050mA Select by NFC IP67 UL8750 DALI-2 Dimming

MEAN WELL

Jameco Part #:

Manufacturer #:

Primary datasheet

Non Cancelable

Non Returnable

Product Price:

$24.700

In Stock: 0

Quantity	Unit Price	You Save	Discount
1+	$24.700	-	-
5+	$23.500	1.20	4.86%
10+	$22.500	2.20	8.91%
20+	$21.800	2.90	11.74%

Features

Constant power mode output with multiple stage selectable by NFC setting
Plastic housing with class II and PFC design
Meets UL 8750 Class 2 / Class P power unit
Flicker free, complying with CE ErP directive
Standby power consumption <0.5W
Meets emergency lighting (EL) applications
Fully encapsulated with IP67
Minimum dimming level 0.1% (DALI-2 DT6)
Dimming functions: DALI-2 + push dimming
5 year warranty

Overview

XLN-25 series is a 25 watt constant power or constant voltage output LED driver (depending on the model). It can operate from 100 VAC to 305 VAC and with high efficiency up to 88% over a temperature range from -25°C to 85°C under free air convection. The XLN-25 is designed based on the latest safety regulations with 3-in-1 and DALI-2 dimming options available. XLN-25 can also be adjusted for brightness with a push button as a simple way of dimming, so it provides more flexibility for LED lighting applications.

Applications

Recessed lighting
Down light
Panel light
Commercial lighting
Decorative lighting
LED strip lighting
DALI digital lighting
