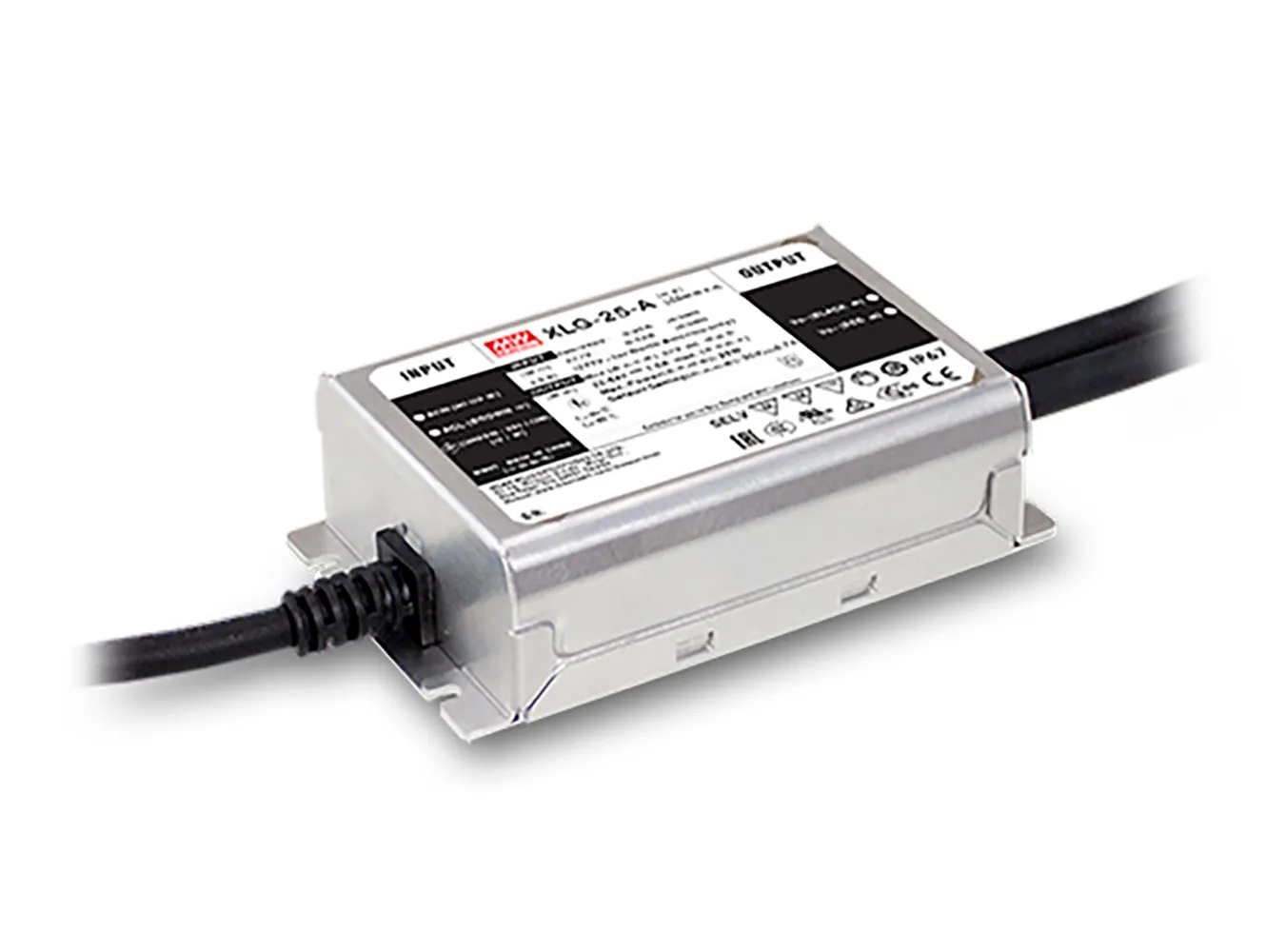

25W Constant Power Mode LED Driver 700mA 22V-54V - Current Adjustable with Built-in Potentiometer

700 mA @ 22 VDC to 54 VDC

Find out more about MEAN WELL power solutions for outdoor lighting.

Features

  • Model A: Output current adjustable through built-in potentiometer
  • Constant power mode output
  • Metal housing design with functional Ground
  • Built-in active PFC function
  • Class 2 power unit
  • No load / Standby power consumption <0.5W
  • IP67 rating for indoor or outdoor installations
  • Efficiency up to 88%
  • Typical lifetime >50,000 hours
  • 5 year warranty
  • Agency Approvals: UL, CUL, CB, CE, CCC, ENEC05

Applications

  • LED street lighting
  • LED architectural lighting
  • LED bay lighting
  • LED floodlight lighting
  • Type "HL" for use in Class 1, Division 2 hazardous (Classified) locations

Product Identification

Product Type:Auto Switching SMPS
Manufacturer Series:XLG-25

Compliance

Agency Approvals: CB, CCC, CE, CUL, EAC, EN, ENEC, UL

Dimensions & Appearance

Style:Enclosed
Color:Silver
Height:1.18 in.
Width:2.48 in.
Length:4.13 in.

Operating conditions

Minimum Operating Temperature:-40°C
Maximum Operating Temperature:85°C

Input

Input Frequency:47 Hz to 63 Hz
Maximum Input Current:0.29 A
Input Voltage:90 VAC to 305 VAC

Output

Number of Outputs:1
Output Current (Channel 1):0.25 A to 1.05 A
Output Voltage (Channel 1):22 VDC to 54 VDC
Output Connector Type:Stripped and Tinned
Output Range:22 VDC to 54 VDC
Output Current:0.70 A
Output Voltage:See Output Range

Features

PFC Function:Yes
Minimum Isolation Voltage:3750V
IP Rating:IP67
Efficiency:88%
Power Rating:25 W
,
