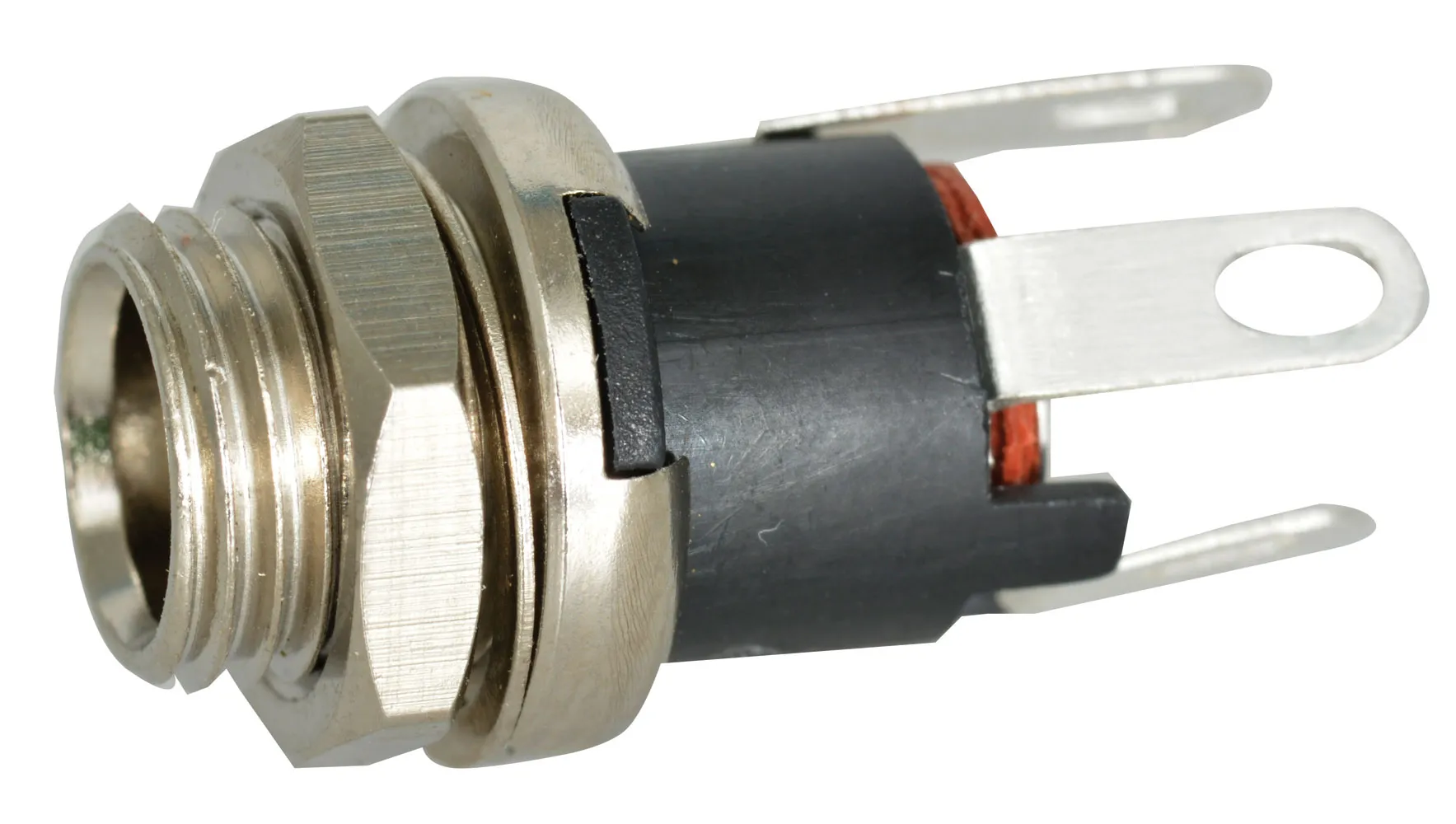

2.5mm x 5.5mm Male Power Jack Panel Mount 3 Terminal
Features:
- Maximum Rating: 5A 24V DC
- Jack type: 2.5mm male
- Panel and PCB mounting
- Solder eyelet terminals
- Size: 15.1mm length x 8.0mm diameter
- Additional Mounting Hardware ( M8 x 0.75 Hex Nut, p/n: 2182573)
Product Identification
Product Type:DC Power Jack
Manufacturer Series:ValuePro
Dimensions & Appearance
Body Orientation:Straight, Round
Mounting Type:Panel Mount
Body/Shell Style:Jack
Features
Pin/Inner Diameter (mm):2.5mm
Voltage Rating:24 VDC
Termination:Solder Lug
Outer Diameter:5.5mm
Current Rating:5 A
