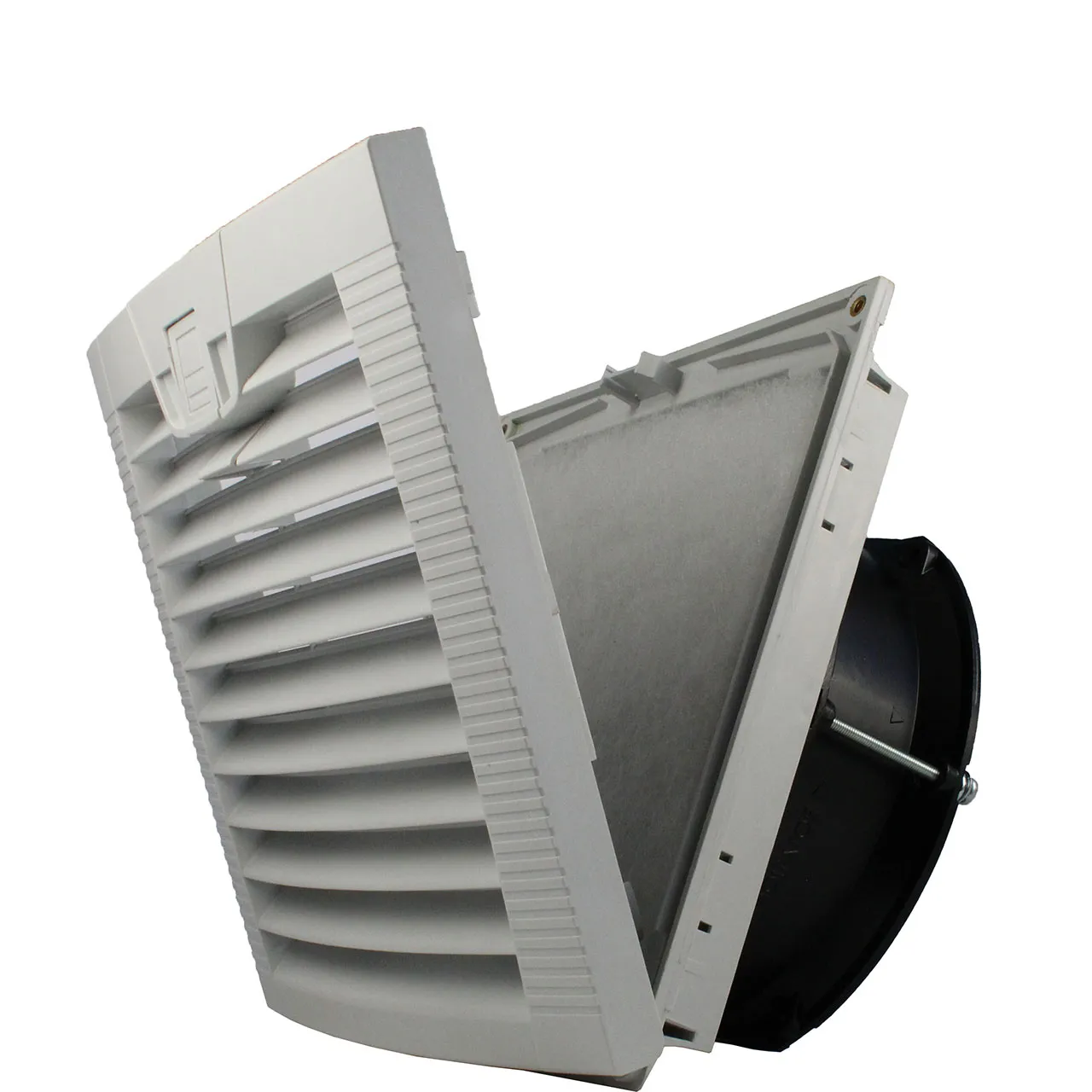

254 mm x 254 mm x 94 mm Tube Axial Fan 230 VAC Dual Ball Bearing 328CFM 55dBA Terminals

Features

  • Voltage Rating: 230 VAC
  • Height: 254 mm
  • Width: 254 mm
  • Depth: 94 mm
  • Air Flow (CFM): 328
  • Bearing: Dual Ball
  • Current Rating: 140 mA
  • Power Rating: 33 W
  • Agency Approvals: UL, CUL, TUV
  • Noise (dBA): 55
  • Termination: Terminals
  • Product Type: Louvered Filter Fan Guard Kit with Fan
  • Speed: 1650 rpm
  • IP Rating: IP54
  • Maximum Pressure: 0.39 in.
  • Additional Features: Die Cast Aluminum Frame Black, PBT Impeller, Louvered Filter Kit, Class B Insulation, Slide Guard
  • Motor Drive Type: Capacitor Drive, Thermally Protected

Overview

Fans are a necessary component when you need to keep electronics cool or to keep the air flow moving. The Dual Ball bearing system of the tube axial fan is designed to operate up to 1650 rpm.

,
