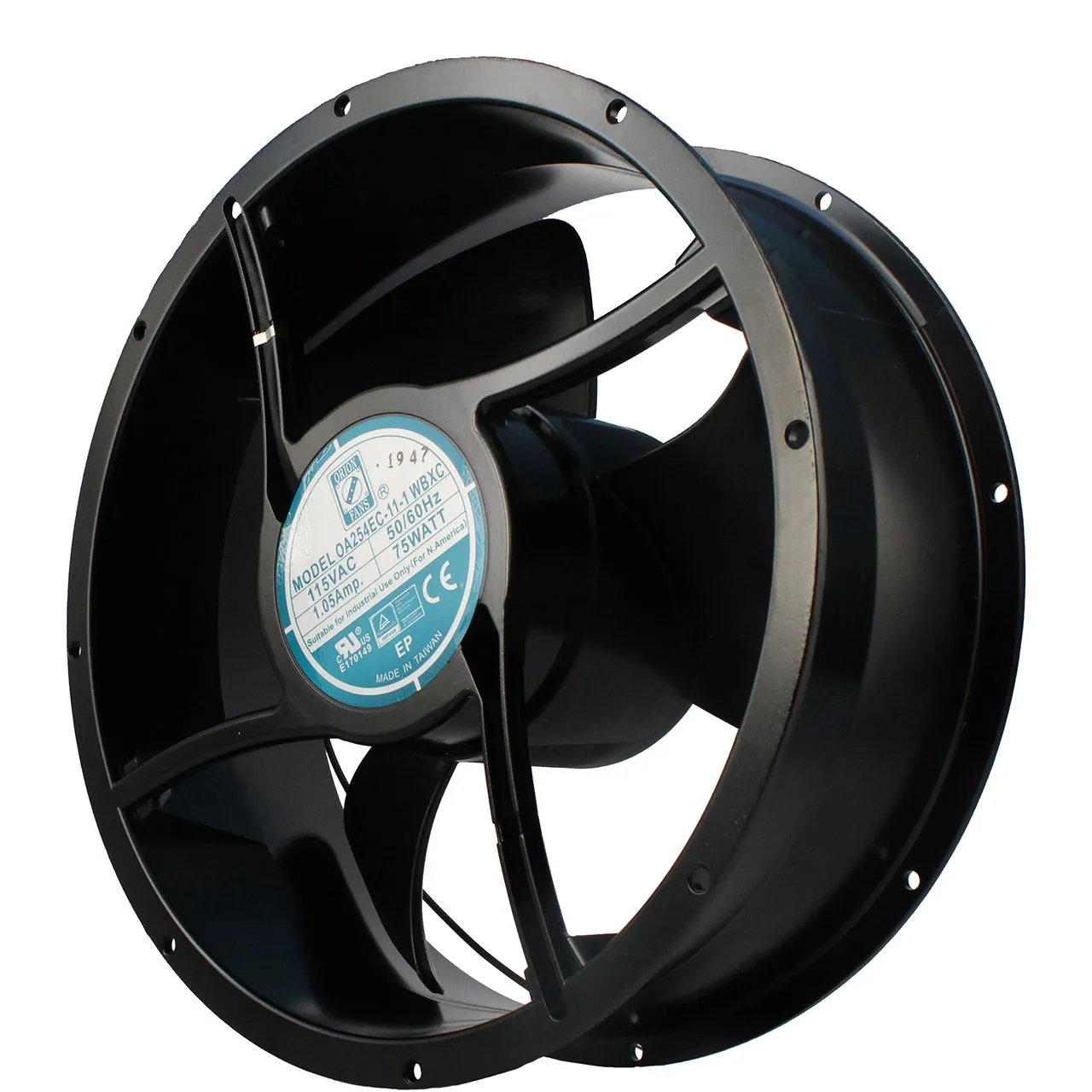

254 mm x 254 mm x 89 mm Tube Axial Fan 115 VAC Ball Bearing 830CFM 70.1dBA Terminals

Orion Fans

Jameco Part #:

Manufacturer #:

Primary datasheet

Product Price:

$139.950

In Stock: 0

Quantity	Unit Price	You Save	Discount
1+	$139.950	-	-
5+	$128.950	11.00	7.86%
25+	$118.950	21.00	15.01%

Features

Voltage Rating: 115 VAC
Height: 254 mm
Width: 254 mm
Depth: 89 mm
Air Flow (CFM): 830
Bearing: Ball
Current Rating: 652 mA
Power Rating: 75 W
Agency Approvals: UL, CUL, TUV
Noise (dBA): 70.1
Termination: Terminals
Product Type: 254mm x 254mm AC Fan
Speed: 2750 rpm
Maximum Pressure: 1.2 in.
Motor Drive Type: Brushless EC, Auto Cutoff, Auto Restart, Electronically Protected

Overview

Fans are a necessary component when you need to keep electronics cool or to keep the air flow moving. The Ball bearing system of the tube axial fan is designed to operate up to 2750 rpm.
