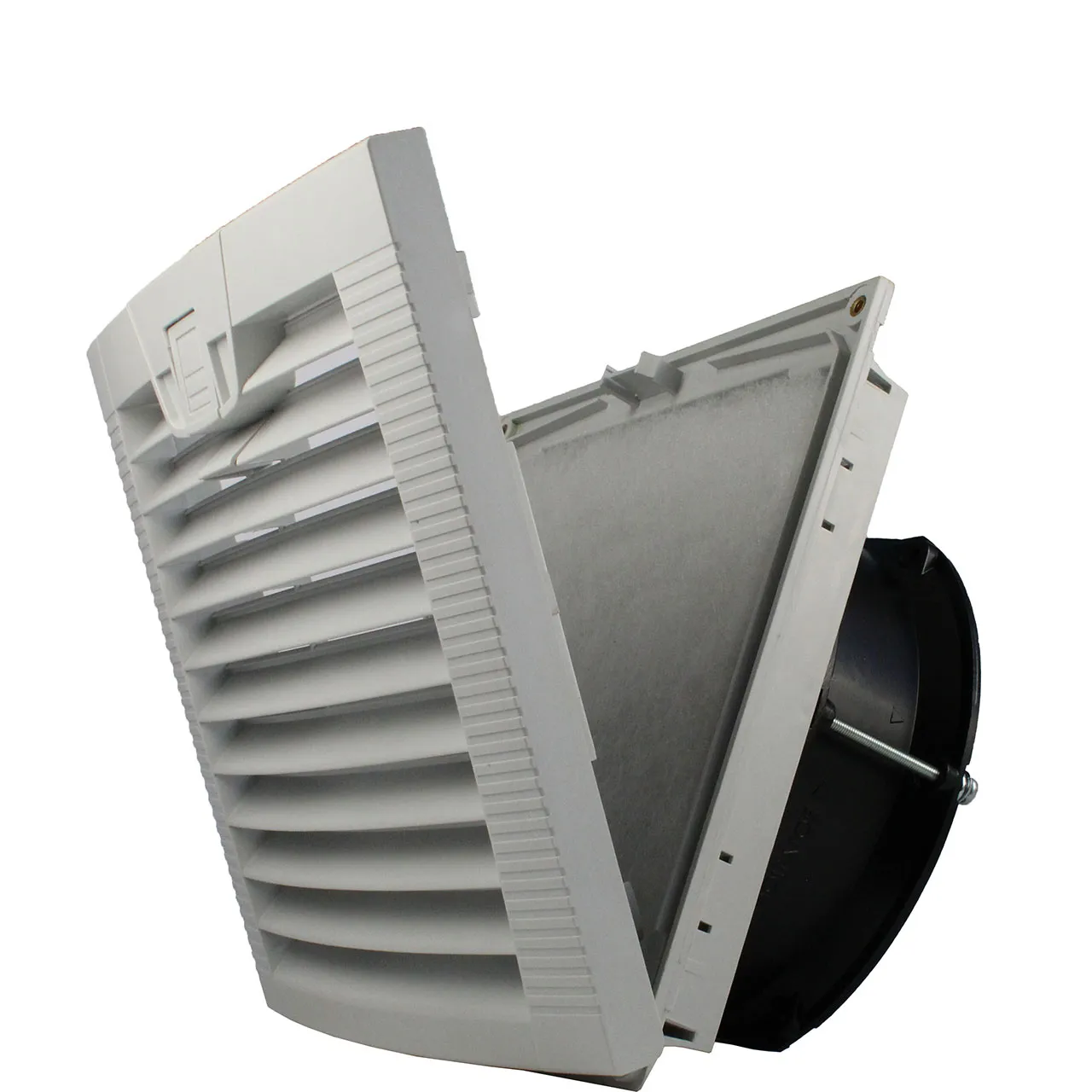

254 mm x 254 mm x 105 mm Tube Axial Fan 230 VAC Dual Ball Bearing 328CFM 55dBA Terminals

Features

  • Voltage Rating: 230 VAC
  • Height: 254 mm
  • Width: 254 mm
  • Depth: 105 mm
  • Air Flow (CFM): 328
  • Bearing: Dual Ball
  • Current Rating: 140 mA
  • Power Rating: 33 W
  • Agency Approvals: UL, CUL, TUV
  • Noise (dBA): 55
  • Termination: Terminals
  • Product Type: Louvered Filter Fan Guard Kit with Fan
  • Speed: 1650 rpm
  • IP Rating: IP54
  • Maximum Pressure: 0.39 in.
  • Additional Features: Die Cast Aluminum Frame Black, PBT Impeller, Louvered Filter Kit, Class B Insulation
  • Motor Drive Type: Capacitor Drive, Thermally Protected

Overview

Fans are a necessary component when you need to keep electronics cool or to keep the air flow moving. The Dual Ball bearing system of the tube axial fan is designed to operate up to 1650 rpm.

Product Identification

Additional Feature:Die Cast Aluminum Frame Black, PBT Impeller, Louvered Filter Kit, Class B Insulation
Product Type:Louvered Filter Fan Guard Kit with Fan

Compliance

RoHS Status:ROHS Compliant
Compliance:Compliance Docs
Agency Approvals: CUL, TUV, UL

Dimensions & Appearance

Depth:105 mm
Height:254 mm
Width:254 mm

Features

Bearing:Dual Ball
Noise (dBA):55
Speed:1650 rpm
IP Rating:IP54
Maximum Pressure:0.39 in.
Motor Drive Type:Capacitor drive, Thermally Protected
Voltage Rating:230 VAC
Air Flow (CFM):328
Termination:Terminals
Power Rating:33 W
Current Rating:140 mA
,
