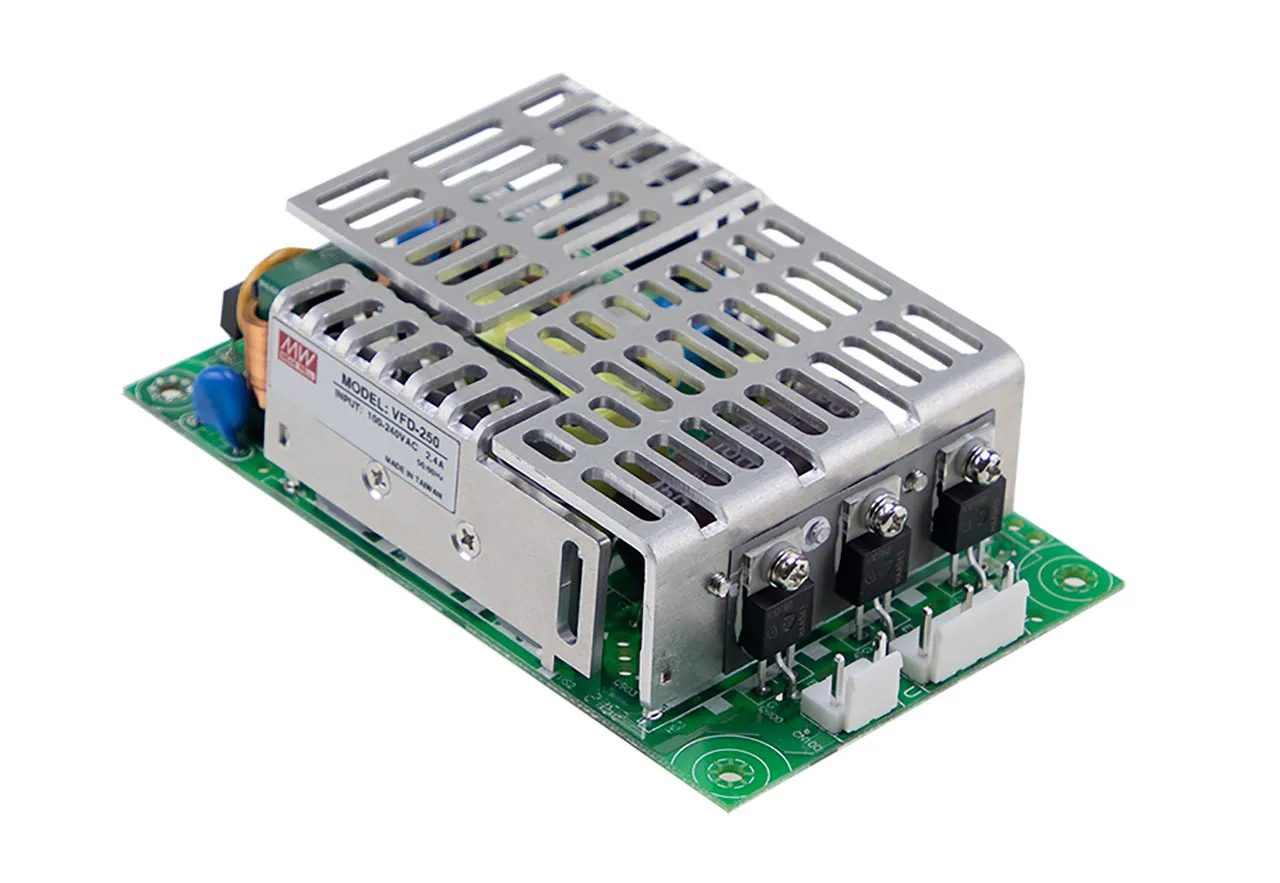

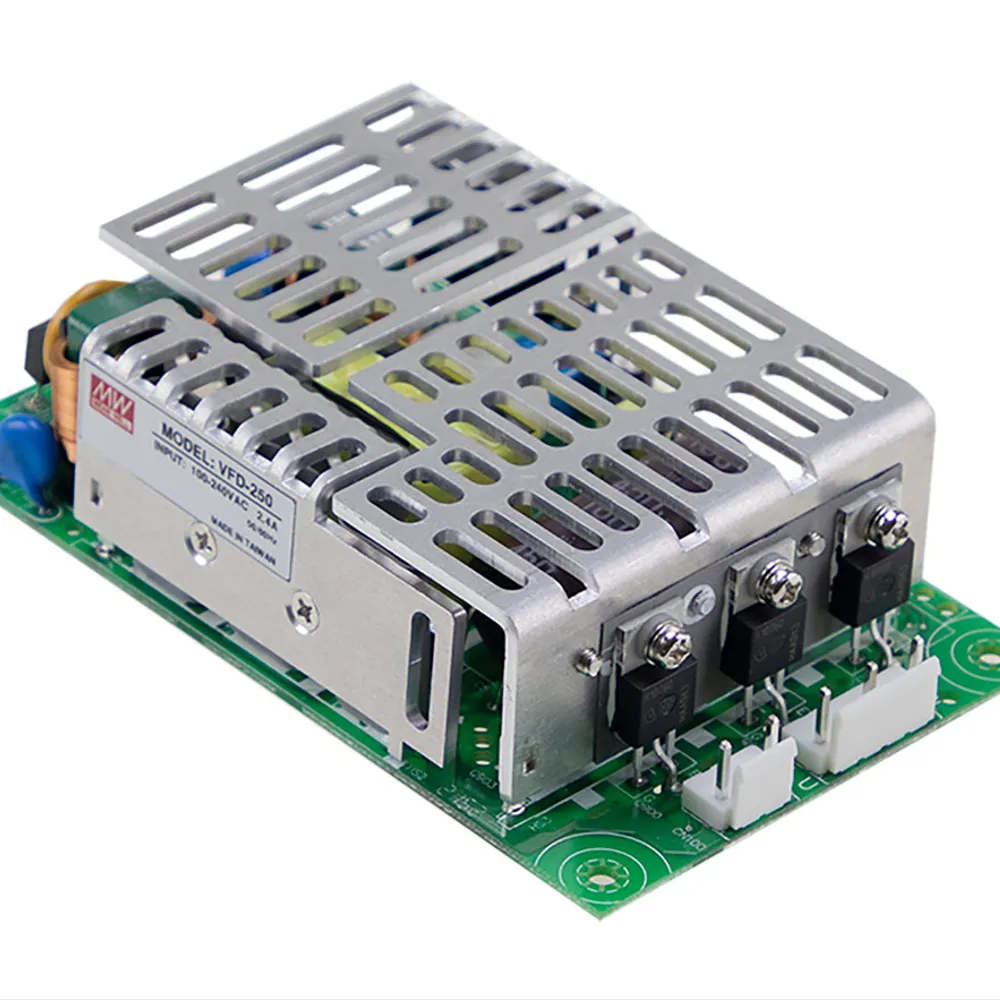

250W General Type Open-Frame Variable Frequency Drive with PFC Function for 200-240V Motor
Features
- 5" x 3" miniature size
- Universal AC input: 90 to 264 VAC with built-in PFC function
- Controllable with external controller
- Fanless design for no-noise and extended life cycle
- High surge current of 200% for up to 5 seconds
- Protections: Short circuit, over current
- Provides multiple sensors for control:
- Current sensor - motor torque control
- DC bus voltage sensor - OVP/UVP
- Temperature sensor - OTP
- -30 to +70°C wide operating temperature range
- Suitable for three phase motor drive (BLDC, Induction motor, SynRM)
- 3-year warranty
Overview
The VFD-250P-230 is a variable frequency drive that can be controlled with external PWM controller. The input range is from 90 VAC to 264 VAC and compact size of 5x"3" makes is suitable for a multitude of installations. This VFD can deliver 200% peak load and is of a fanless design. It is well suited for three-phase motor drive such as BLDC, induction motor, and SynRM applications.
Technical Specifications
- Output voltage range: Three-phase line-to-line 0-240V, suited for 200-240V class motor
- Output Capacity: 250 W
- Rated Current: 1 A (convection); 1.6 A (15 CFM)
- Power: 250 W (convection); 400 W (15 CFM)
- Peak Current: 2 A
- DC Bus Voltage: 380 VDC ±5
Applications
- HVAC
- Fan
- Pump
- Automatic door
- Air conditioning
- Conveyor
- Medical device
- Fitness equipment
