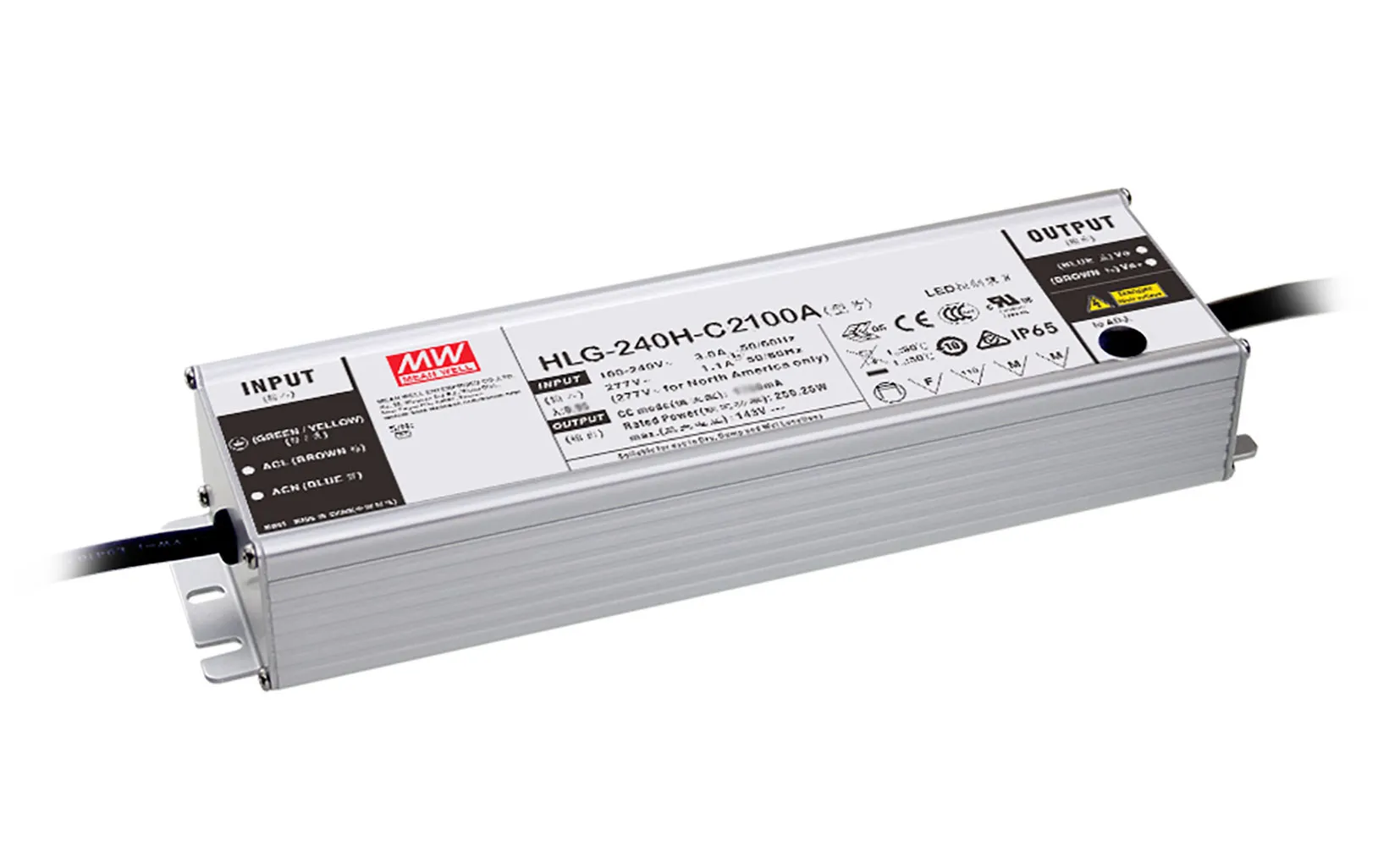

250W 2100mA Single Output LED Power Supply

2.1A @ 59-119VDC

Features

  • "A" model - Output voltage and constant current level can be adjusted through internal potentiometer
  • Constant current design
  • Universal AC input / Full range (up to 305VAC)
  • Built-in active PFC function
  • High efficiency up to 93+%
  • -40°C to +70°C wide operating range
  • Protections: Short circuit / Over voltage / Over temperature
  • Cooling by free air convection
  • IP65 design for indoor or outdoor installations
  • Type HL LED Driver for use in Class I, Division 2 hazardous(Classified) location luminaires
  • Suitable for dry / damp / wet location
  • 7 years warranty

    Applications

    • LED street lighting
    • LED fishing lamp
    • LED harbor lighting
    • LED building architectural lighting
    • LED greenhouse lighting
    • LED bay lighting
    • Class I, Division 2 hazardous (Classified) location luminaires

        • Overview

Product Identification

Manufacturer Series:HLG-240H-C
Product Type:Auto Switching SMPS

Compliance

Agency Approvals:UL, CUL, CB, CE, EN, ENEC, EAC, CCC

Dimensions & Appearance

Style:Enclosed
Color:Silver
Height:1.53 in.
Width:2.68 in.
Length:9.61 in.

Operating conditions

Minimum Operating Temperature:-40°C
Maximum Operating Temperature:90°C

Input

Input Frequency:47 Hz to 63 Hz
Input Voltage:90 VAC to 305 VAC
Maximum Input Current:2.5 A

Output

Number of Outputs:1
Output Connector Type:Stripped and Tinned
Output Voltage:See Output Range
Output Range:59 VDC to 119 VDC
Output Current:2.10 A

Features

PFC Function:Yes
Minimum Isolation Voltage:3750V
IP Rating:IP65
Efficiency:93.5%
Power Rating:249.9 W
,
