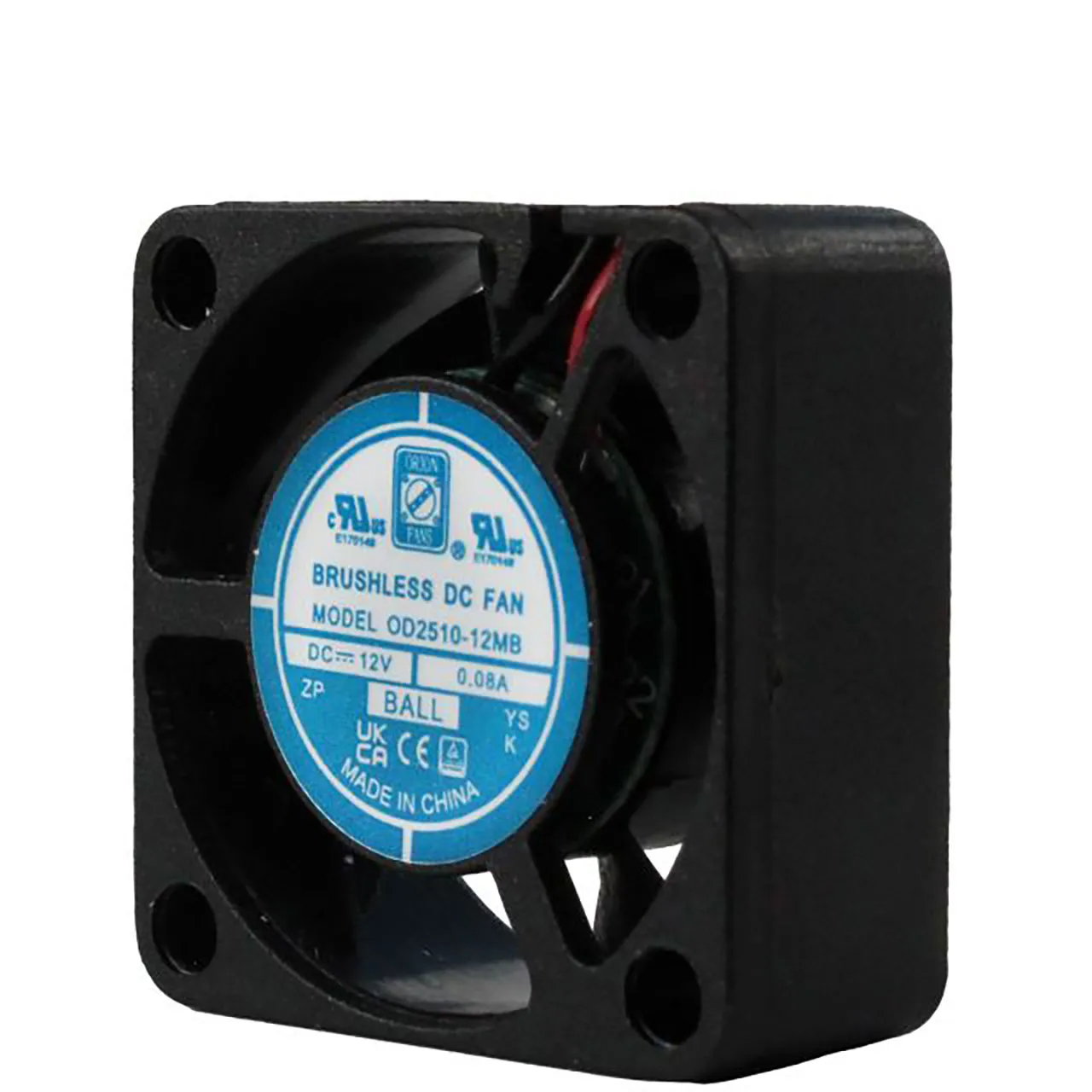

25 mm x 25 mm x 10 mm Tube Axial Fan 12 VDC Ball Bearing 2.7CFM 31dBA 12" Wires (3)

Features

  • Voltage Rating: 12 VDC
  • Height: 25 mm
  • Width: 25 mm
  • Depth: 10 mm
  • Air Flow (CFM): 2.7
  • Bearing: Ball
  • Current Rating: 90 mA
  • Power Rating: 1.08 W
  • Agency Approvals: UL, CUL, TUV, CE, UKCA
  • Noise (dBA): 31
  • Termination: 12" Wires (3)
  • Product Type: 25mm x 25mm DC Fan
  • Speed: 12000 rpm
  • Maximum Pressure: 0.23 in.
  • Additional Features: Open Collector Tach Output
  • Motor Drive Type: Brushless DC, Auto Cutoff, Auto Restart, Electronically Protected, Polarity Protected

Overview

Fans are a necessary component when you need to keep electronics cool or to keep the air flow moving. The Ball bearing system of the tube axial fan is designed to operate up to 12000 rpm.

,
