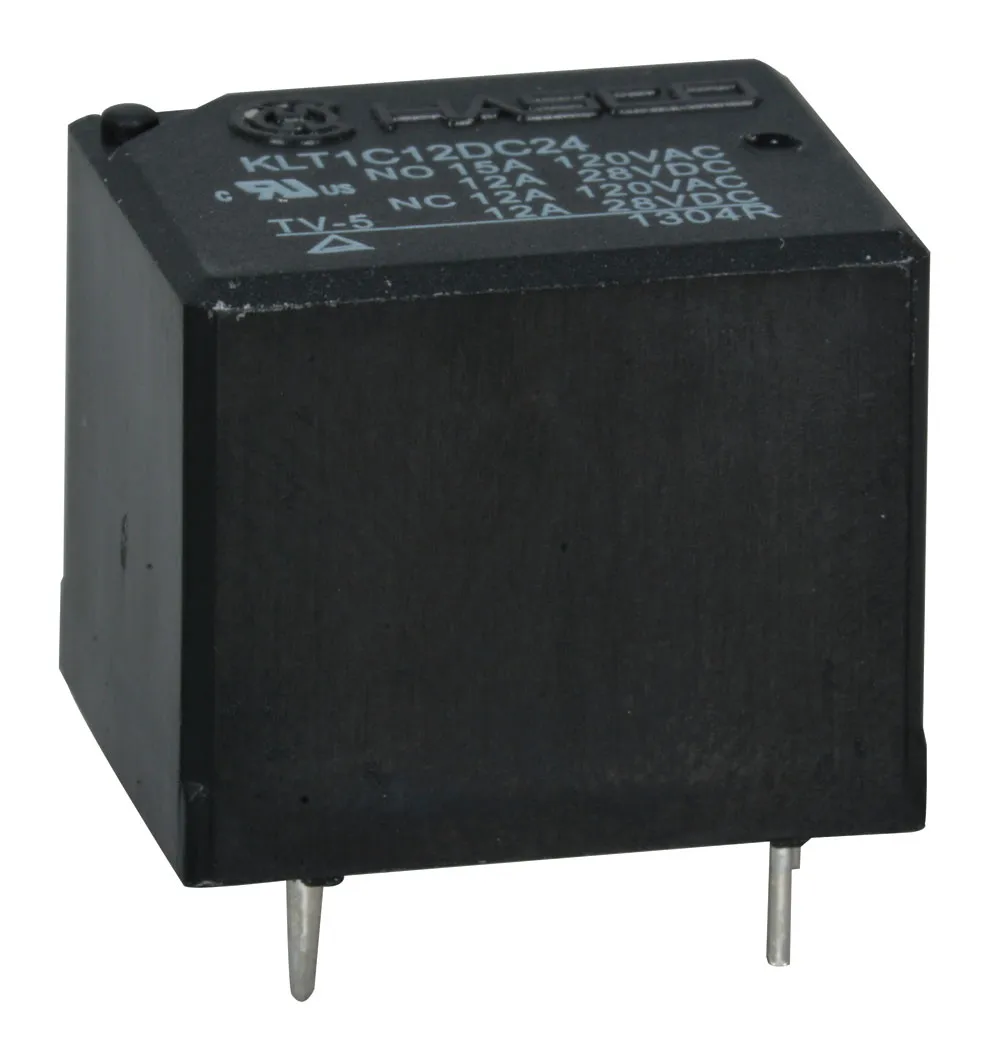

24VDC SPDT 1 Form C 1600Ω Coil Miniature Relay

Non-Latching

Specifications

  • Manufacture: Hasco
  • Manufacturer P/N: KLT1C12DC24
  • Mounting: Through Hole, PC pins
  • Coil Voltage: 24 VDC
  • Coil Resistance: 1600Ω, ±10%
  • Rated Coil Power: 360 mW
  • Contact Ratings: 12 Amps @ 120VAC/28VDC
  • Max Switching Voltage: 277 VAC & 125 VDC
  • Contact Material: Silver Cadmium Oxide
  • Service Life: 10 Million Operations

Dimensions & Appearance

Height:0.61 in.
Width:0.61 in.
Length:0.74 in.

Features

Coil Voltage:24 VDC
Coil Current:N/A
Contact Form:SPDT
Termination:5-Pin
Coil Resistance:1600 Ohm
Current Rating:12 A
,
