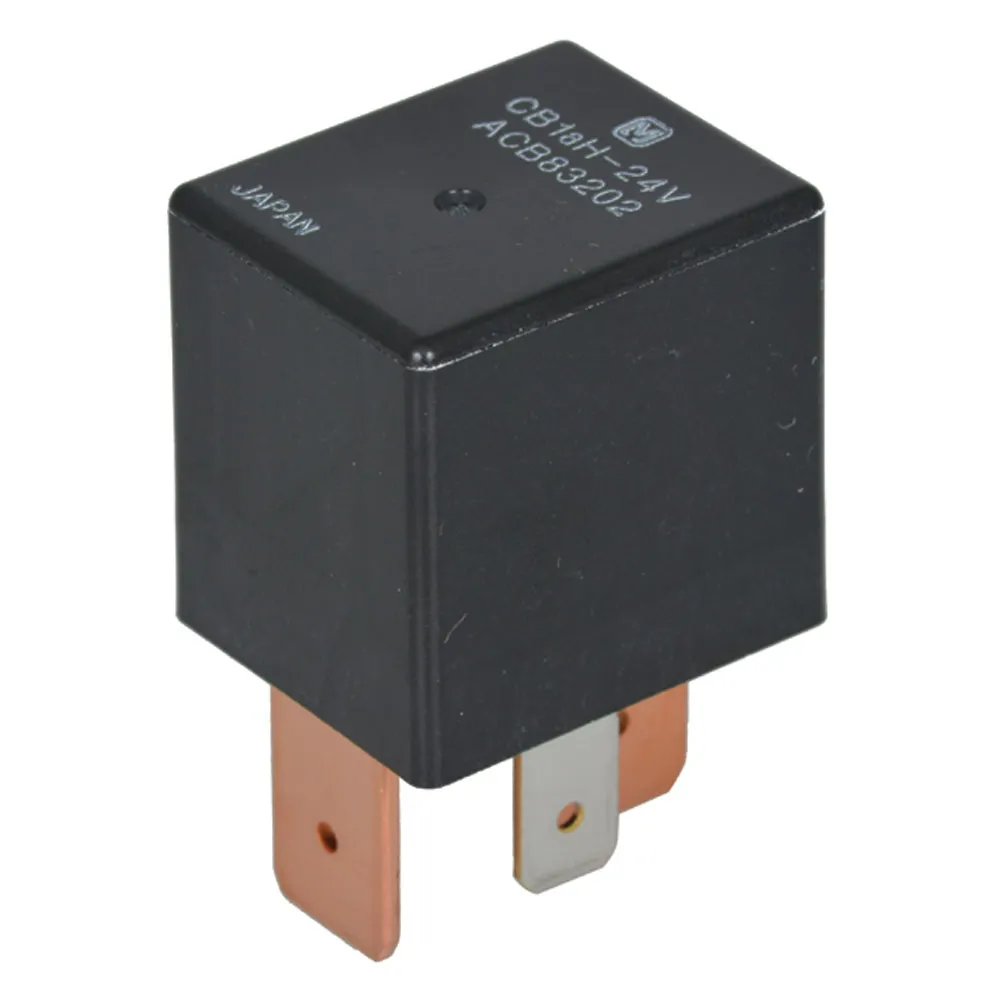

24VDC Mini-ISO Automotive Relay

This relay has a Mini-ISO (International Organization for Standardization) terminal arrangement.

  • Relay is compact and high capacity (40A)
  • Compact form factor with space saving (22 x 26 mm) small base area thanks to integrated bobbin and base construction.
  • Contact form: 1a (1 Form A)
  • Contact rating: 40A, 14VDC (initial),
  • Mounting classification: Plug-in type
  • Coil resistance: 320 Ω
  • Usable voltage range: 20 to 32 VDC
  • Nominal operating power: 1.8 watts

    Applications

  • Automobiles (headlights, cell motors, air conditioners, ABS, EPS, etc.)
  • Construction equipment
  • Agricultural equipment (conveyer, etc.)

    • Product Identification

    Product Type:Automotive Relay

    Features

    Pins:4
    Coil Voltage:24 VDC
    Coil Resistance:320 Ohm
    Contact Form:SPST-NO
    Current Rating:40 A
    ,
