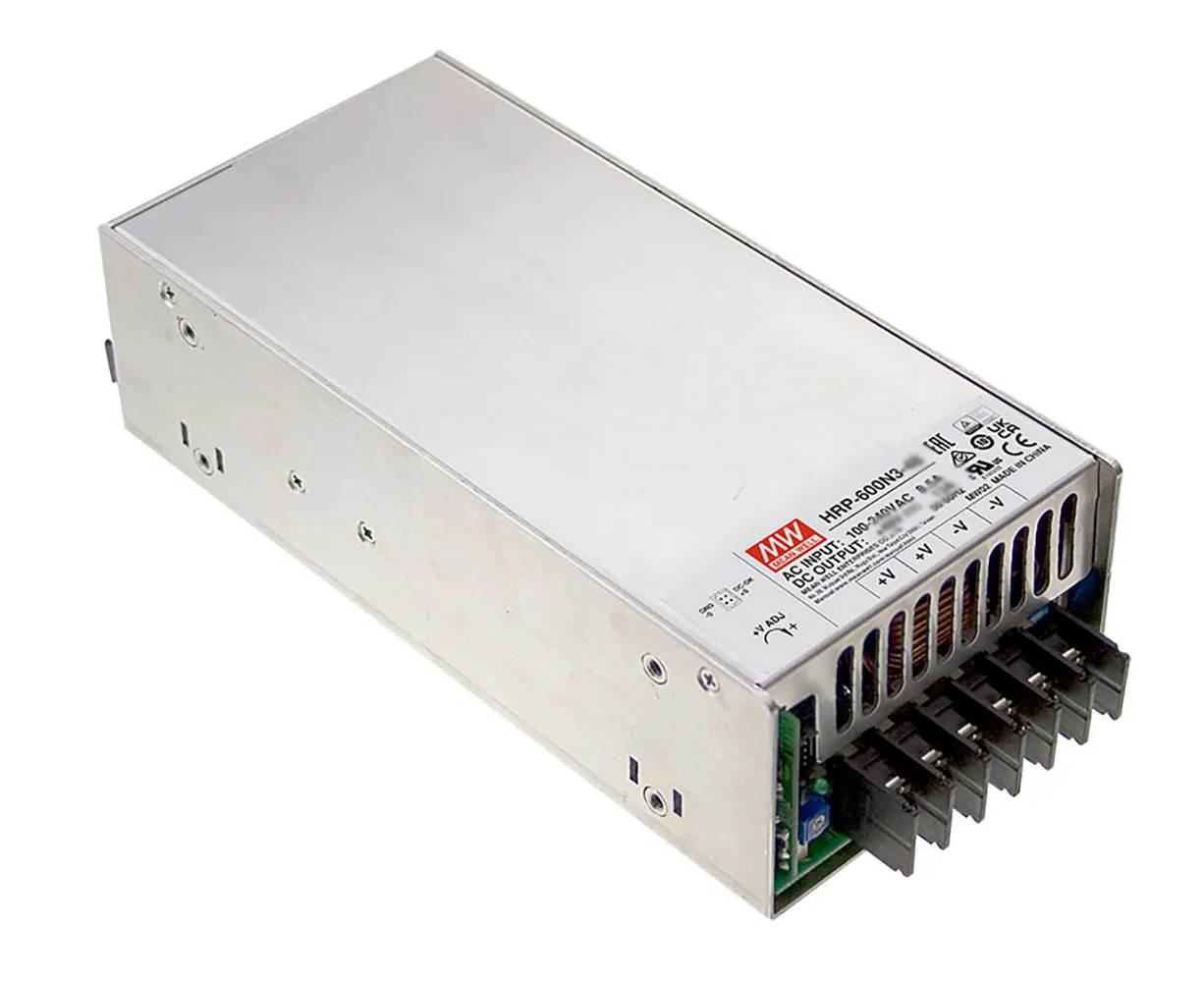

24VDC 27A 648W Single Output Enclosed Ultra-High Peak Power Supply with PFC Function
Find out more about MEAN WELL's 350% High Peak Power, Reliable and Durable, Industrial Power Supply.Features
- Universal AC input, Full range
- Built-in active PFC function, PF>0.94 (0.98 @ 115 VAC)
- Built in constant current limiting circuit
- 350% peak power capability
- Withstand 300VAC surge input for 5 seconds
- Protections: Short circuit, overload, over voltage, over temperature
- Fanless design, cooling by free air convection
- Built-in remote sense function
- Built-in DC OK signal
- Built-in cooling fan ON-OFF control
- Operating altitude up to 5000 m
- Output voltage adjustable ±15% (avg.)
- 5 year warranty
Specifications
- Output voltage: 24 VDC
- Output current: 27 A
- Output power: 648 W
- Input voltage: 85 to 264 VAC @ 47 to 63 Hz; 3.5A (115VAC)
- Efficiency: 88%
- PFC function: Yes
- Size: 8.58"L x 4.13"W x 2.42"H (218 mm x 105 mm x 61.5 mm)
- Case color: Silver
- Agency approvals: UL, CUL, TUV, CB, CE, EN, EAC, AS/NSZ
Applications
- Industrial automation machinery
- Industrial control systems
- Mechanical and electrical equipment
- Diagnostic or biological facilities
- Test or measurement systems
- Telecommunication equipment
Product Identification
Type:Auto Switching SMPS
Manufacturer Series:HRP-600N3
Compliance
Agency Approvals: CB, CE, CUL, EAC, EN, TUV, UKCA, UL
Dimensions & Appearance
Style:Enclosed
Color:Silver
Height:2.42 in.
Width:4.13 in.
Length:8.58 in.
Operating conditions
Minimum Operating Temperature:-40°C
Maximum Operating Temperature:70°C
Input
Input Frequency:47 Hz to 63 Hz
Input Voltage:85 VAC to 264 VAC
Maximum Input Current:7.6 A
Output
Number of Outputs:1
Output Voltage (Channel 1):24 VDC
Output Connector Type:Screw Terminal Block
Output Voltage:24 VDC
Output Current (Channel 1):27 A
Output Current:27 A
Features
PFC Function:Yes
Minimum Isolation Voltage:3000V
Efficiency:88%
Power Rating:648 W
