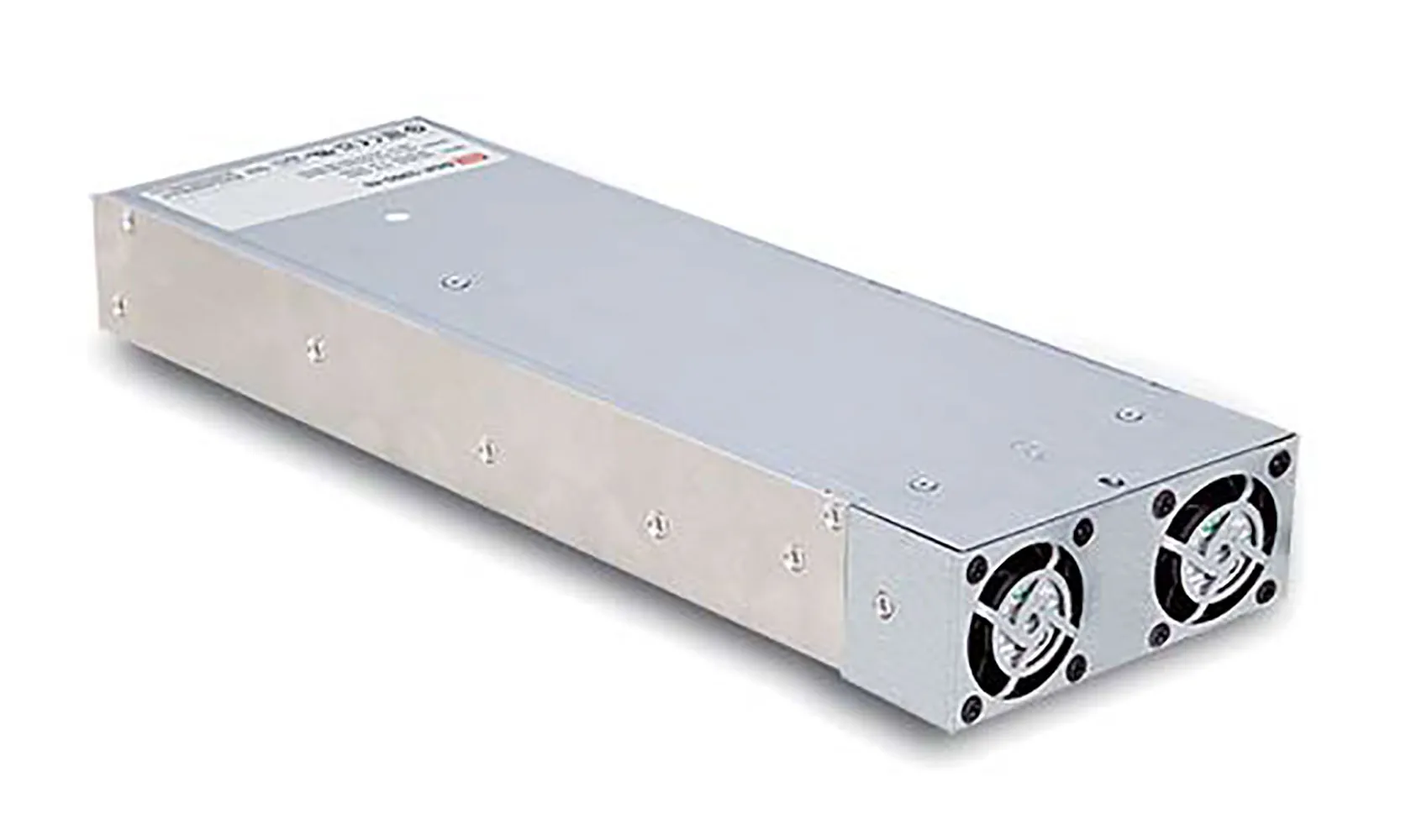

24VDC 133A 3192W Single Output Enclosed Switching Power Supply with PFC Function

Features

  • Universal AC input, Full range
  • Built-in active PFC function, PF>0.97 (230 VAC)
  • Forced air cooling by built-in DC fan
  • Output voltage level programmable
  • Built-in remote ON-OFF control, remote sense, auxiliary power, and DC OK signal
  • Protections: Short circuit, overload, over voltage, over temperature
  • 1U low profile (41mm)
  • Design refers to SEMI F47
  • Optional conformal coating (call for details)
  • 5-year warranty

Specifications

  • Output voltage: 24 VDC
  • Output current: 133 A
  • Output power: 3192 W
  • Input voltage: 90 to 264 VAC @ 47 to 63 Hz; 17A (230VAC)
  • Efficiency: 93.5%
  • PFC function: Yes
  • Size: 12.8"L x 4.21"W x 1.61"H (325.8 mm x 107 mm x 41 mm)
  • Case color: Silver
  • Agency approvals: UL, CUL, TUV, CB, CE, EN, EAC, UKCA

Applications

  • Factory control or automation apparatus
  • Test and measurement instrument
  • Laser related machine
  • Aging facility
  • Digital broadcasting
  • Constant current source

Product Identification

Type:Auto Switching SMPS
Manufacturer Series:NSP-3200

Compliance

Agency Approvals: CB, CE, CUL, EAC, EN, TUV, UKCA, UL

Dimensions & Appearance

Style:Enclosed
Color:Silver
Height:1.61 in.
Length:12.8 in.
Width:4.21 in.

Operating conditions

Minimum Operating Temperature:-20°C
Maximum Operating Temperature:70°C

Input

Input Frequency:47 Hz to 63 Hz
Input Voltage:90 VAC to 264 VAC
Maximum Input Current:17 A

Output

Number of Outputs:1
Output Voltage (Channel 1):24 VDC
Output Connector Type:Lug Terminal Female
Output Voltage:24 VDC
Output Current (Channel 1):133 A
Output Current:133 A

Features

PFC Function:Yes
Minimum Isolation Voltage:3000V
Efficiency:93.5%
Power Rating:3192 W
,
