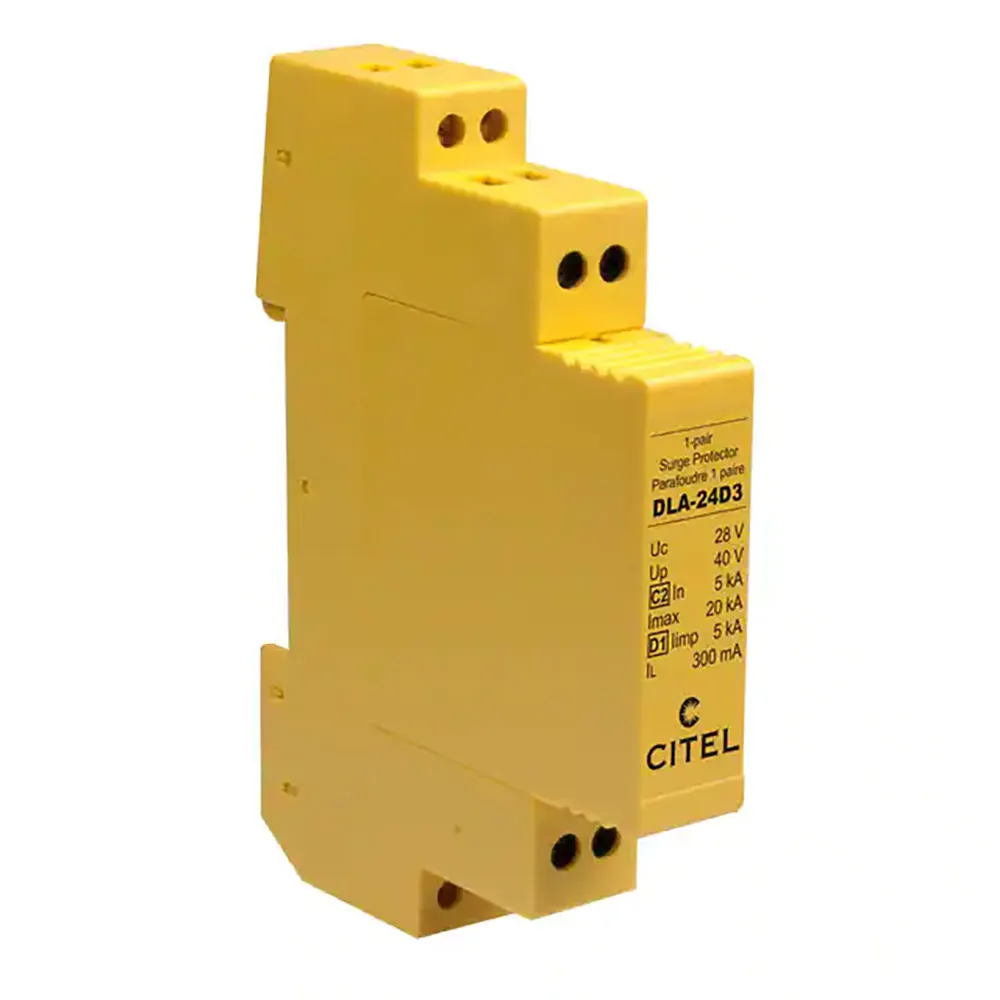

24V Modular Data Line Single Channel DIN Rail Surge Protection Device 20kA Surge

Specifications

  • Max Load Current (IL): 300 mA
  • Power SPD Type: UL497B
  • Volts (V): 24
  • Wires: 2W+Shield+Ground
  • Line Current Max (A): 0.3
  • Ambient Min (C): -50
  • Ambient Max (C): +85
  • Residual Voltage (V): 40
  • MCOV (V): 28/72/72
  • IN (kA): 10
  • SCCR (kA): n/a
  • IMAX (kA): 20
  • Limp (kA): 5
  • Data Speed (bps): 10/100
  • Frequency (MHz): >3
  • Insertion Loss (@ Freq)(db): <1
  • Capacitance (pF): <50
  • Technology: Hybrid SAD-GDT
  • Network Configuration: 1 Channel (2W+Shield+G
  • Connection Method: Screw Terminal (16-22 AWG)
  • Mounting: DIN Rail
  • Material: Thermoplastic UL94-V0
  • NEMA Rating (IP Rating): NEMA 2 (IP20)
  • Dimensions: See diagram (mm)
  • Weight: 0.30 lbs.

Compliance

Agency Approvals:UL

Dimensions & Appearance

Depth:65 mm
Width:13 mm
Height:90 mm
Mounting Type:DIN Rail

Features

IP Rating:IP20
Surge Current Rating:20 kA
Technology:SAD-GDT
Protection Style:N/A
Current Rating:0.3 A
Voltage Rating:24 V
,
