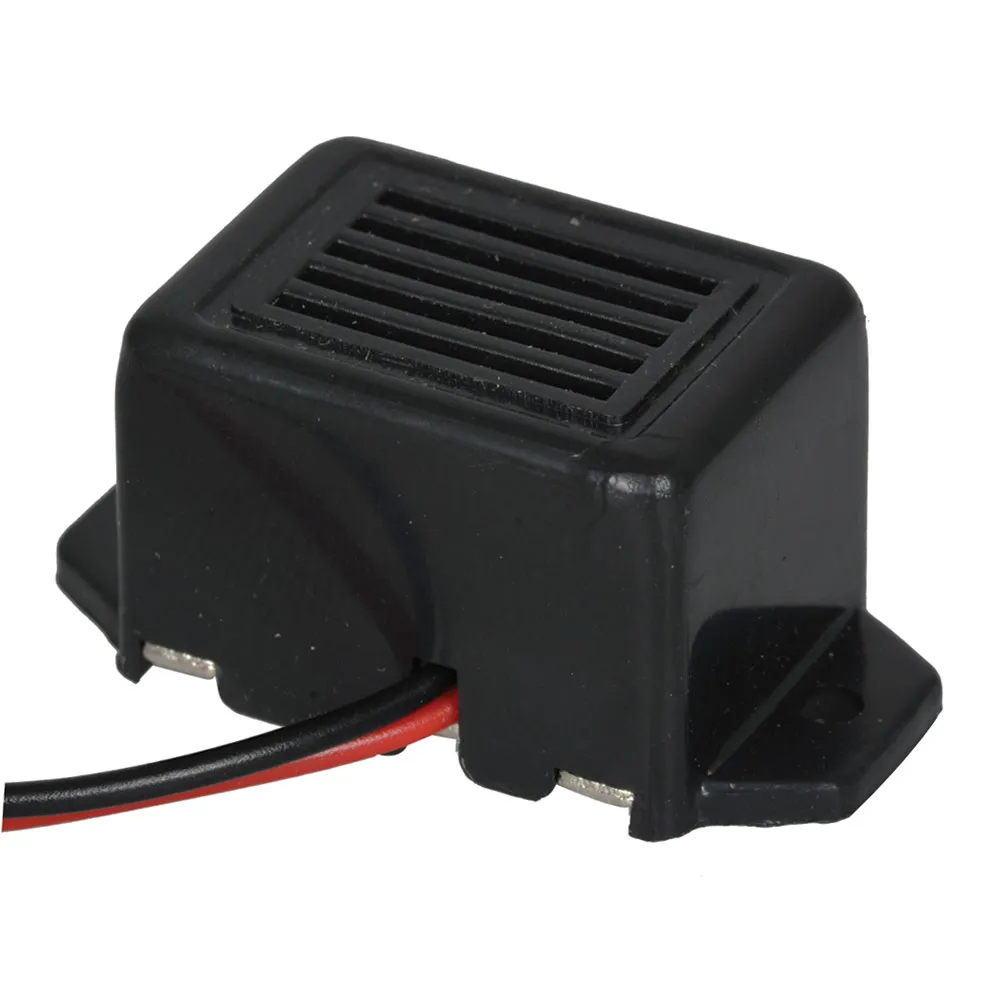

24V DC Single Tone Mechanical Buzzer with 4.7" Wires

Features

  • Buzzer with built-in oscillator
  • Flange mounting
  • ABS case

    Specifications

  • Tone type: single
  • Operating voltage: 18-28V DC
  • Rated voltage: 24V DC
  • Current consumption: 30 mA
  • Osc. frequency: 300-500Hz
  • Sound pressure: 85 dB
  • Connector type: leads
  • Body color: black
  • Weight: 0.35oz

    • Dimensions & Appearance

    Diameter:0.59 in
    Height:0.92 in.
    Size (H" x Dia."):0.92 x 0.59
    Mounting:Panel Mount

    Operating conditions

    Minimum Operating Temperature:-10°C
    Maximum Operating Temperature:60°C

    Input

    Input Voltage:24 V

    Output

    Output:85 dBA

    Features

    Tone Mode:Single
    Technology:Mechanical
    Voltage Range (Vp-p):18-28
    Frequency:400 Hz
    Frequency Range:300 Hz to 500 Hz
    Termination Style:Wire Lead
    Current Rating:30mA
    ,
