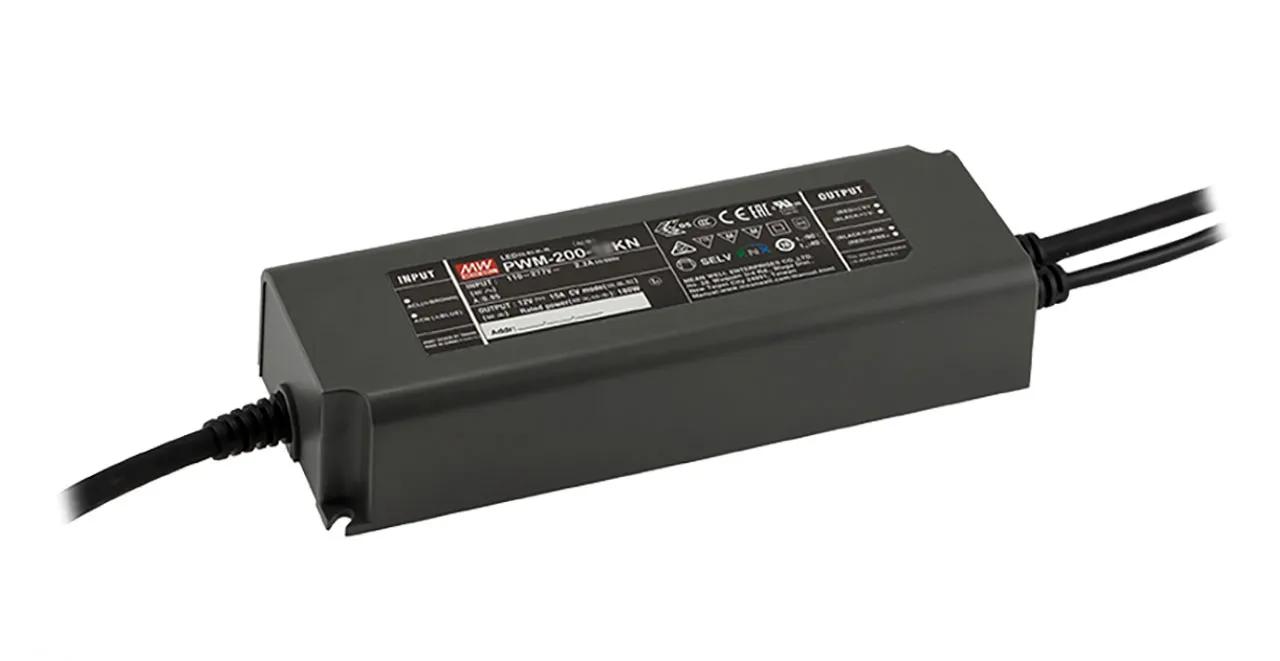

24V 8.3A 199.2W Constant Voltage PWM Output KNX LED Driver

Features

  • Constant voltage PWM style output with frequency up to 4kHz compliant IEEE1789-2015 and EU Ecodesign SVM requirement
  • Minimum dimming level 0.01%
  • Output Connector: Stripped and tinned wires
  • Plastic housing Class II power unit, no FG
  • Built-in active PFC function
  • Standby power consumption <0.5W
  • Support KNX Data Secure
  • No need KNX-DALI gateway
  • Typical lifetime >50,000 hrs
  • 5-year warranty

Specifications

  • Voltage Rating: 24 VDC
  • Current Rating: 8.3 A
  • Power Rating: 199.2 W
  • Input Voltage: 100 VAC to 305 VAC @ 47 to 63 Hz; 2.2A (115VAC), 1.1A (230VAC), 0.9 A (277VAC)
  • Efficiency: 93% (230VAC)
  • Size: 7.68"L x 2.68"W x 1.56"H (195 x 68 x 39.5mm)
  • Agency Approvals: UL (E334687 Tyle HL), CUL, CB, CE, EN, EAC, ENEC, CCC, SELV, UKCA

Applications

  • LED strip lighting
  • Indoor LED lighting
  • LED decorative lighting
  • LED architecture lighting
  • Cove lighting
  • Type "HL" for use in Class I, division 2 hazardous (classified) location
  • Industrial lighting

Product Identification

Product Type:Auto Switching SMPS with KNX
Manufacturer Series:PWM-200

Compliance

Agency Approvals: CB, CCC, CE, CUL, EAC, EN, ENEC, SEKV, UKCA, UL

Dimensions & Appearance

Style:Fully Potted
Color:Black
Height:1.56 in.
Width:2.68 in.
Length:7.68 in.

Operating conditions

Minimum Operating Temperature:-40°C
Maximum Operating Temperature:85°C

Input

Input Frequency:47 Hz to 63 Hz
Input Voltage:100 VAC to 305 VAC
Maximum Input Current:2.2 A

Output

Number of Outputs:1
Output Connector Type:Stripped and Tinned
Output Voltage:24 VDC
Output Range:N/A
Output Current:8.30 A

Features

PFC Function:Yes
Minimum Isolation Voltage:3750V
IP Rating:IP67
Efficiency:93%
Power Rating:199.2 W
,
