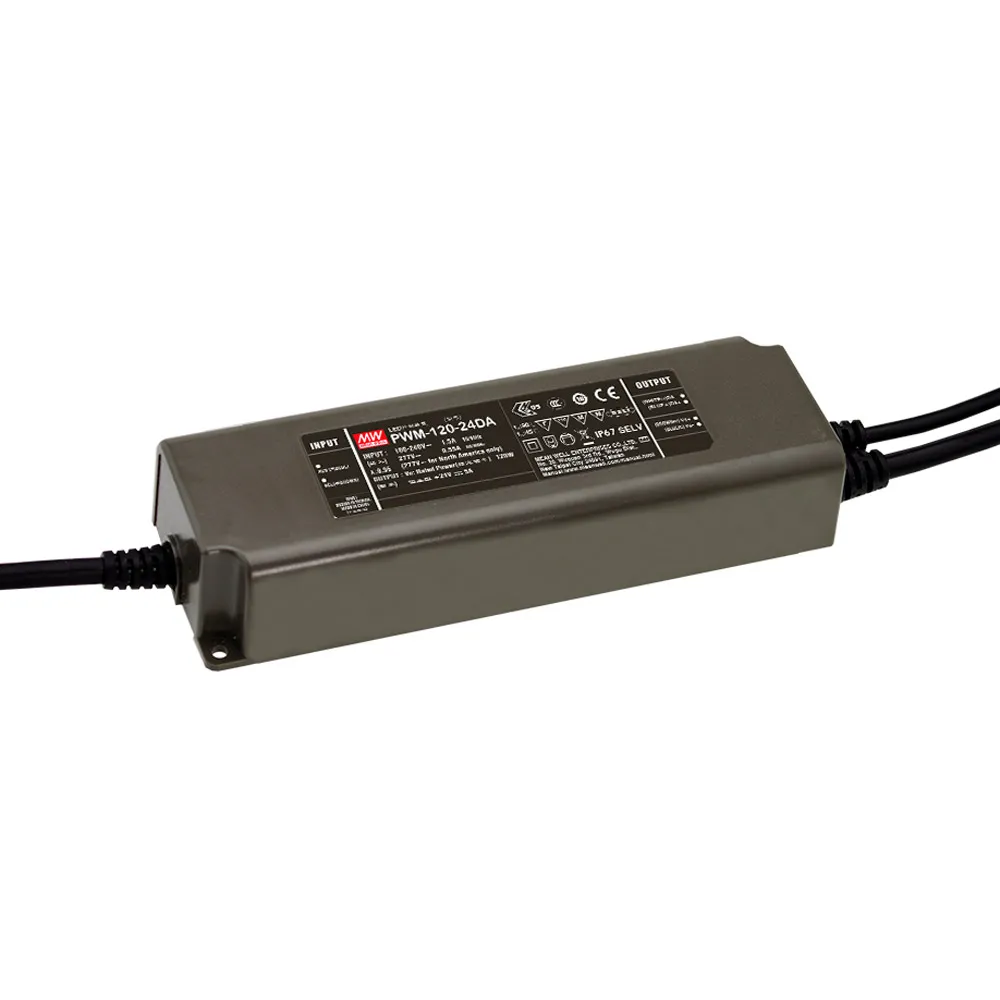

24V 5A 120W PWM Output LED Driver with DALI Control

24 Volts DC @ 5 Amps

Features

  • Constant voltage PWM style output with 1.47kHz frequency
  • Plastic housing with class II design
  • Built-in active PFC function
  • No load power consumption <0.5W / standby power consumption <0.5W
  • Fully encapsulated with IP67
  • Functions: DALI control technology
  • Typical lifetime >50,000 hours
  • 5 year warranty

Specifications

  • Input: 90-305 VAC @ 47-63 Hz
  • Efficiency: 90%
  • Dimensions: 7.52" x 2.48" x 1.48"

Product Identification

Product Type:Auto Switching SMPS DALI Control
Manufacturer Series:PWM-120

Compliance

Agency Approvals: CB, CCC, CE, CUL, EAC, EN, ENEC, UL

Dimensions & Appearance

Style:Enclosed
Color:Black
Height:1.48 in.
Width:2.48 in.
Length:7.52 in.

Operating conditions

Minimum Operating Temperature:-40°C
Maximum Operating Temperature:70°C

Input

Input Frequency:47 Hz to 63 Hz
Input Voltage:90 VAC to 305 VAC
Maximum Input Current:1.3 A

Output

Number of Outputs:1
Output Connector Type:Stripped and Tinned
Output Voltage:24 VDC
Output Range:N/A
Output Current:5 A

Features

PFC Function:Yes
Minimum Isolation Voltage:3750V
IP Rating:IP67
Efficiency:90.5%
Power Rating:120 W
,
