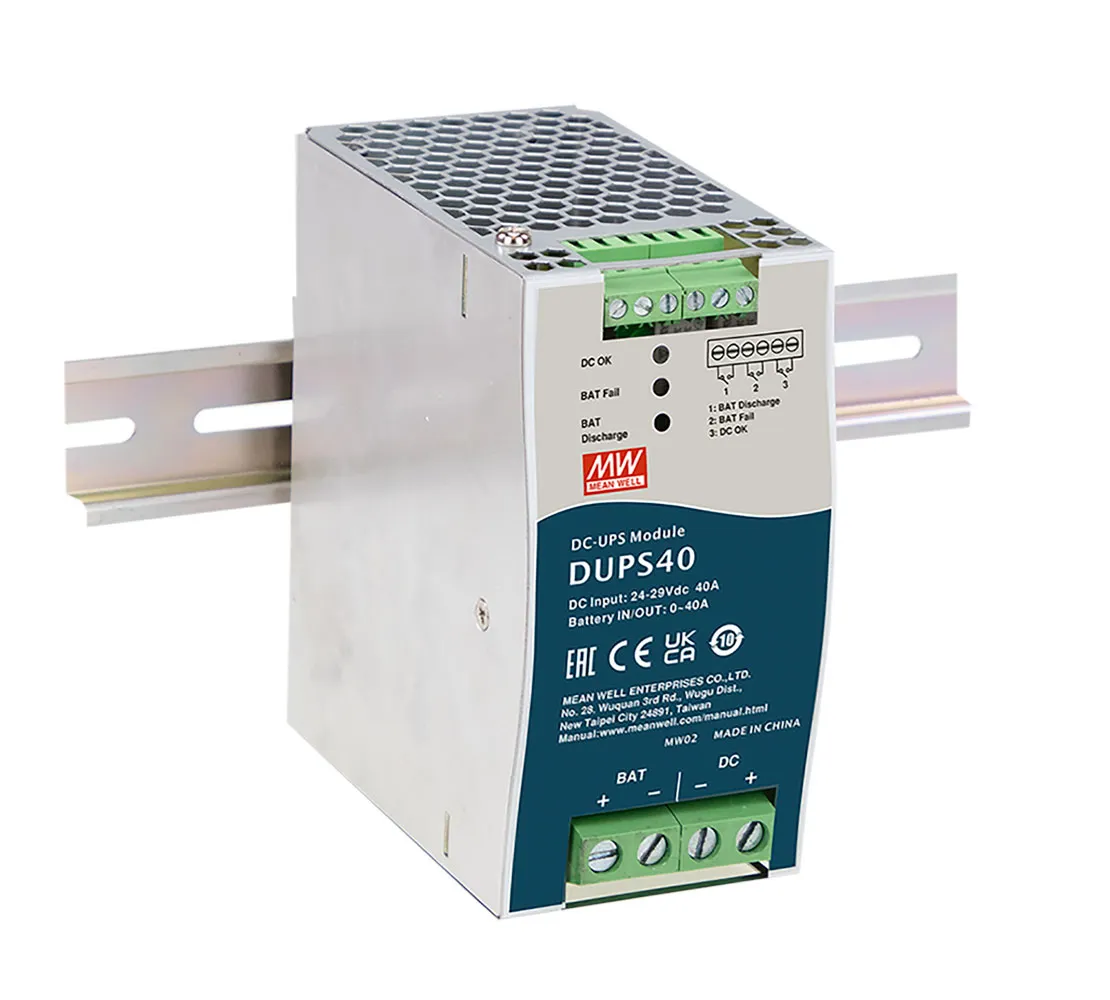

24V 40A Uninterruptible DC-UPS Controller Module DIN Rail Type

Features

  • Uninterruptible DC-UPS controller
  • Parallel connection to DC BUS (Power supply + DC-UPS Module + Batteries + Load)
  • Suitable for 24V systems, up to 40 A
  • 2 A battery charging current
  • Allows 4AH to 135AH lead-acid various battery capacities
  • Complete diagnostic and monitoring for DC BUS OK, battery discharge, battery fail
  • LED indicator for status
  • Protections: Battery reverse polarity & short circuit (by internal detection), battery discharge, over discharge current
  • Cooling by free air convection
  • 3 year warranty

Specifications

DC UPS Input:
  • Normal Input Voltage: 24 VDC
  • Input Voltage Range: 24 VDC to 29 VDC)
  • Rated Current: 40 A
DC UPS Output:
  • Voltage Range: 21 VDC to 29 VDC
  • Discharge Current Range: 0 to 40 A
  • Charging Current: 2 A
Battery
  • Normal Battery Voltage: 24 VDC (2 x 12 VDC in series or 1 x 24 VDC)
  • Battery Type: Lead-acid battery
  • External Battery Capacities: 4 AH to 135 AH
  • Size (mm): 63 W x 125.2 H x 113.5 D

Applications

  • Industrial control systems
  • Semiconductor fabrication equipment
  • Factory automation
  • Electromechanical apparatus

Product Identification

Additional Feature:UPS Controller
Product Type:UPS Module
Manufacturer Series:DUPS

Compliance

Agency Approvals:EN, EAC, CE, UKCA

Dimensions & Appearance

Weight:1.04 lbs.
Depth:4.47 in.
Width:2.48 in.
Height:4.93 in.
Mounting:DIN Rail

Operating conditions

Minimum Operating Temperature:-30°C
Maximum Operating Temperature:70°C

Input

Input Voltage:24 VDC
Input Voltage Range:24 VDC to 29 VDC
Maximum Input Current:40 A

Output

Number of Outputs:1
Output Connector Type:Screw Terminal Block
Output Voltage:21 VDC to 29 VDC
Output Current:40 A

Features

Charge Current:2 A
Battery Type:Lead-acid
Capacity:4 AH to 135 AH
,
