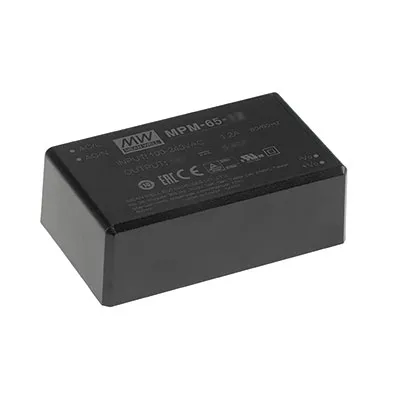

24V 2.71A 65W High Reliability 2xMOPP Encapsulated Green Medical Power Module PCB Mount

Features

  • 3.43" x 2.05" compact size
  • Medical safety approved (2x MOPP) according to ANSI/AAMI ES60601-1 and IEC/EN60601-1
  • Suitable for BF application with appropriate system considerations
  • No load power consumption <0.1W
  • Extremely low leakage current
  • Wide operating temperature range: -30 to +80°C
  • EMI class B without additional components
  • Isolation Class II
  • Protections: Short circuit, overload, over voltage
  • No minimum load required
  • Operating altitude up to 4000 meters
  • 71.5 W peak (10 sec.)
  • 3 year warranty

Specifications

  • Rated Voltage: 24 VDC
  • Rated Current: 2.71 A (convection); 2.98 A (peak, 10 sec.)
  • Rated Power: 65 W (convection); 71.5 W (peak, 10 sec.)
  • Input: 80-264 VAC @ 47-63 Hz
  • Efficiency: 93%
  • Agency approvals: UL, CUL, TUV, CB, CE, EN, EAC

Applications

  • Portable medical devices
  • Mobile clinical workstations
  • Medical computer monitor
  • Medical examination instruments

Overview

Product Identification

Product Type:Medical Switching SMPS
Manufacturer Series:MPM-65

Compliance

Agency Approvals: CB, CE, CUL, EAC, EN, TUV, UL

Dimensions & Appearance

Style:Medical Enclosed
Color:Silver
Height:1.16 in.
Width:2.05 in.
Length:3.42 in.

Operating conditions

Minimum Operating Temperature:-30°C
Maximum Operating Temperature:80°C

Input

Input Frequency:47 Hz to 63 Hz
Input Voltage:80 VAC to 264 VAC
Maximum Input Current:1.5 A

Output

Number of Outputs:1
Output Connector Type:PC Pins
Output Voltage:24 VDC
Output Current:2.71 A

Features

PFC Function:No
Minimum Isolation Voltage:4000V
Efficiency:93%
Power Rating:65 W
,
