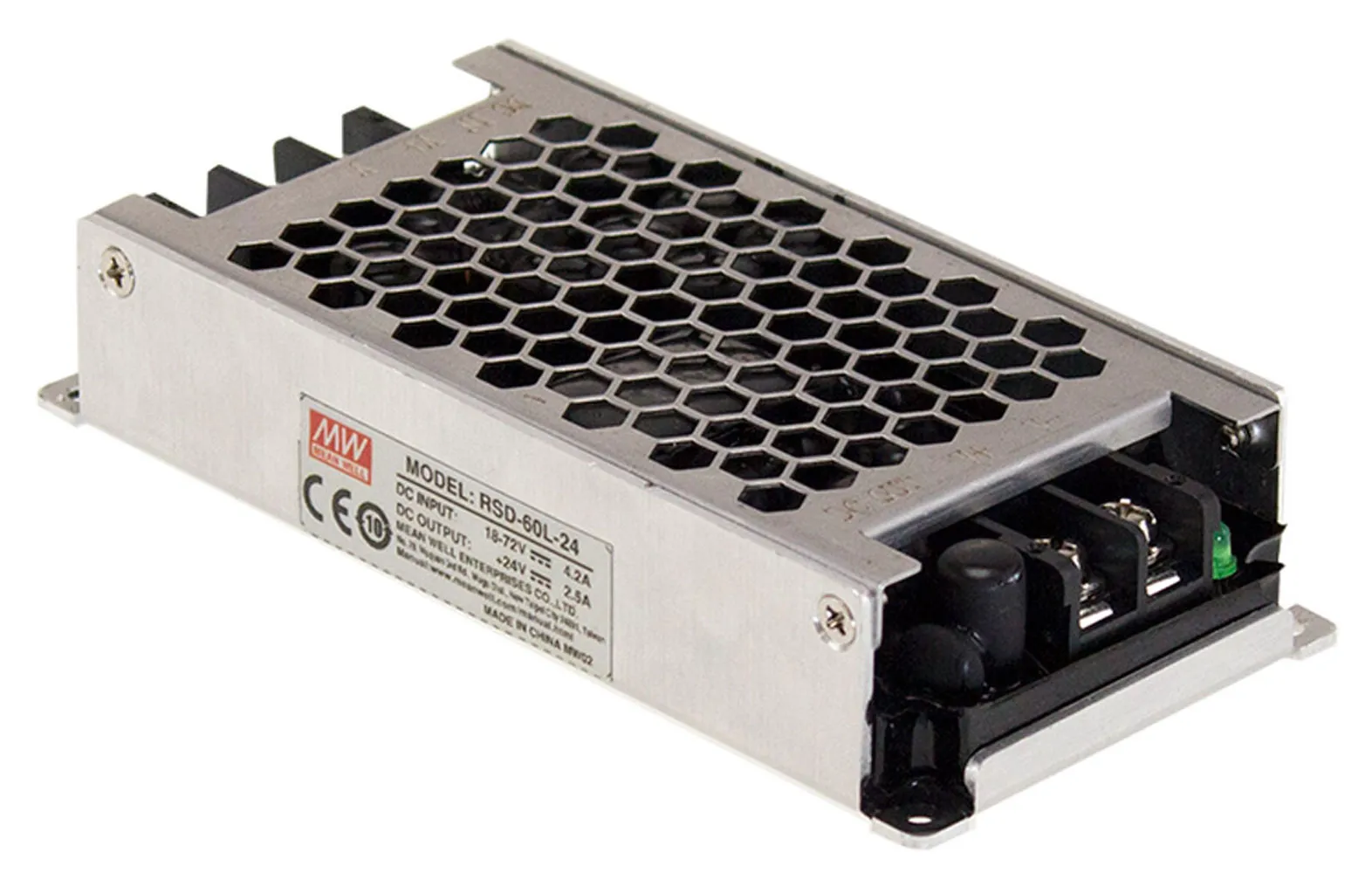

24V 2.5A 60W Reliable Railway Enclosed DC-DC Converter 9-36 Vin
24 Volts DC @ 2.5 AmpsFeatures
- Compliance to EN50155 and EN45545-2 railway standard
- Ultra compact and 1U low profile (25mm)
- 4:1 wide input range
- No minimum load required
- Protections: Short circuit, overload, over voltage, input reverse polarity
- 4000 VDC I/O isolation
- Half encapsulated, cooling by free air convection
- -40 to +70°C wide working temperature
- Built-in constant current limiting circuit
- LED indicator for power on
- Screw terminals
- 3 year warranty
Specifications
- Output voltage: 24 VDC
- Output current: 2.5 Amps
- Rated power: 60 Watts
- Input voltage range: 9 to 36 VDC
- Efficiency: 90%
- Line regulation: 0.2%
- Load regulation: 0.2%
- Ripple & noise: 50 mVp-p
- Size: 5.04"L x 2.36"W x 0.98"H
- Agency approvals: CE
Applications
- Bus, tram, metro or railway systems
- Highly vibrating, highly dusty, extremely low or high temperature harsh environment
- Wireless network
- Telecom or Datacom system
- Industry control system
Product Identification
Product Type:Isolated Railway DC to DC Converter SMPS
Manufacturer Series:RSD-60
Compliance
Agency Approvals:UL, CUL, CB, CE, EN, EAC
Dimensions & Appearance
Color:Silver
Height:0.98 in.
Width:2.36 in.
Length:5.04 in.
Operating conditions
Minimum Operating Temperature:-40°C
Maximum Operating Temperature:55°C
Packaging
Package:Railway Enclosed
Input
Input Voltage Range:9 VDC to 36 VDC
Input Voltage:24 VDC
Maximum Input Current:3 A
Output
Number of Outputs:1
Output Connector Type:Screw Terminal Block
Output Voltage:24 VDC
Additional Output Voltages (VDC):N/A
Output Current:2.50 A
Features
Pins:4
Efficiency:90%
Power Rating:60 W
