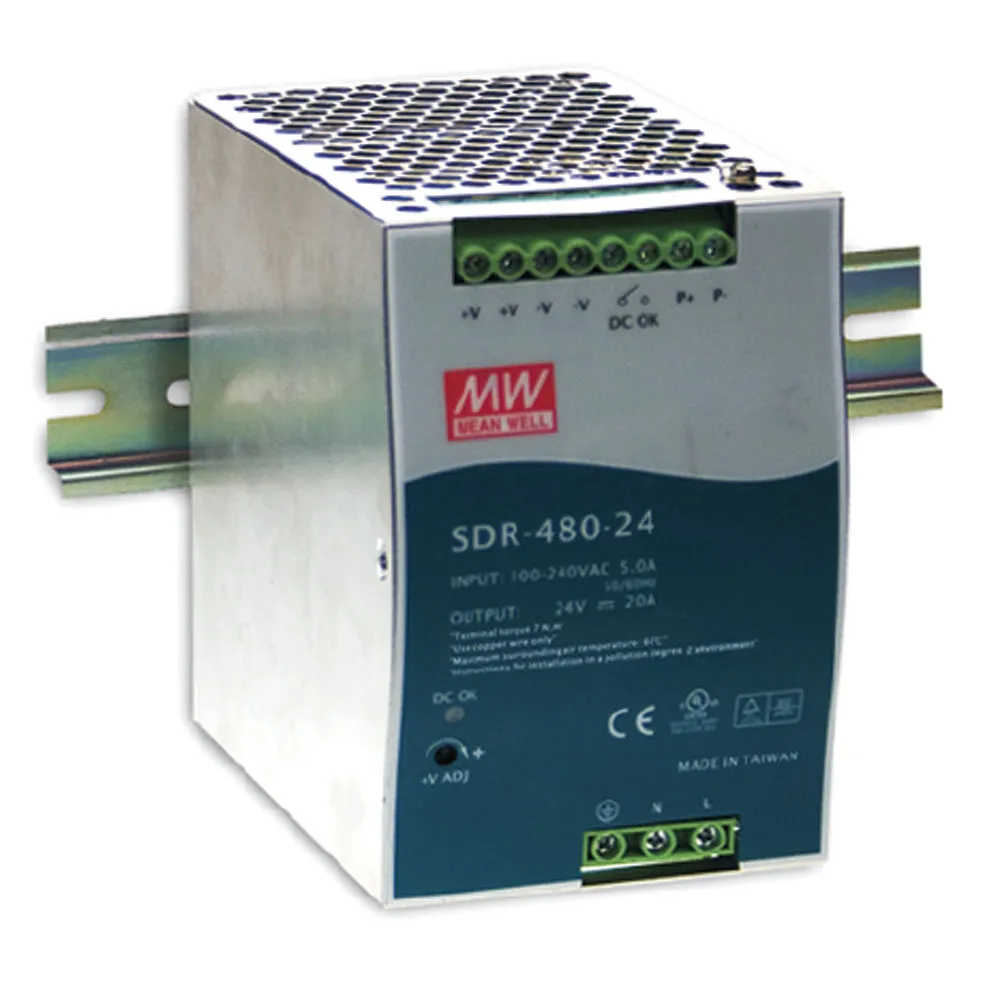

480 Watt 24V 20A DIN Rail Switching Power Supply

24 Volts @ 20 Amp

Specifications

  • Universal AC input range
  • Protections: Short-circuit, Overload, Overvoltage, Overtemperature
  • 100% Full load burn-in test
  • Soft-start circuit, limiting AC surge current
  • Input Voltage: 88-264VAC @ 47-63Hz, or 124-370VDC
  • Input Current @ Full load: 2.6A(115V) / 1.3A(230V)
  • Size: 4.9" x 3.4" x 5.0"
  • Weight: 4.9 lbs.
  • 3-year warranty

Overview

Product Identification

Product Type:DIN Rail Power Supply SMPS
Manufacturer Series:SDR-480

Compliance

Agency Approvals: CB, CE, CUL, EAC, EN, SEMI, TUV, UL

Dimensions & Appearance

Color:Silver
Depth:3.37 in.
Width:4.93 in.
Height:5.06 in.

Operating conditions

Minimum Operating Temperature:-25°C
Maximum Operating Temperature:70°C

Input

Input Frequency:47 Hz to 63 Hz
Input Voltage:90 VAC to 264 VAC
Maximum Input Current:5 A

Output

Number of Outputs:1
Output Connector Type:Screw Terminal Block
Output Voltage:24 VDC
Additional Output Voltages (VDC):N/A
Output Current:20 A

Features

Low Power Source (LPS):No
PFC Function:Yes
Efficiency:94%
Power Rating:480 W
,
