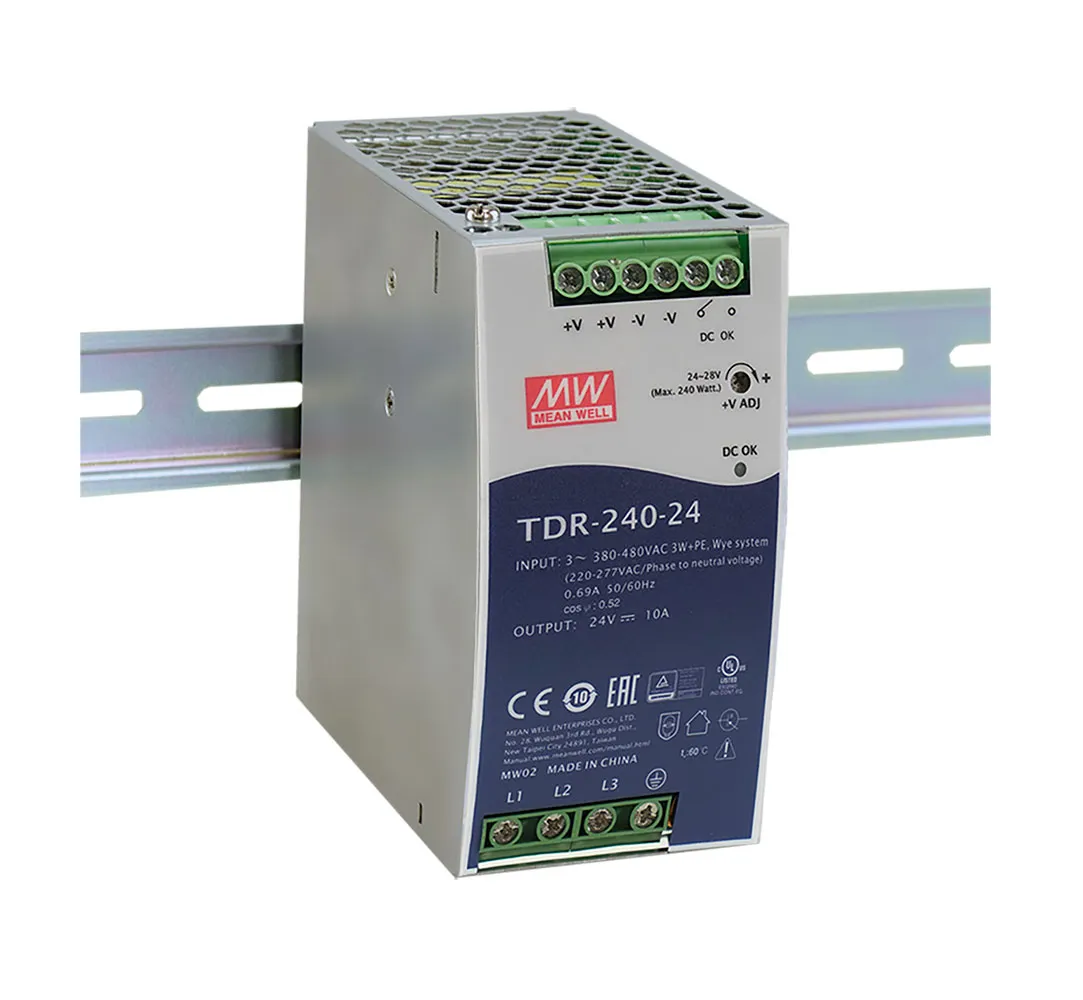

24V 10A 240W Three Phase Industrial DIN Rail Power Supply

24 Volts DC @ 10 Amps

Specifications

  • Output Power: 240 watts
  • Input Voltage: 3-phase 340-550 VAC @ 47-63 Hz; 480-780 VDC

Features

  • Three-phase 340-550VAC wide range input (Dual phase operation possible)
  • 63mm slim width
  • Built-in active PFC function compliance to EN61000-3-2
  • High efficiency 92% and low power dissipation
  • Protections: Short circuit, overload, over voltage, over temperature
  • Cooling by free air convection
  • Built-in constant current limiting circuit
  • Can be installed on DIN rail TS-35/7.5 or 15
  • UL61010 (industrial control equipment) approved
  • EN61000-6-2 (EN50082-2) industrial immunity level
  • 3 year warranty

Applications

  • Industrial control systems
  • Semiconductor fabrication equipment
  • Factory automation
  • Electro-mechanical apparatus

Product Identification

Product Type:DIN Rail Power Supply SMPS
Manufacturer Series:TDR-240

Compliance

Agency Approvals: CE, CUL, EAC, EN, TUV, UL

Dimensions & Appearance

Color:Black
Depth:4.47 in.
Width:2.48 in.
Height:4.93 in.

Operating conditions

Minimum Operating Temperature:-30°C
Maximum Operating Temperature:70°C

Input

Input Frequency:47 Hz to 63 Hz
Input Voltage:340 VAC to 550 VAC
Maximum Input Current:0.69 A

Output

Number of Outputs:1
Output Connector Type:Screw Terminal Block
Output Voltage:24 VDC
Additional Output Voltages (VDC):N/A
Output Current:10 A

Features

Low Power Source (LPS):No
PFC Function:Yes
Efficiency:92%
Power Rating:240 W
,
