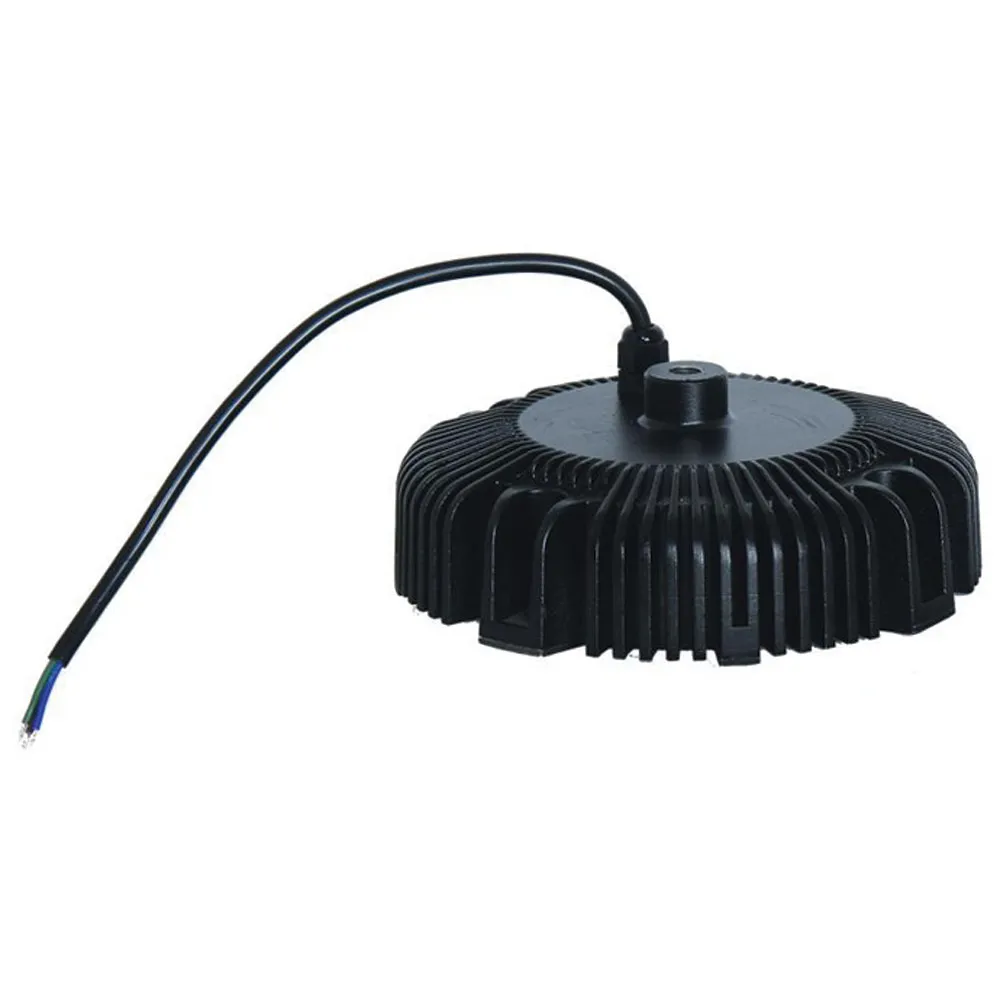

AC to DC Switching LED Power Supply Single Output with PFC Function 24 Volts 10 Amps 240 Watts

24 Volts @ 10 Amps

Specifications

  • Output Power (W): 240
  • Size (Dia x H) inches: 7.6 X 2.7
  • Ripple & Noise (mV p-p): 150
  • Load Regulation (±): 0.5%
  • Line Regulation (±): 0.5%
  • Efficiency: 90.5%
  • Frequency Range (Hz): 47-63
  • Voltage Range (VAC): 90-305
  • Agency Approvals: UL/CUL/CE
  • Universal AC input / Full range up to 305 VAC
  • Built in active PFC function
  • Protections: short circuit, over voltage, over temperature, over current
  • OCP point adjustable through internal potentiometer
  • IP65 rated. Output constant current level can be adjusted through output cable with 1-10V, PWM signal and resistance
  • Warranty:5 years

Product Identification

Manufacturer Series:HBG-240
Product Type:Auto Switching SMPS

Compliance

Agency Approvals: CB, CCC, CE, CUL, EAC, EN, ENEC, UL

Dimensions & Appearance

Style:Enclosed
Color:Black
Height:2.72 in.
Width:7.54 in.
Length:7.54 in.

Operating conditions

Minimum Operating Temperature:-40°C
Maximum Operating Temperature:80°C

Input

Input Frequency:47 Hz to 63 Hz
Input Voltage:90 VAC to 305 VAC
Maximum Input Current:2.5 A

Output

Number of Outputs:1
Output Range:14.4 VDC to 24 VDC
Output Connector Type:Stripped and Tinned
Output Voltage:24 VDC
Output Current:10 A

Features

PFC Function:Yes
Minimum Isolation Voltage:3750V
IP Rating:IP67
Efficiency:92.5%
Power Rating:240 W
,
