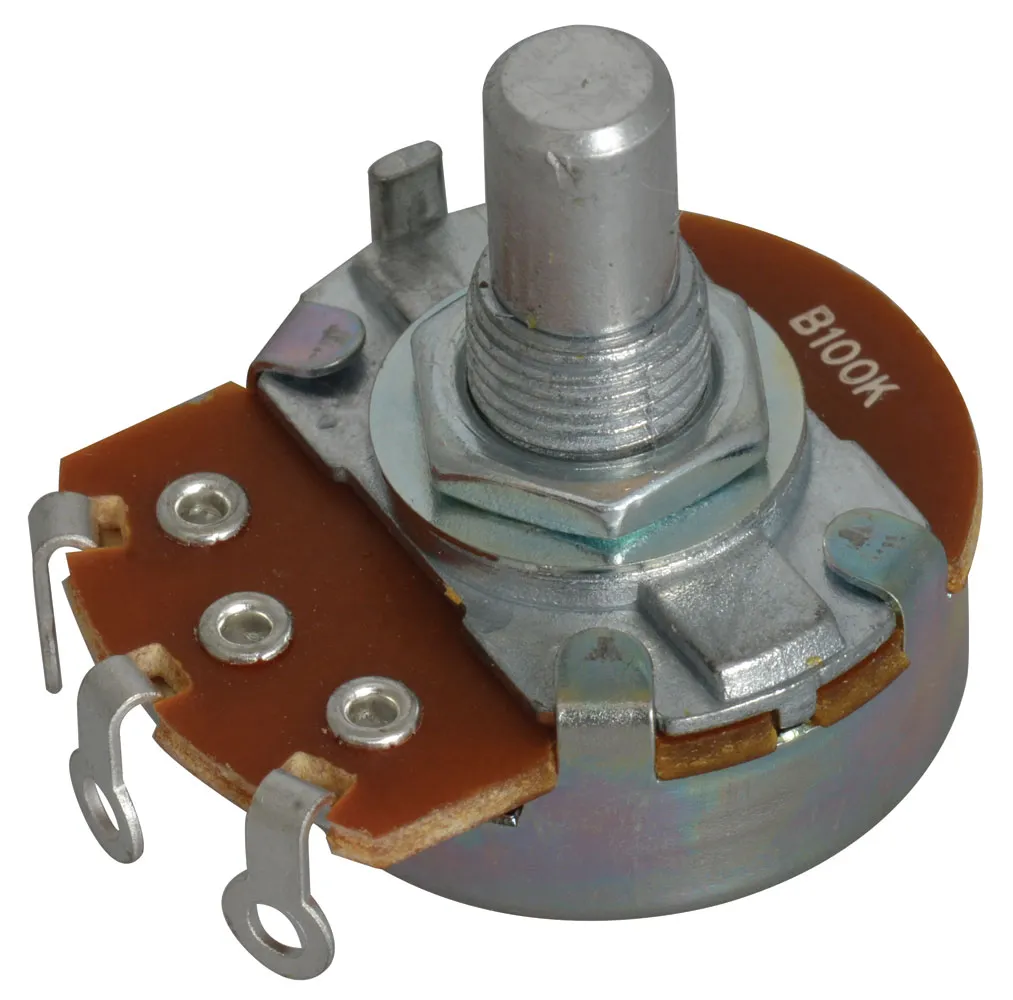

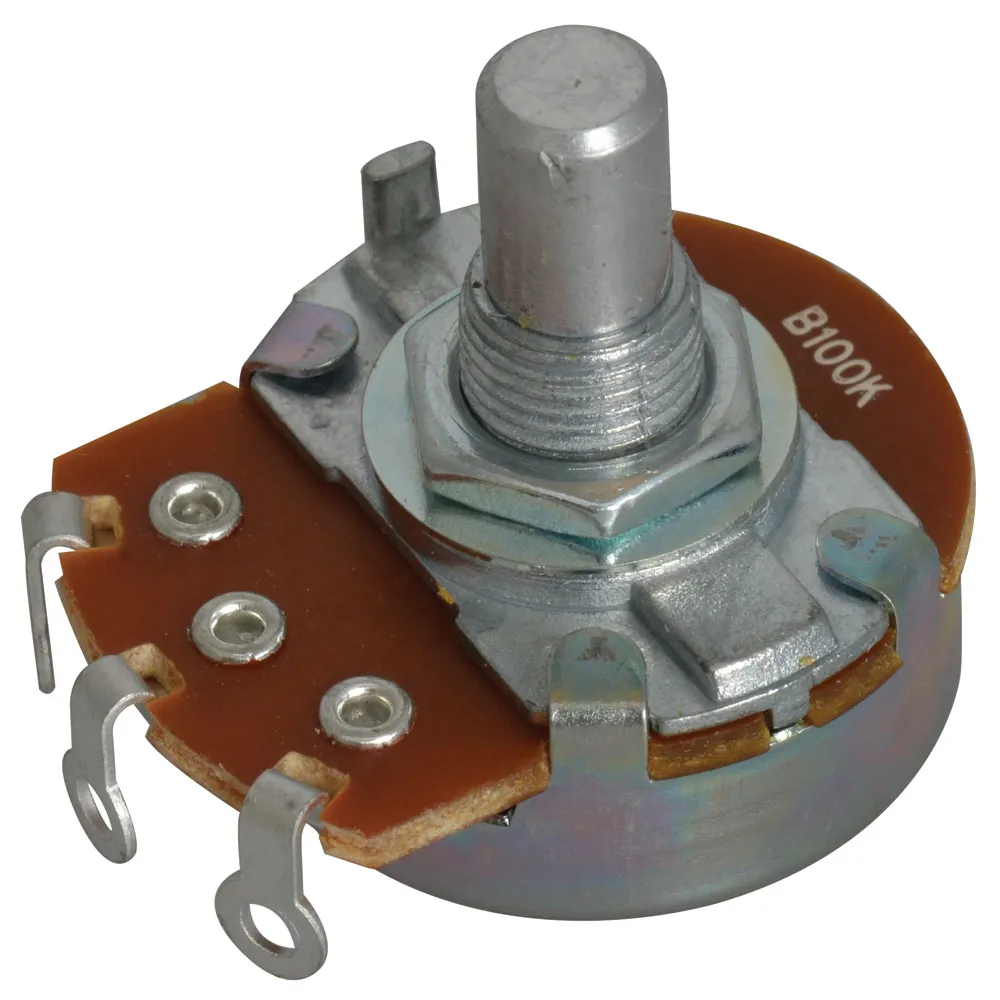

1/2W 24mm 100k Ohm Linear Taper Potentiometer

Features

  • Shaft diameter: 0.236 in
  • Shaft length: 0.590" (15 mm)
  • Temperature range : -55°C to +125°C
  • Maximum Panel Thickness: 0.1875 in
  • Mounting Hole: 0.3125 in
  • Non-rotational key, non-slotted shaft end
  • Tolerance: 20%

Product Identification

Manufacturer Series:RV24N

Dimensions & Appearance

Mounting:Panel Mount
Shaft Diameter:0.250 in., 6.35 mm
Shaft Length:0.590 in.
Shaft Style:Round
Body Diameter:24 mm

Features

Ganging Number:1
Number of Turns:1
Taper:Linear
Resistance (Ohm):100000
Tolerance:20%
Power Rating:0.5 W
Termination Style:Solderable Lug
Resistance:100 KOhm
Voltage Rating:500 V
,
