240W 48V 5A DC-DC Converter Ultra-Wide Input 250-1500VDC DIN Rail Mount

Features

• DC output voltage adjustable: 48-58V
• Ultra-Wide Input Voltage Range: 250 to 1500 VDC (6:1 Ultra)
• 85.5mm slim width
• 4 KV I/O high isolation (reinforced isolation)
• Protections: Short circuit, overload, over voltage, over temperature, DC input under voltage, DC input reverse polarity
• Fanless design; Cooling by free air convection
• Can be installed on DIN rail TS-35/7.5 or TS-35/15
• Ultra-Wide Operating Temperature Range: -50 to +80°C (>+50°C derating)
• Over voltage category II
• DC OK relay contact
• Operating altitude up to 5000 meters
• 3 year warranty

Overview

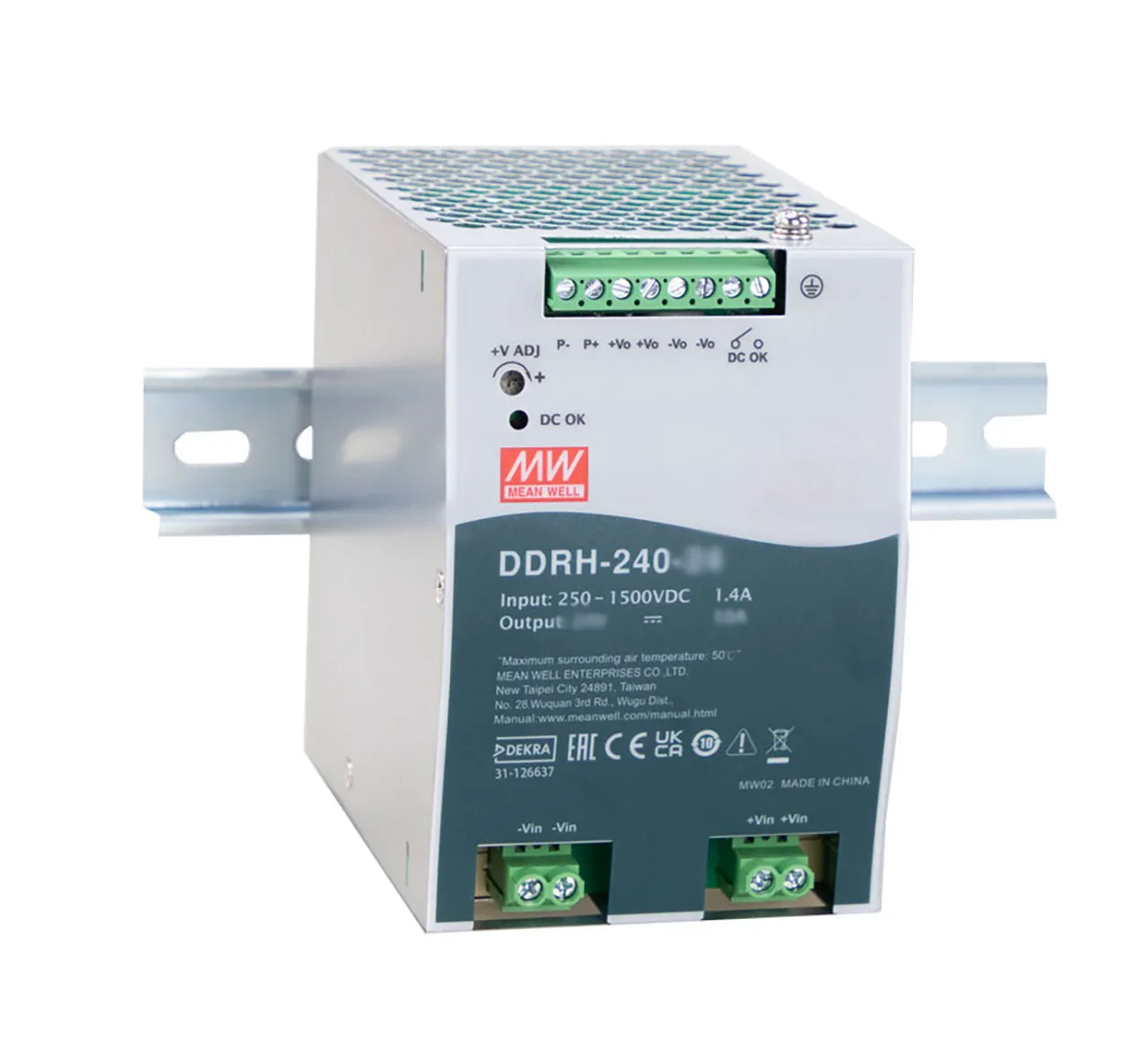

DDRH-240 series is a 250 to 1500 VDC input high-reliability DIN-rail type DC-DC converter which can supply stable working votlage for the load. It is suitable to be mounted on TS-35/7.5 or 15 rails. It features easy-to-install DIN-rail design, slim narrow width (63mm), wide operating temperature range, 4KV high isolation voltage, operation at 5000m altitude, high efficiency, low ripple and noise, complete protections and more.

DDRH-240 is compliant with BS EN/EN61000-6-2 standard regarding immunity for industrial environments. It is suitable for industrial automation, surveillance, telecommunication and can be widely deployed in the applications of new energy generation such as solar power, windmill power generation, photovoltaic power systems, high voltage inverting, DC centralized bus applications, ESS, charging pile, railway and more.

Specifications

• Output Voltage: 48 VDC
• Output Voltage Adjustment Range: 48 to 58 V
• Output Current: 0 to 5 A
• Rated Power: 240 W
• Input Voltage: 250 to 1500 VDC
• Size: 3.37"W x 4.93"H x 5.09"D (85.5 x 125.2 x 129.2 mm)
• Agency Approvals: CB, CE, EN, EAC, CE, UKCA, DEKRA

Applications

• Photovoltaic power generation (solar)
• High voltage frequency conversion
• Industrial control systems
• Semiconductor fabrication equipment
• Electromechanical apparatus
• DC bus centralized application
