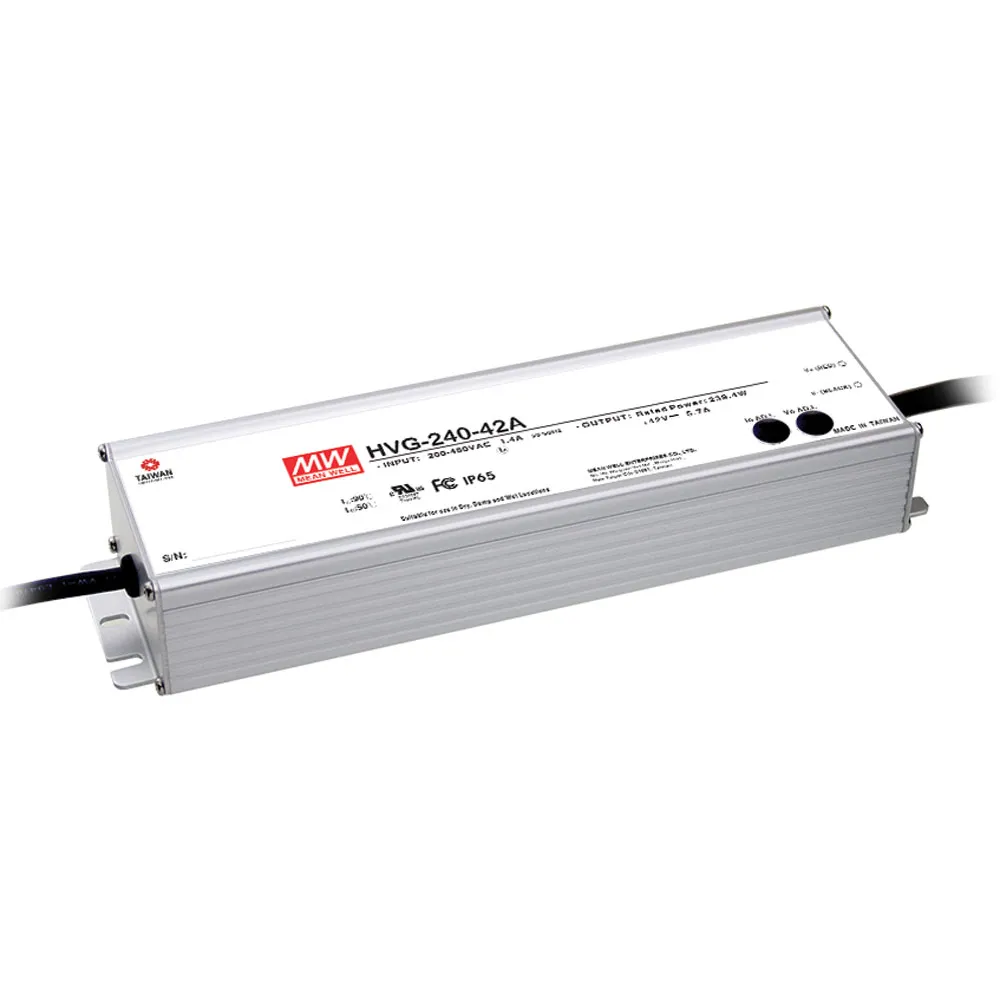

240W 24V 10A Switching LED Power Supply

24 Volts @ 10 Amps

Features

  • "B" model -IP67, 3 in 1 Dimming Function (0~10Vdc, 10V PWM signal and resistance)
  • Wide input range (180-528 VAC)
  • Built-in active PFC function
  • High efficiency up to: 92%
  • Protections: Short circuit / Over current / Over voltage / Over temperature
  • Withstand 5G vibration test
  • Cooling by free air convection
  • IP67 design for indoor or outdoor installations
  • Suitable for LED lighting and street lighting applications
  • Compliance to worldwide safety regulations for lighting
  • Suitable for dry / damp / wet locations
  • Type HL LED Driver for use in Class I, Division 2 hazardous(Classified) location luminaires
  • 5 year warranty
  • Agency approvals: UL, CUL, CUS, FCC

    Applications

  • LED street lighting
  • LED high-bay lighting
  • Parking space lighting
  • LED fishing lamp
  • LED greenhouse lighting
  • Class I, Division 2 hazardous (Classified) location luminaires

    • Product Identification

    Product Type:Auto Switching SMPS
    Manufacturer Series:HVG-240

    Compliance

    Agency Approvals: CUL, EAC, EN, FCC, UL

    Dimensions & Appearance

    Style:Enclosed
    Color:Silver
    Height:1.53 in.
    Length:10.01 in.
    Width:2.68 in.

    Operating conditions

    Minimum Operating Temperature:-40°C
    Maximum Operating Temperature:90°C

    Input

    Input Frequency:47 Hz to 63 Hz
    Input Voltage:180 VAC to 528 VAC
    Maximum Input Current:0.8 A

    Output

    Number of Outputs:1
    Output Connector Type:Stripped and Tinned
    Output Voltage:24 VDC
    Output Range:N/A
    Output Current:10 A

    Features

    PFC Function:Yes
    Minimum Isolation Voltage:3750V
    IP Rating:IP67
    Efficiency:92.5%
    Power Rating:240 W
    ,
