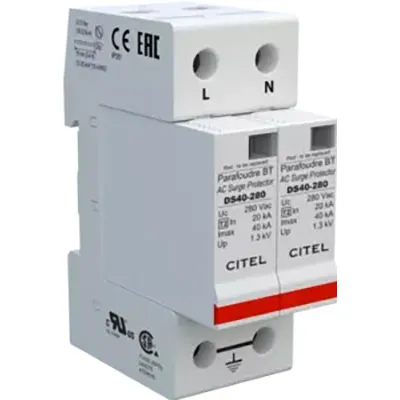

240VAC 1-Phase DIN Rail Surge Protection Device 275V MCOV 40kA IMAX

Citel

Jameco Part #:

Manufacturer #:

Primary datasheet

Product Price:

$140.000

In Stock: 0

Quantity	Unit Price	You Save	Discount
1+	$140.000	-	-

This surge protection device (SPD) designed for 240 VAC 1-phase AC Power circuits and uses MOV technology. It features 40kA surge current rating per module and is UL1449 Type 1 Listed. It has a visual fault indicator, remote contacts, and comes with a 10-year warranty.

Specifications

Protection Mode(s): Common Mode or Differential Mode
Power SPD Type: UL1449 TYPE 1 LISTED
VOLTS: 240 V
AC voltage systems
Phase: 1
Amps: n/a
Ambient Temperature: -35°C to +60°C
Modes: n/a
MLV: (V): n/a
MCOV: (V): 275
IN: (kA): 20
SCCR: (kA): n/a
IMAX: (kA): 40
limp: 4 kA
Technology: n/a
Network Configuration: n/a
Connection Method: Screw Terminal (8 to 12 AWG)
Mounting: DIN RAIL
Material: Thermoplastic UL94-V0
NEMA Rating (IP Rating): NEMA 2 (IP20)
Fail-Safe Behavior: Disconnection via fuse-link
Re
