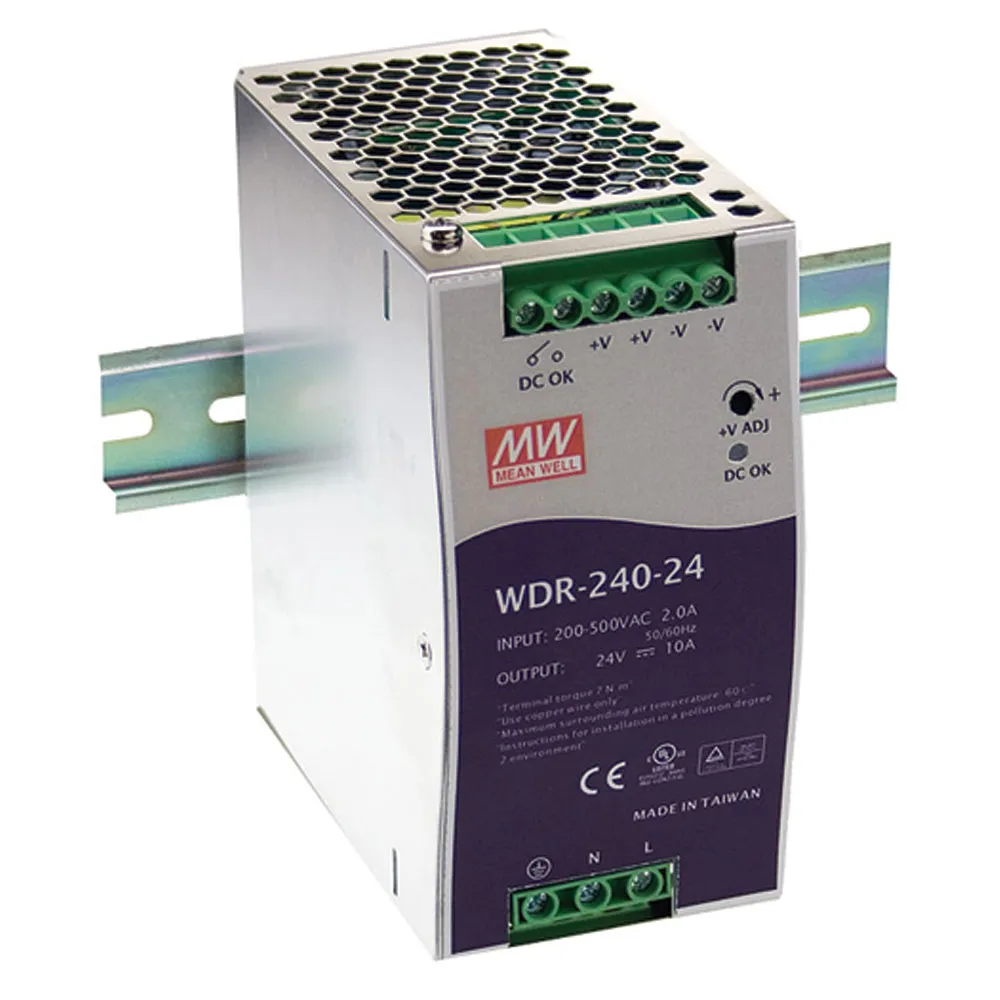

240W Single Output Industrial DIN Rail Power Supply
24 Volts @ 10 AmpsFeatures:
- Single and two phase wide input range 180~550VAC
- High efficiency 91% and low power dissipation
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Cooling by free air convection
- Can be installed on DIN rail TS-35/7.5 or 15
- UL 508(industrial control equipment)approved
- EN61000-6-2(EN50082-2) industrial immunity level
- Built-in DC OK relay contact
- 100% full load burn-in test
- 3 years warranty
Product Identification
Product Type:DIN Rail Power Supply SMPS
Manufacturer Series:WDR-240
Compliance
Agency Approvals: CB, CE, EAC, EN, UL
Dimensions & Appearance
Color:Silver
Depth:2.48 in.
Height:4.47 in.
Width:4.93 in.
Operating conditions
Minimum Operating Temperature:-30°C
Maximum Operating Temperature:70°C
Input
Input Frequency:47 Hz to 63 Hz
Input Voltage:180 VAC to 550 VAC
Maximum Input Current:2 A
Output
Number of Outputs:1
Output Connector Type:Screw Terminal Block
Output Voltage:24 VDC
Additional Output Voltages (VDC):N/A
Output Current:10 A
Features
Low Power Source (LPS):No
PFC Function:Yes
Efficiency:91%
Power Rating:240 W
