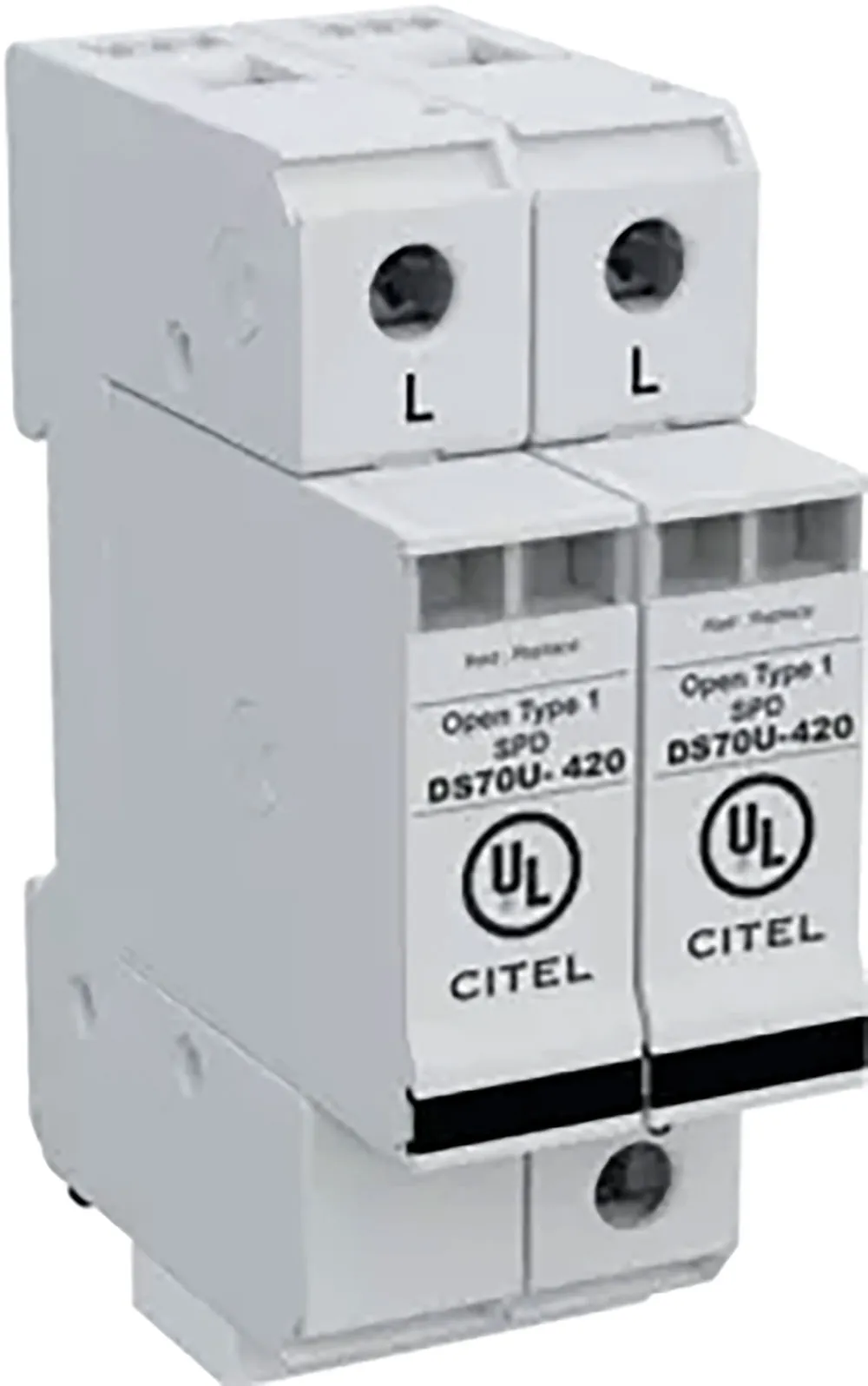

240 VAC DIN Rail Surge Protection Device 75kA Surge

Specifications

  • Total Maximum discharge current: Imax Total: 80 kA
  • Protection mode(s): Common mode
  • Power SPD Type: UL1449 TYPE 1 Listed
  • Volts (V): 480/240 VAC
  • Phase (PH): 1S
  • Amps (A): n/a
  • Ambient Min (C): -40
  • Ambient Max (C): +85
  • Modes: L-L, L-G
  • MLV (V): 2500/-/1500/-
  • MCOV (V): 840/-/420/-
  • IN (kA): 20
  • SCCR (kA): 200
  • IMAX (kA): 75
  • Technology: Multi-MOV
  • Connection Method: Screw Terminal (4-14 AWG)
  • Mounting: DIN Rail
  • Material: Thermoplastic UL94-V0
  • NEMA Rating (IP Rating): NEMA 2 (IP20)
  • Fail-Safe Behavior: Disconnection via fuse-link
  • Real-Time Diagnostics: Visual indicator and remote contacts
  • Dimensions: See diagram (mm)

Compliance

Agency Approvals:UL, TUV, EAC

Dimensions & Appearance

Depth:67 mm
Width:36 mm
Height:90 mm
Mounting Type:DIN Rail

Features

IP Rating:IP20
Technology:Multi-MOV
Surge Current Rating:75 kA
Protection Style:N/A
Voltage Rating:480 VAC, 240 VAC
Current Rating:N/A
,
