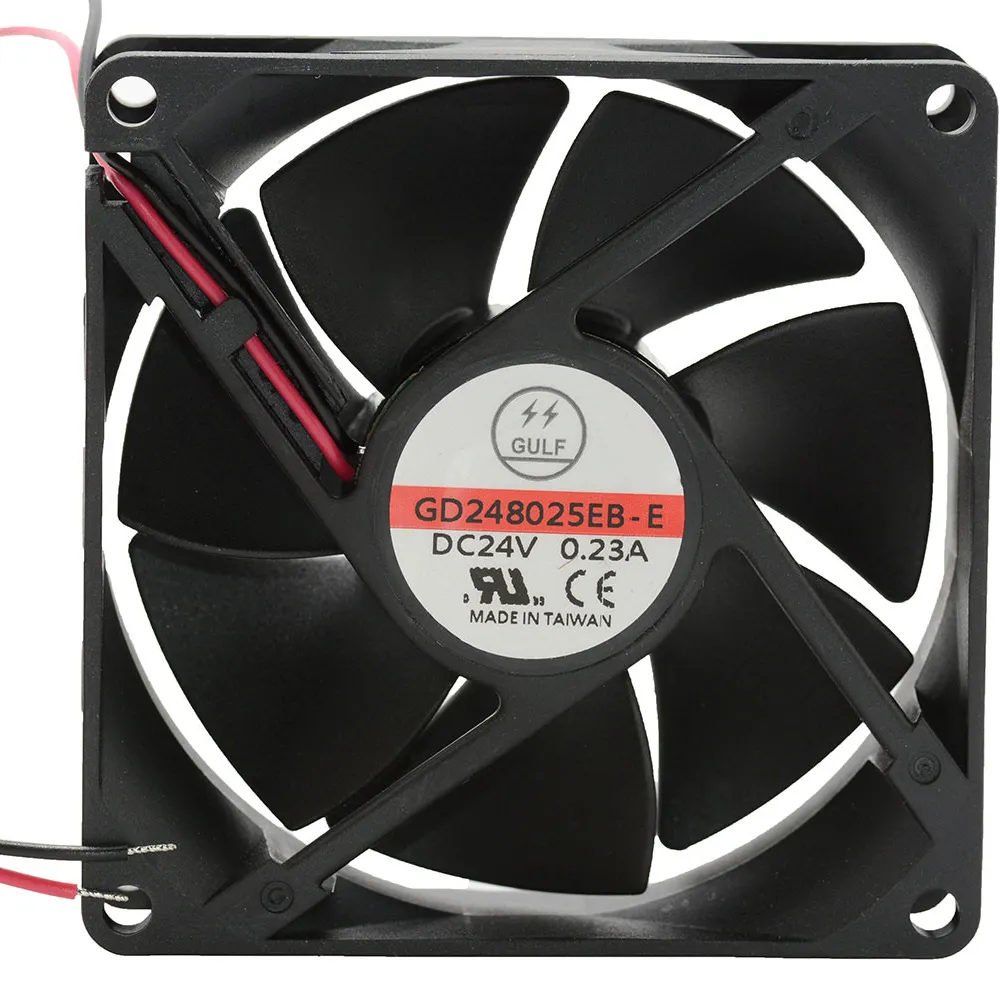

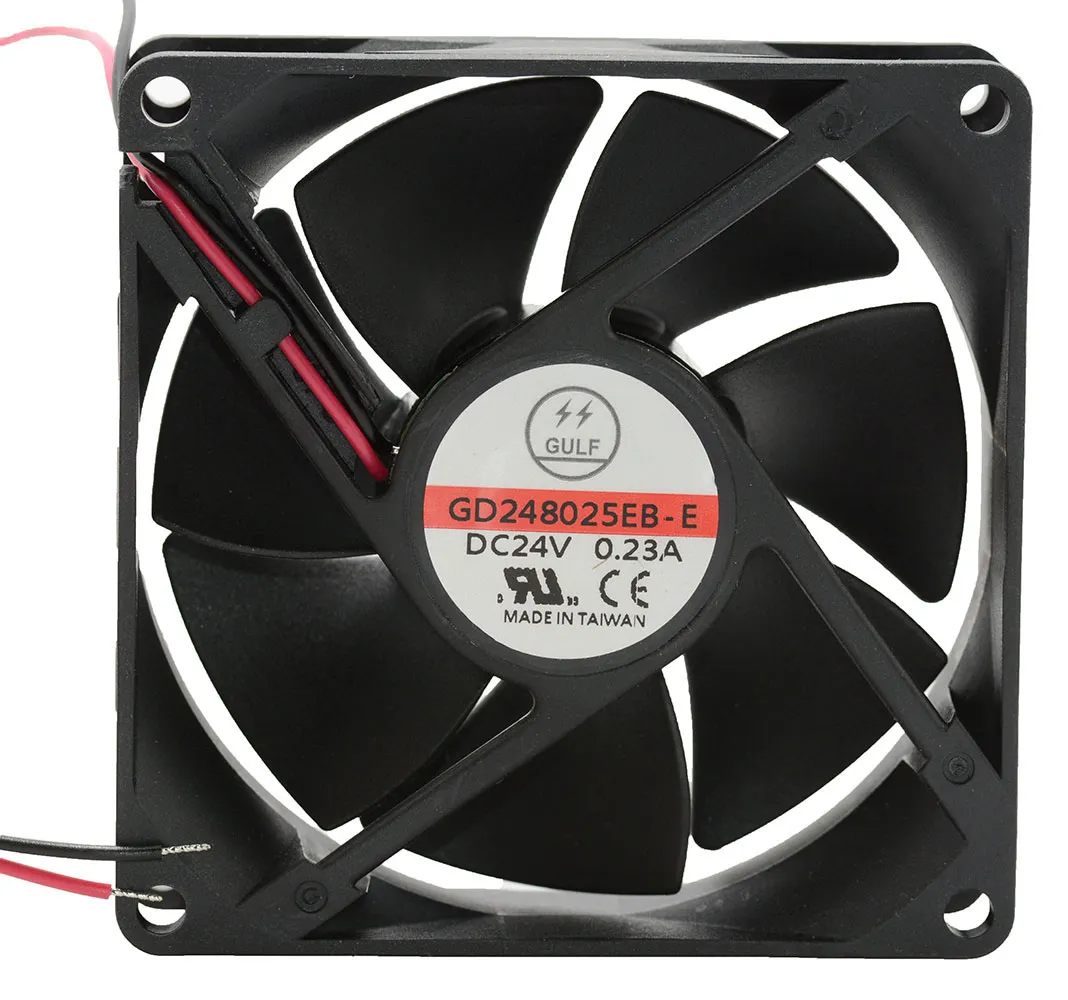

24 Volt DC 80x80x25mm Brushless Tubeaxial Fan 54.5 CFM
Features
- Voltage: 24 volts DC
- Size (W x H x D): 80 mm X 80 mm X 25 mm
- Air flow: 54.5 CFM<>
- Bearing type: Dual Ball
- Current: 140 mA
- Power: 3.36 watts
- Agency approvals: UL
- Noise: 38.7 dBA
- Connections: 12" wire leads
Overview
This 80x80x25mm tubeaxial fan features dual ball bearing and a brushless motor that operates at 24 VDC. Current consumption averages 140 mA, and the fan provides a typical airflow of 54.5 CFM at 38.4 dB(A).
Product Identification
Product Type:DC Fan
Compliance
Dimensions & Appearance
Depth:25 mm
Height:80 mm
Width:80 mm
Features
Bearing:Dual Ball
Speed:3500 rpm
Voltage Rating:24 VDC
Power Rating:3.36 W
Termination:12" Wires
Noise (dBA):38.7
Air Flow (CFM):54.5
Current Rating:140 mA
