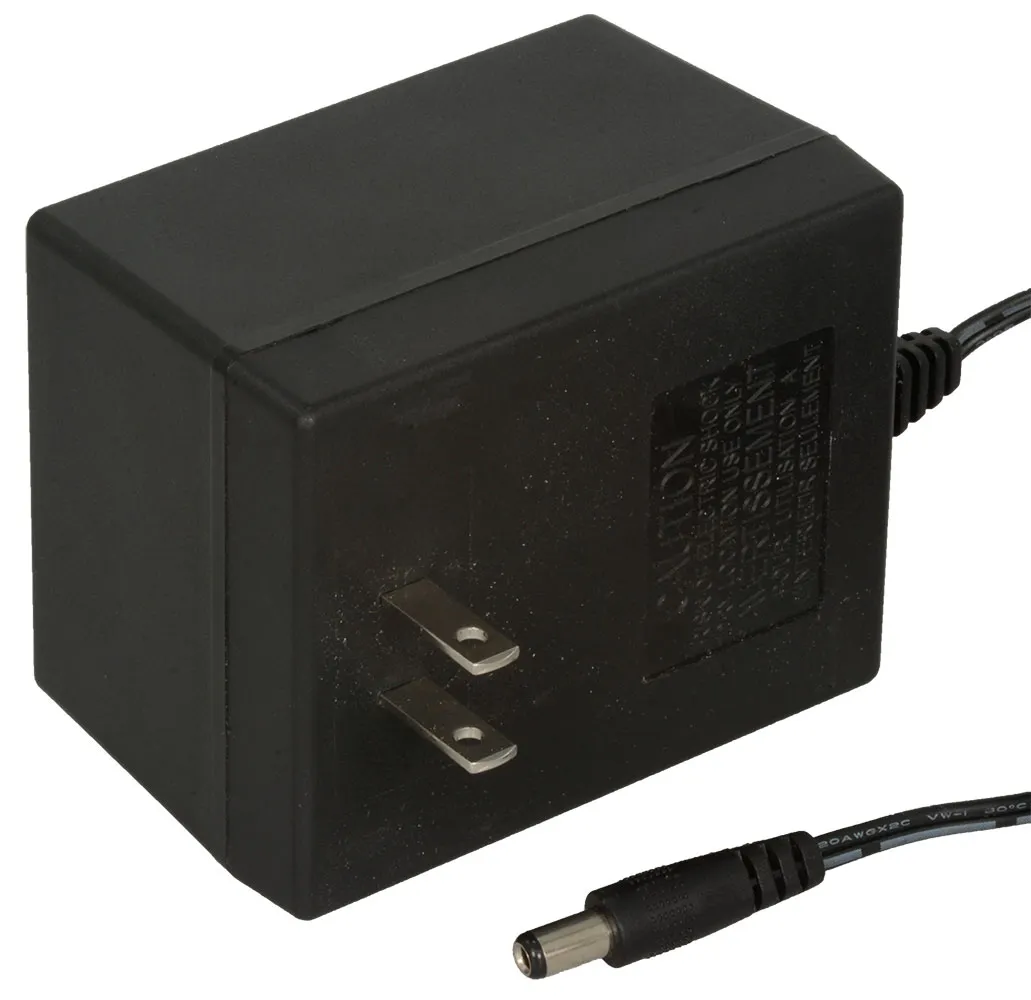

24 Volt AC 2000 mA 48 Watt Linear Wall Adapter 2.5mm Plug

Specifications

  • Output voltage: 24 VAC
  • No load voltage: 27.5 VAC (±5%)
  • Output current: 2000 mA (2 A)
  • Output connector: 2.5 mm x 5.5mm cylindrical female barrel plug (ID x OD)
  • Input voltage: 120 VAC @ 60 Hz (50 W)
  • Input load current: 575 mA (RMS max.)
  • Size: 2.69" W x 3.33" H x 2.20" D
  • Case color: Black
  • Output cord length: 6 feet
  • Weight: 1.7 lbs.
  • Agency approvals: UL, CUL

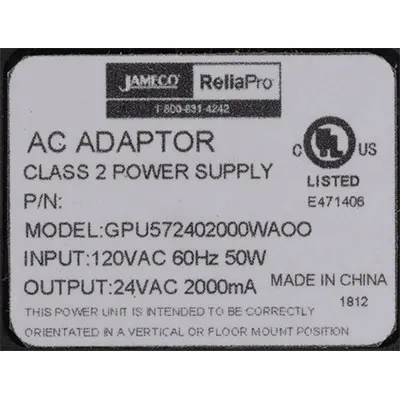

Power label sticker image

Product Identification

Manufacturer Series:ReliaPro

Compliance

Agency Approvals:A, N

Dimensions & Appearance

Color:Black
Height:2.20 in.
Width:2.69 in.
Length:3.33 in.

Input

Input Voltage:120 VAC

Output

Number of Outputs:1
Output Connector Diameters:2.5mm x 5.5mm
Output Connector Type:Cylindrical Female
Output Voltage:24 VAC
Output Current:2 A

Features

Primary Side Connection:NEMA 1-15P
AC Cord Length:6 ft.
Primary Frequency:60 Hz
Polarity:A, N
Power Rating:48 VA
,
