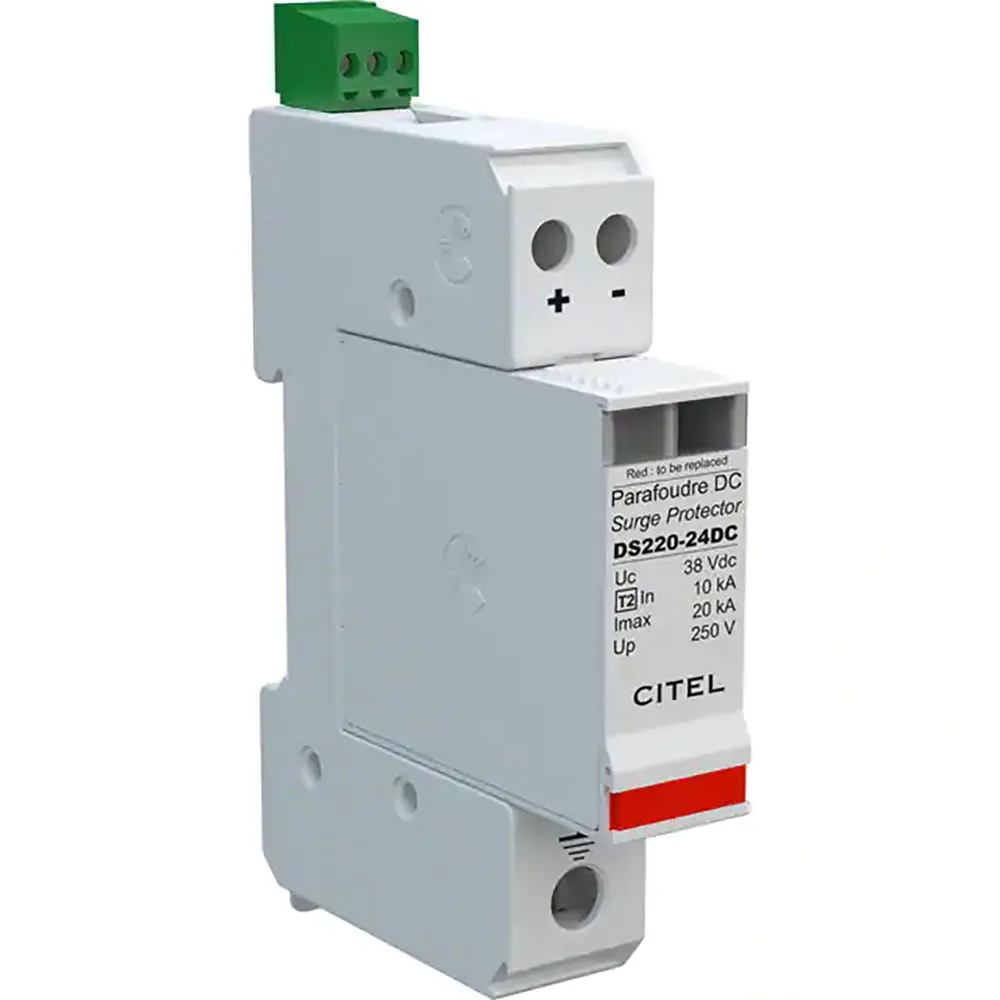

24 VDC DIN Rail Network Surge Protection Device 20kA Surge

Specifications

• Max Load Current (IL): 20 A
• Total Maximum discharge current: Imax Total: 40 kA
• Protection mode(s): Common mode
• Power SPD Type: UL1449 TYPE 4CA
• Volts (V): 24 VDC
• Phase (PH): n/a
• Amps (A): n/a
• Ambient Min (C): -35
• Ambient Max (C): +85
• Modes: DC+-DC, DC+-G, DC-G
• MLV DC (V): 580/560/490
• MCOV (V): 38/38/38
• IN (kA): 10
• SCCR (kA): n/a
• IMAX (kA): 20
• Outdoor Application: No
• Technology: MOV
• Network Configuration: 2W+G
• Connection Method: Screw Terminal (8-12 AWG)
• Mounting: DIN Rail
• Material: Thermoplastic UL94-V0
• NEMA Rating (IP Rating): NEMA 2 (IP20)
• Fail-Safe Behavior: Disconnection via fuse-link
• Real-Time Diagnostics: Visual indicator and remote contacts
• Dimensions: See diagram (mm)
• Weight: 0.30 lbs.
