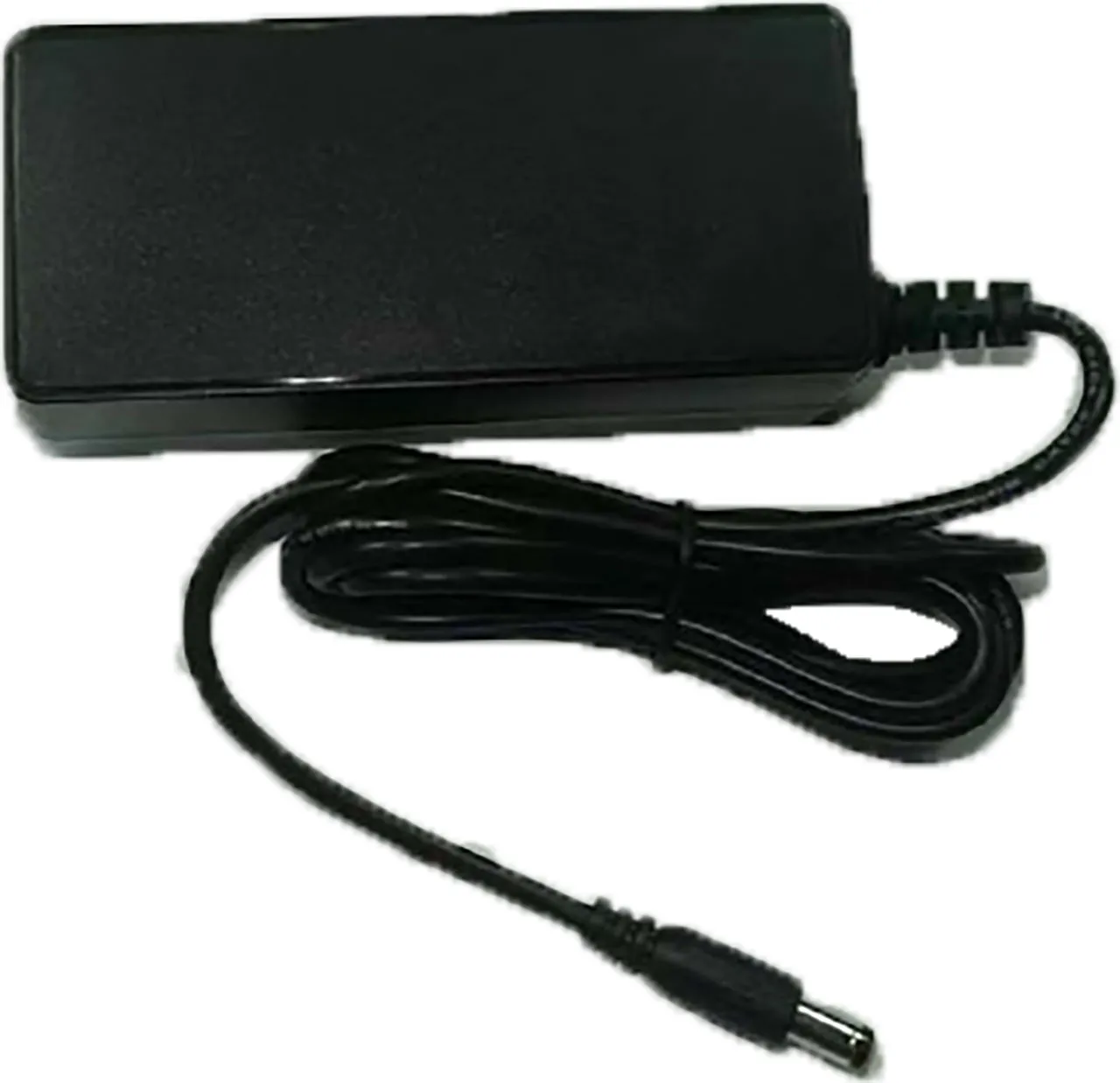

24 VDC 1.5A Switching Table Top Power Supply C14 Inlet 2.1mm Plug

Features

  • Output Rating: 24 VDC @ 1.5 A
  • Input Voltage: 100-240 VAC @ 50/60 Hz
  • AC input cord not included, we recommend P/N: 2271575
  • Plug Size: 2.1mm ID x 5.5mm OD x 11mm Length
  • Output cord length: 4 feet
  • Agency Approval: UL, FCC, CE
  • CEC Level VI

Overview

Output Connector Type: Cylindrical female barrel 2.1mm inside diameter / 5.5mm outside diameter straight plug.

Product Identification

Type:Auto Switching SMPS
Manufacturer Series:ReliaPro

Compliance

Agency Approvals: CE, FCC, UL

Dimensions & Appearance

Style:Desktop
Color:Black
Height:1.26 in.
Width:1.77 in.
Length:4.02 in.

Operating conditions

Minimum Operating Temperature:0°C
Maximum Operating Temperature:40°C

Input

Input Frequency:47 Hz to 63 Hz
Input Voltage:100 VAC to 240 VAC
Maximum Input Current:1 A

Output

Number of Outputs:1
Output Connector Diameters:2.1mm x 5.5mm
Output Voltage (Channel 1):24 VDC
Output Current (Channel 1):1.5 A
Output Connector Type:Cylindrical Female
Output Voltage:24 VDC
Additional Output Voltages (VDC):N/A
Output Current:1.5 A

Features

Minimum Isolation Voltage:1500V
Polarity:Center Positive
Product Note:Level VI
AC Power Cord:NOT INCLUDED, RECOMMEND 2271575
Efficiency:87%
Power Rating:36 W
,
