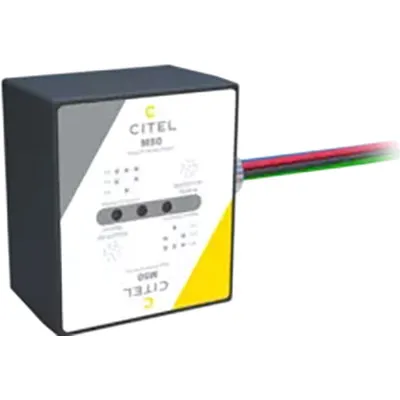

230V AC Surge Protection Device Hybrid MOV-GSG 280V MCOV 50kA IMAX

This panel mount AC surge protection device (SPD) designed for 230 Volt 1S-phase AC power circuits. It features Hybrid MOV-GSG technology and offers extended life with no leakage current and 50kA surge current rating per module. It has visual LED fault indicators and an audible alarm. The case is NEMA 6 and exceeds NEMA 4X or NEMA 4.

Specifications

  • Power SPD Type: UL1449 Type 1/2 Listed
  • Volts: 230V
  • AC voltage systems
  • Phase: 1S
  • Amps: N/A
  • Ambient Temperature: -35°C to +80°C
  • Modes: L-L, L-G, N-G
  • VPR (V): 1200 / 1500 / 1500
  • MCOV (V): 280 / 280 / 140
  • IN: 20 kA
  • SCCR: 150 kA
  • IMAX: 50 kA
  • Technology: Hybrid MOV-GSG
  • Network Configuration: 3PH, 3W+G, Wye
  • Connection Method: 12 AWG wire leads, 36"
  • Mounting: Side Mount, Threaded M22 (1/4" NPT Adapter)
  • Material: Aluminum case
  • NEMA Rating (IP Rating): NEMA 6 (IP66)
  • Fail-Safe Behavior: Yes, no upstream over current protection required
  • Real-Time Diagnostics: LED indicator and audible alarm
  • UL Standard: UL 1449 5th Edition
  • UL Category: VZCA
  • Standards: NOM-003-SCFI-2014, NOM-001-SCFI-1993

Compliance

Agency Approvals:UL1449 Type 1

Dimensions & Appearance

Depth:N/A
Height:N/A
Width:N/A
Mounting Type:Panel Mount

Input

Input Voltage:230 VAC

Features

Failsafe Protection:Yes
Short Circuit Protection:150 kA
Technology:MOV-GSG
Surge Current Rating:50 kA
Protection Style:L-N, L-G, N-G
Application:230V Single Phase
IP Rating:IP66
Maximum Clamping Voltage:280 / 280 / 140
Voltage Rating:150 VAC
Current Rating:N/A
,
