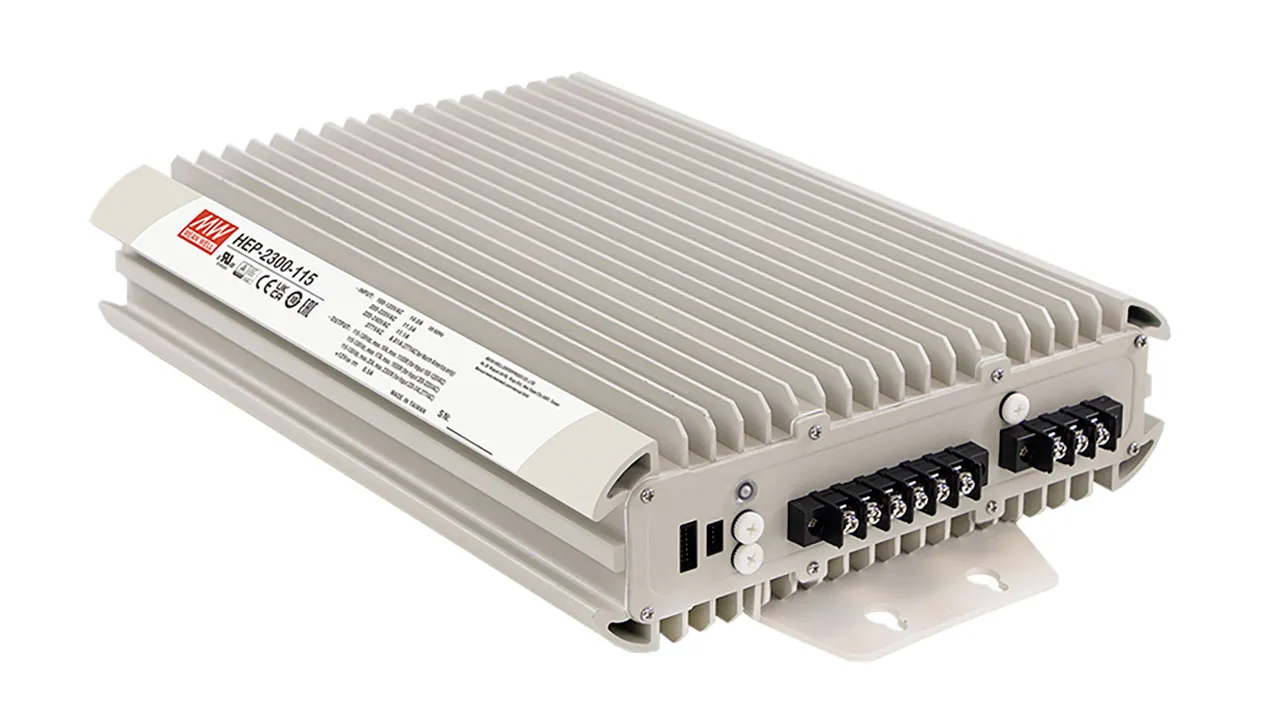

2300W 380VDC 6.9A High Voltage Output Power Supply for Harsh Environments Wired

The HEP-2300-HV is a 2300-watt industrial AC-DC power supply featuring the outstanding capability to operate under highly humid, dusty, oily, and high-vibration harsh environments. The entire series is housed with the aluminum case and fully potted with heat-conductive glue. Adopting the full range of 90-305VAC input, the series provides a high output voltage of 380 VDC. In addition to the high efficiency up to 95.5%, that the series operates from -40C to 70C under free air convection without a fan. HEP-2300 has the complete protection functions and 10G anti-vibration capability. It complies with the international safety regulations such as TUV EN62368-1, UL62368-1 and design refers to EN61558-1 and EN60335-1. HEP-2300-HV series serves as a high-performance power supply solution for various industrial applications. High Voltage DC (HVDC) Output Power Supply Solutions.

(HEP-2300HV Wired Model)

Features

• Wired type
• High efficiency up to 95.5% and active PFC function
• Fanless design, cooling by free air convection
• Aluminum case and filled with heat-conductive glue
• Withstand 10G vibration test
• Wide operating temperature range: -40°C to +70°C
• Charger function for lead-acid batteries and Li-Ion batteries
• Built-in default 2/3 stage charging curves and programmable curve
• Output voltage and constant current level programmable
• Protections: Short circuit, over load, over voltage, over temperature
• Built-in remote ON-OFF control and DC OK active signal
• LED indicator for power on and 12V auxiliary power available
• Diverse installation scenarios and mounting methods
• Wiring type with IP67 rating
• 6 year warranty

Specifications

• DC output voltage: 380 VDC
• Rated Current: 6.9 A
• Rated Power: 2300 W
• Full Power Range: 334 VDC to 400 VDC (adjustment by potentiometer VR)
• Input Voltage Range: 90 VAC to 305 VAC

Applications

• Industrial automation machinery
• Industrial control systems at harsh environments
• Mechanical and electrical equipment
• Electronic instruments and equipment
• Robotic lawn mower / AMR / AGV
• Laser related machine
• DC centralized bus
• Charging related equipment (with BMS)
