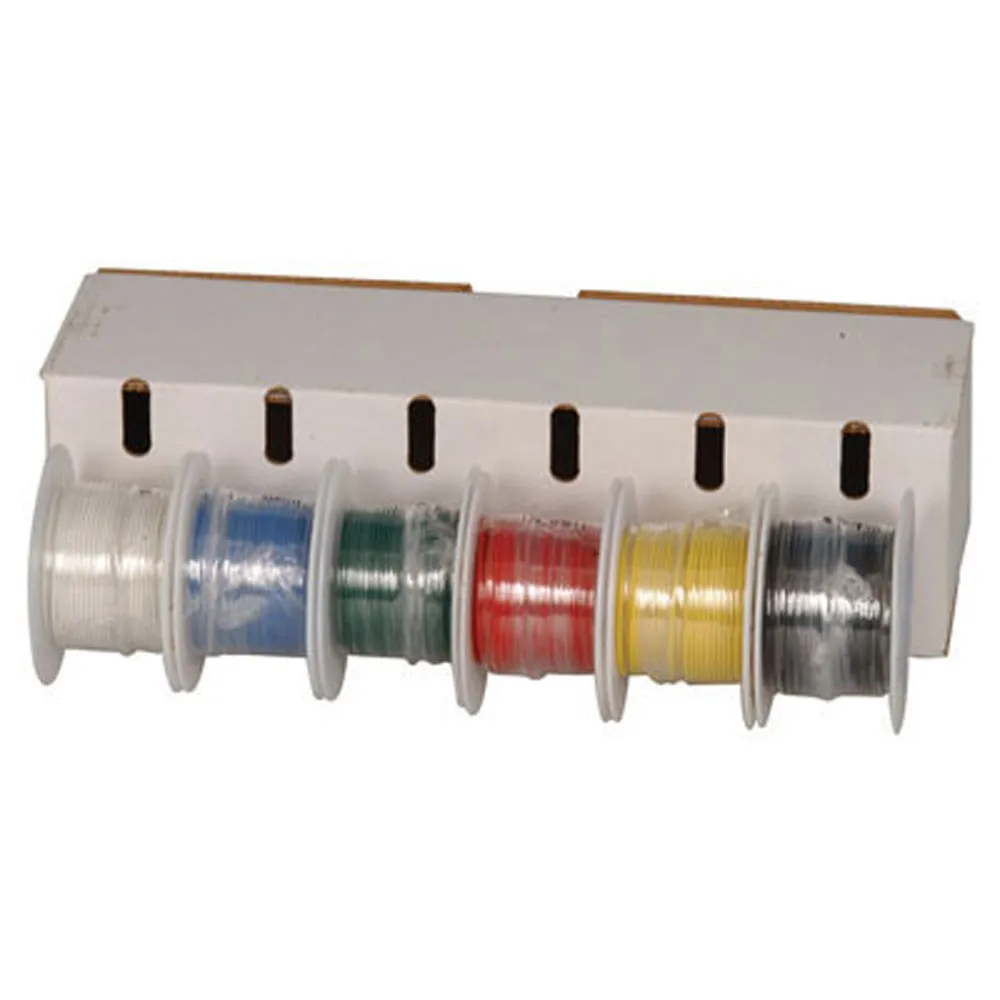

100 Foot 22 AWG Stranded Hook-Up Wire Bundle with Dispenser Box

This bundle contains six 100 foot spools of our popular 22 gauge stranded hook-up wire. Each spool is a different color and comes in a cardboard dispenser box.

A bundle of 25 spools of the same six colors is also available in a cardboard dispenser box.

Features

• Colors Included: Black, Light Blue, Green, Red, White, Yellow
• Individual spools are available to refills, see the colors linked above
• Dual rated: UL1007 and UL1569: -40°C to 105°C, 300V peak
• Tin-plated copper
• PVC insulation
• Stranded wire
• 22 AWG wire gauge
• Nominal O.D.: 0.062"
• 7 strands of wire @ 30 AWG each
• Approvals: UL1007, UL1569, VW-1, CSA-TR-64 90°C, OSHA acceptable, RoHS
• Appliance Wiring Material (AWM) is UL recognized covering of insulated wire and cable intended for internal wiring of appliances, meters, panels, electrical and electronic equipment.

Applications

• Hook-up wire
• Point-to-point wiring
• Internal wiring of meters, panels, electrical, and electronic equipment

Packaging

• (6) spools, each spool is 100 ft.
• Complete listing of 22 AWG stranded hook-up wire
