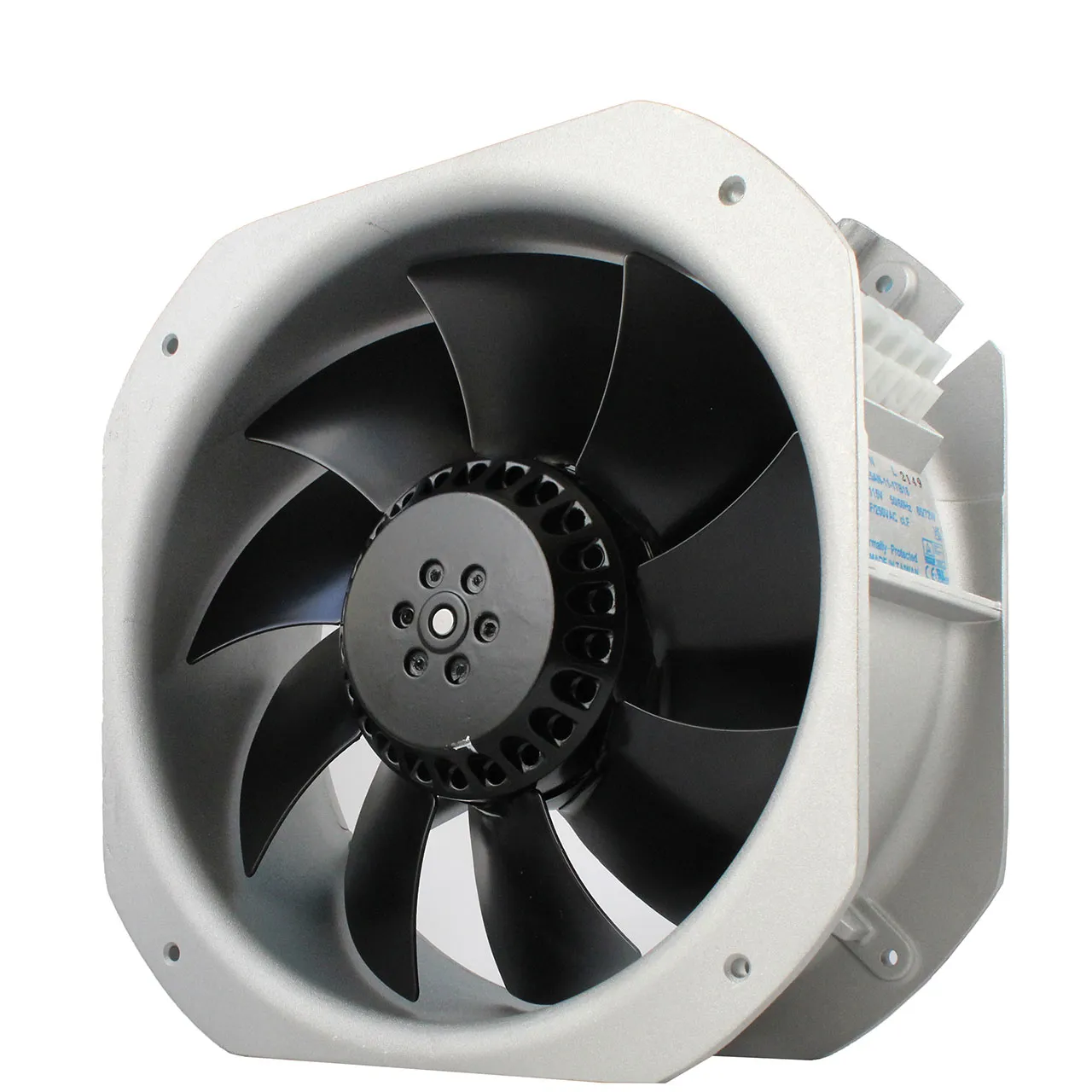

225 mm x 240 mm x 80 mm Tube Axial Fan 115 VAC Ball Bearing 620CFM 66.2dBA Terminals

Features

  • Voltage Rating: 115 VAC
  • Height: 240 mm
  • Width: 225 mm
  • Depth: 80 mm
  • Air Flow (CFM): 620
  • Bearing: Ball
  • Current Rating: 695 mA
  • Power Rating: 80 W
  • Agency Approvals: UL, CUL, TUV, CE
  • Noise (dBA): 66.2
  • Termination: Terminals
  • Product Type: 225 mm x 240 mm AC Fans
  • Speed: 3100 rpm
  • IP Rating: IP68
  • Maximum Pressure: 0.74 in.
  • Motor Drive Type: AC, Capacitor Induction, Outer Rotor, Single Phase, Thermal Protected

Overview

Fans are a necessary component when you need to keep electronics cool or to keep the air flow moving. The Ball bearing system of the tube axial fan is designed to operate up to 3100 rpm.

,
