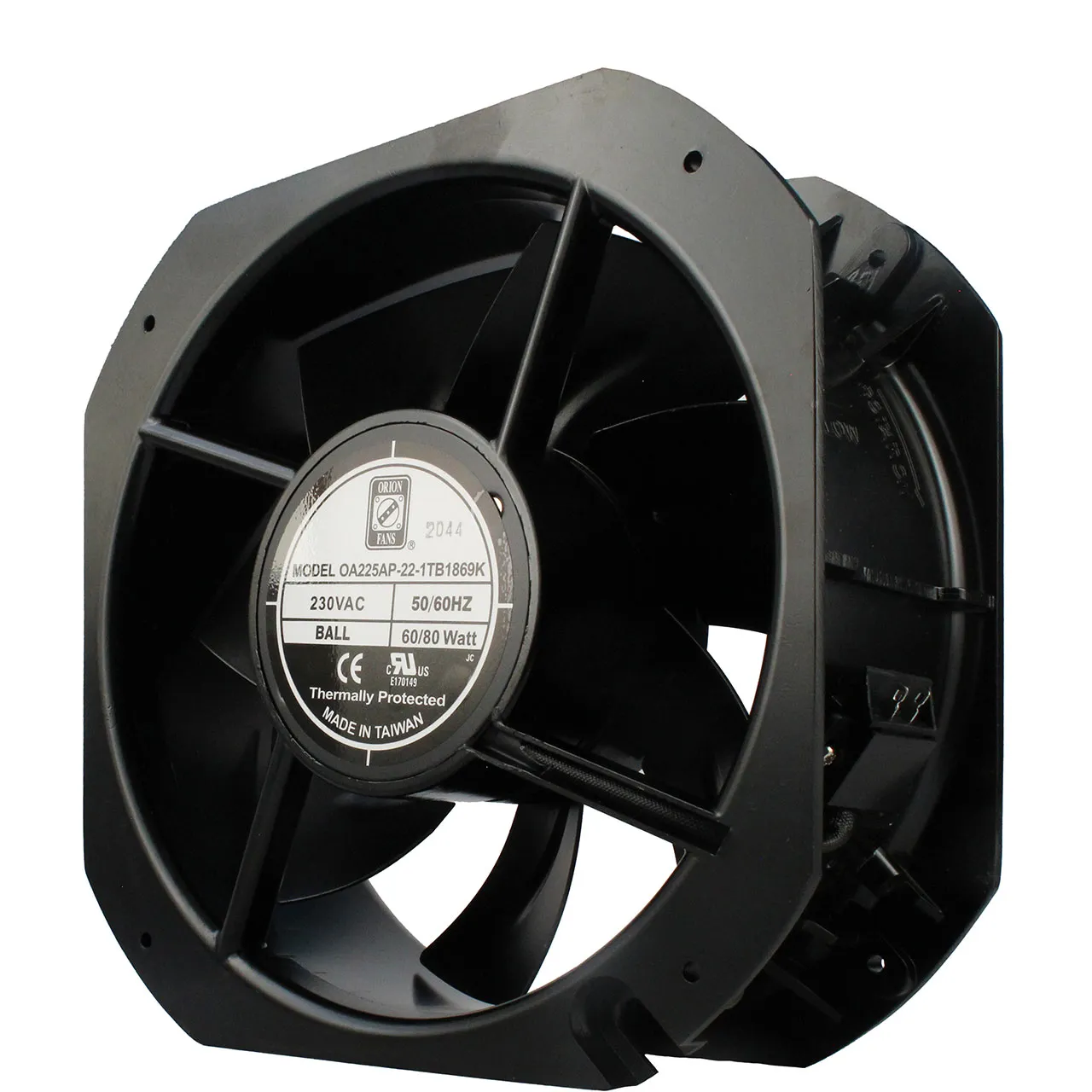

225 mm x 225 mm x 80 mm Tube Axial Fan 230 VAC Ball Bearing 620CFM 66.2dBA 12" Wires

Features

  • Voltage Rating: 230 VAC
  • Height: 225 mm
  • Width: 225 mm
  • Depth: 80 mm
  • Air Flow (CFM): 620
  • Bearing: Ball
  • Current Rating: 347 mA
  • Power Rating: 80 W
  • Agency Approvals: UL, CUL, TUV, CE
  • Noise (dBA): 66.2
  • Termination: 12" Wires
  • Product Type: 225 mm x 225 mm AC Fans
  • Speed: 3100 rpm
  • IP Rating: IP69K
  • Maximum Pressure: 0.74 in.
  • Motor Drive Type: AC, Outer Rotor, Capacitor Induction, Single Phase, Thermally Protected

Overview

Fans are a necessary component when you need to keep electronics cool or to keep the air flow moving. The Ball bearing system of the tube axial fan is designed to operate up to 3100 rpm.

,
