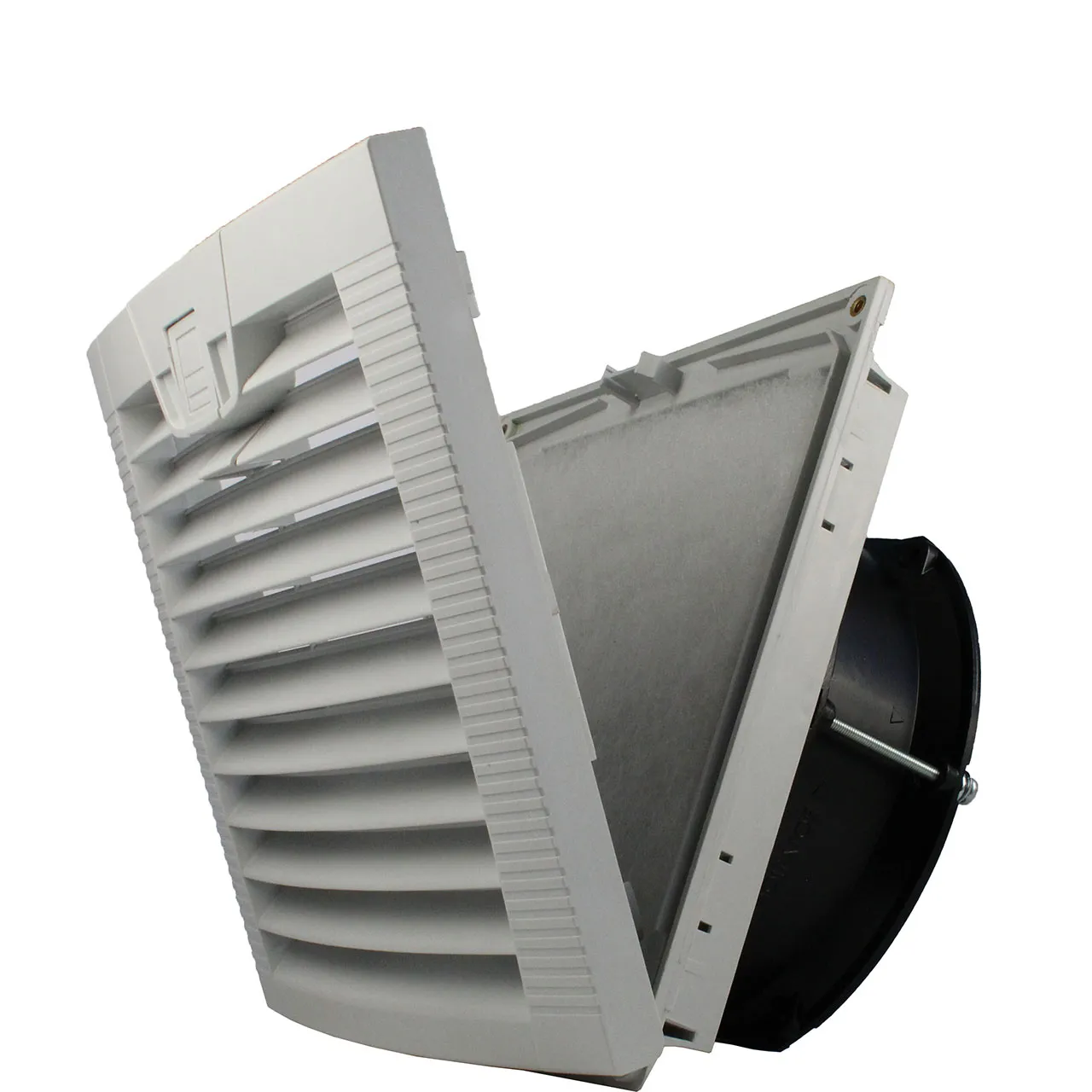

225 mm x 225 mm x 124 mm Tube Axial Fan 230 VAC Dual Ball Bearing 360CFM 61dBA Terminals

Features

  • Voltage Rating: 230 VAC
  • Height: 225 mm
  • Width: 225 mm
  • Depth: 124 mm
  • Air Flow (CFM): 360
  • Bearing: Dual Ball
  • Current Rating: 350 mA
  • Power Rating: 80 W
  • Agency Approvals: UL, CUL, TUV
  • Noise (dBA): 61
  • Termination: Terminals
  • Product Type: Louvered Filter Fan Kit with Fan Installed
  • Speed: 2800 rpm
  • IP Rating: IP55
  • Maximum Pressure: 0.67 in.
  • Additional Features: Die Cast Aluminum Frame Black, Metal Impeller, Louvered Filter Kit, Class F Insulation
  • Motor Drive Type: Capacitor Drive, Thermally Protected

Overview

Fans are a necessary component when you need to keep electronics cool or to keep the air flow moving. The Dual Ball bearing system of the tube axial fan is designed to operate up to 2800 rpm.

Product Identification

Additional Feature:Die Cast Aluminum Frame Black, Metal Impeller, Louvered Filter Kit, Class F Insulation
Product Type:Louvered Filter Fan Kit with Fan Installed

Compliance

RoHS Status:ROHS Compliant
Compliance:Compliance Docs
Agency Approvals: CUL, TUV, UL

Dimensions & Appearance

Depth:124 mm
Width:225 mm
Height:225 mm

Features

Bearing:Dual Ball
IP Rating:IP55
Noise (dBA):61
Speed:2800 rpm
Motor Drive Type:Capacitor drive, Thermally Protected
Maximum Pressure:0.67 in.
Voltage Rating:230 VAC
Air Flow (CFM):360
Termination:Terminals
Power Rating:80 W
Current Rating:350 mA
,
