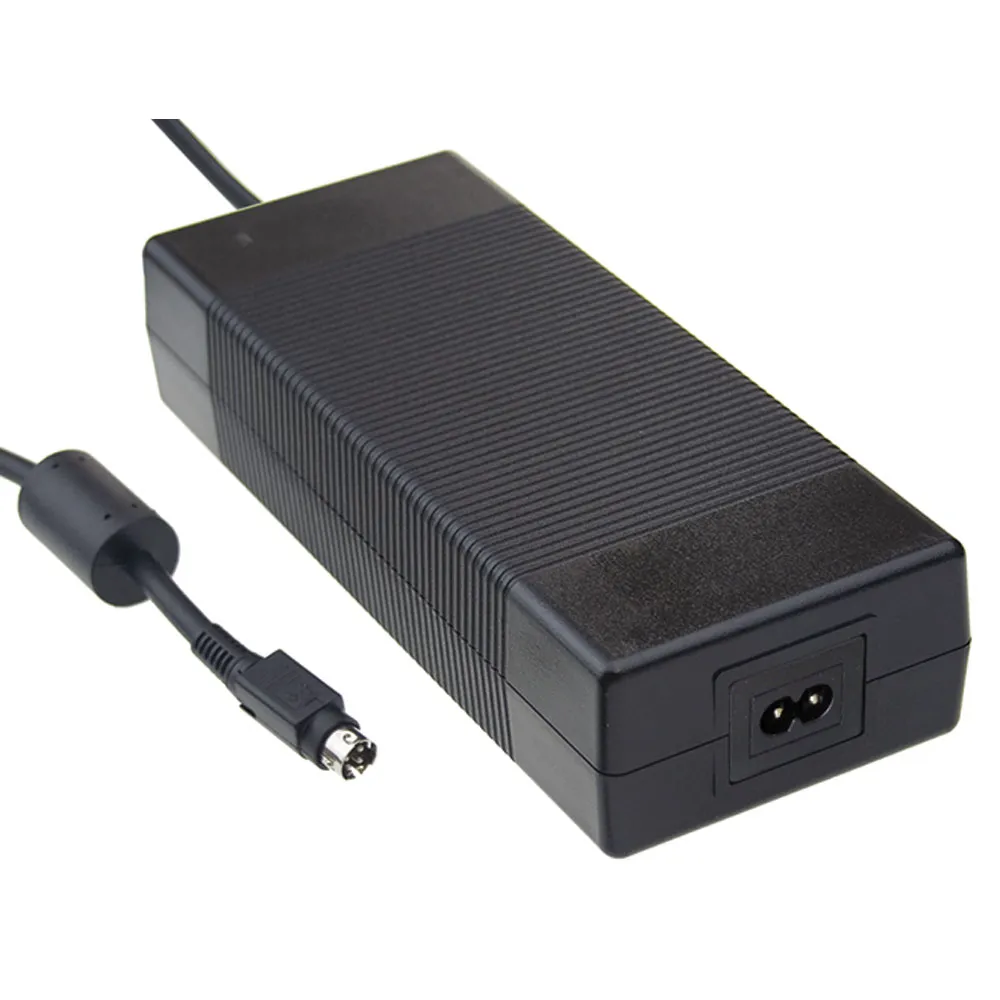

221W 48V 4.6A AC-DC High Reliability Medical Table Top Power Supply

48 Volts @ 4.6 Amps

Features:

  • Universal AC input / Full range
  • 2 pole AC inlet IEC320-C8. (AC input cord is not included, we recommend our 2-Conductor power cord P/N 189587)
  • Output Connector: 4-pin DIN
  • Built-in active PFC function
  • No load power consumption: <0.15W
  • Energy efficiency Level VI
  • Comply with EISA 2007/DoE, NRCan, AU/NZ MEPS, EU ErP, and CoC Version 5
  • Class II power (without earth pin)
  • Protections: Short circuit / Overload / Over voltage / Over temperature
  • Fanless design with -30 to +70°C working temperature
  • Fully enclosed plastic case
  • LED indicator for power on
  • 3 years warranty

Applications:

  • Mobile clinical workstation
  • Oral irrigator
  • Portable hemodialysis machine
  • Breath machine
  • Medical computer monitor

Product Identification

Type:Switching
Product Type:AC to DC Power Supply SMPS
Manufacturer Series:GSM220

Compliance

Agency Approvals:UL, CUL, TUV, CB, CE, FCC, EN, EAC, UKCA

Dimensions & Appearance

Style:Desktop
Color:Black
Height:1.81 in.
Width:3.35 in.
Length:8.27 in.

Operating conditions

Minimum Operating Temperature:-30°C
Maximum Operating Temperature:70°C

Packaging

Packaging:Carton

Input

Input Frequency:47 Hz to 63 Hz
Input Voltage:80 VAC to 264 VAC
Maximum Input Current:4 A

Output

Number of Outputs:1
Output Connector Diameters:DIN-4 Male
Output Connector Type:DIN-4 Male
Output Voltage:48 VDC
Additional Output Voltages (VDC):N/A
Output Current:4.60 A

Features

Polarity:N/A
Product Note:Level VI
Minimum Isolation Voltage:4000V
AC Power Cord:NOT INCLUDED, RECOMMEND 189587
Efficiency:94.5%
Power Rating:221 W
,
