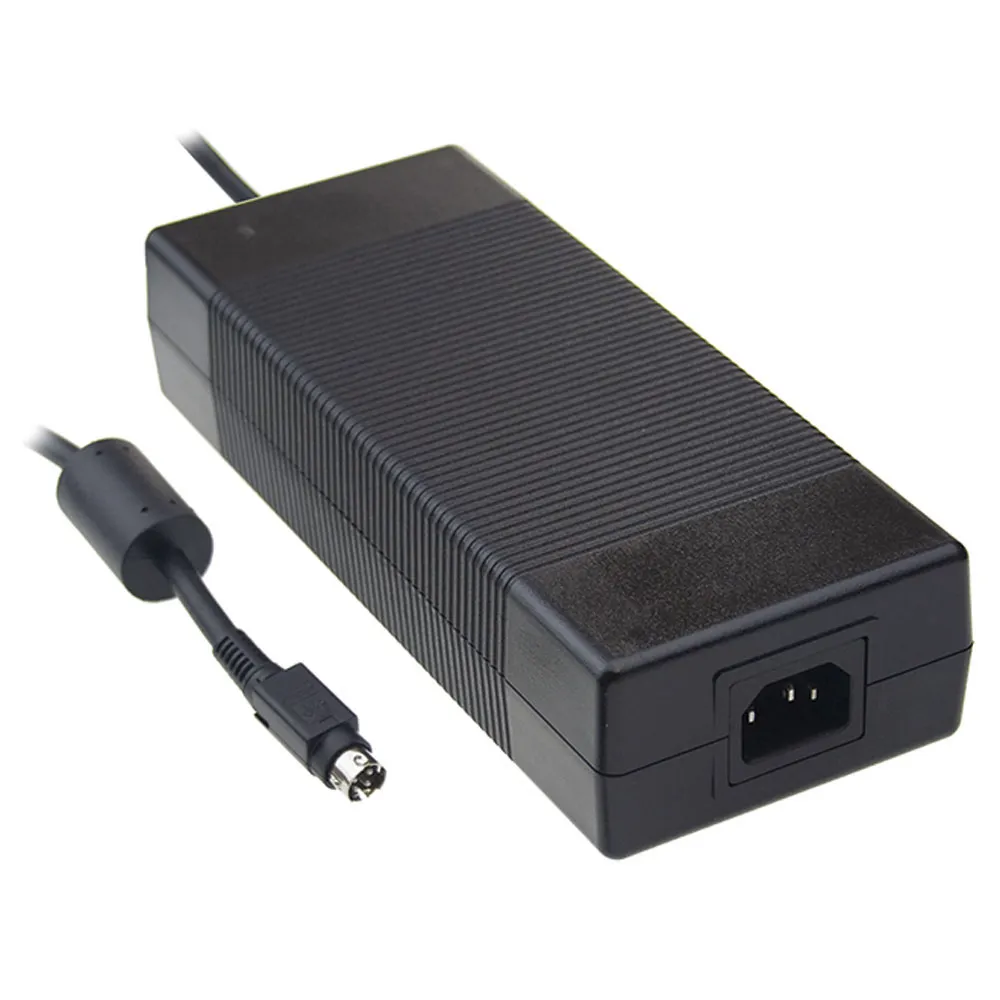

221W 24V 9.2A AC-DC High Reliability Industrial Adapter

24 Volts @ 9.2 Amps

Features

  • Universal AC input / Full range
  • 3 pole AC inlet IEC320-C14. (AC input cord is not included, we recommend our 3-conductor AC power cord, P/N: 2271575)
  • Output Connector: DIN-4 (KYCON KPPX-4P)
        Mating Plug (customer side, not supplied): KYCON KPJX-CM-4S equivalent
  • Built-in active PFC function
  • No load power consumption: <0.15W
  • Energy efficiency Level VI
  • Comply with EISA 2007/DoE,NRCan, AU/NZ MEPS,EU ErP and CoC Version 5
  • Class I power (with earth pin)
  • Protections: Short circuit / Overload / Over voltage / Over temperature
  • Fanless design with -30 to +70°C working temperature
  • Fully enclosed plastic case
  • LED indicator for power on
  • 3 years warranty

Applications

  • Consumer electronic devices
  • Telecommunication devices
  • Office facilities
  • Industrial equipment

Related Products

Overview

Product Identification

Type:Auto Switching SMPS
Manufacturer Series:GST220A

Compliance

Agency Approvals: CB, CCC, CE, CUL, EAC, EN, FCC, TUV, UL

Dimensions & Appearance

Style:Desktop
Color:Black
Height:1.81 in.
Width:3.35 in.
Length:8.27 in.

Operating conditions

Minimum Operating Temperature:-30°C
Maximum Operating Temperature:70°C

Input

Input Frequency:47 Hz to 63 Hz
Input Voltage:85 VAC to 264 VAC
Maximum Input Current:4 A

Output

Number of Outputs:1
Output Connector Diameters:DIN-4 Male
Output Connector Type:DIN-4 Male
Output Voltage (Channel 1):24 VDC
Output Voltage:24 VDC
Additional Output Voltages (VDC):N/A
Output Current (Channel 1):9.20 A
Output Current:9.20 A

Features

Minimum Isolation Voltage:3000V
Polarity:N/A
Product Note:Level VI
AC Power Cord:NOT INCLUDED, RECOMMEND 2271575
IP Rating:N/A
Efficiency:93.5%
Power Rating:221 W
,
