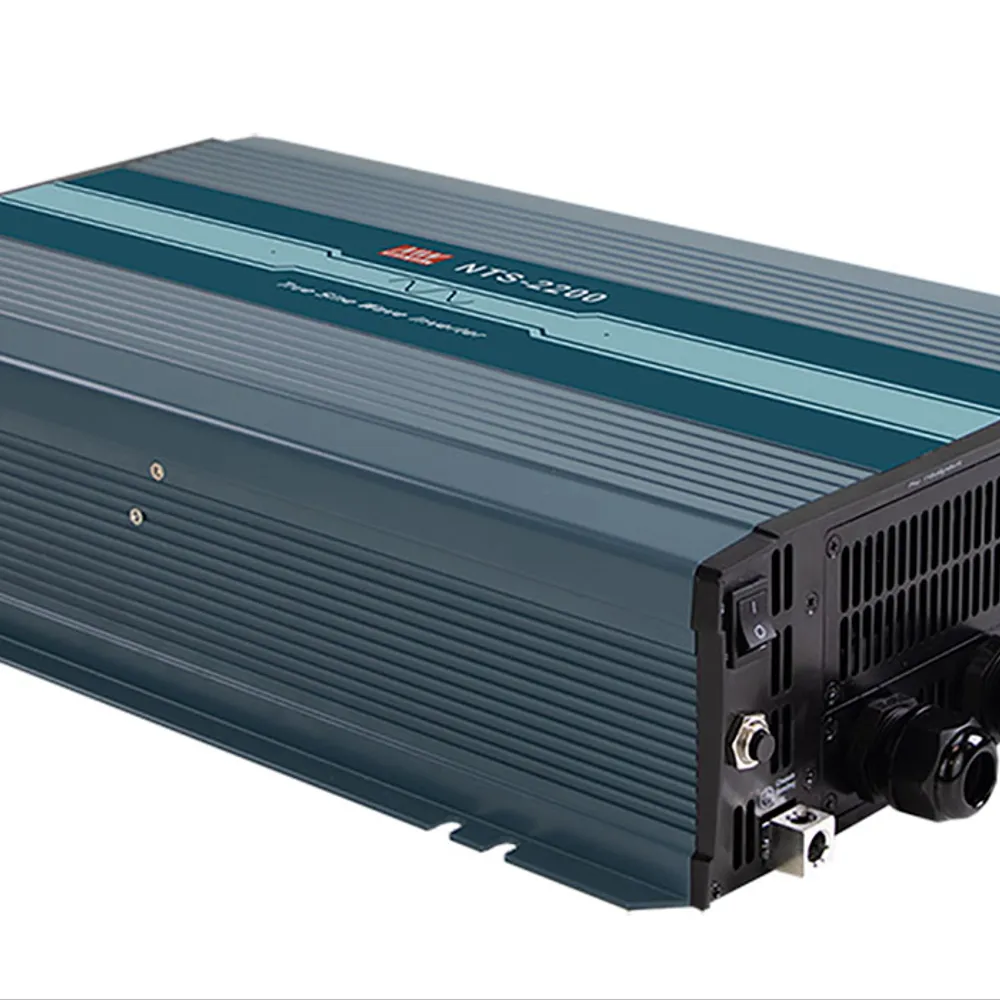

220VAC Output 2200W True Sine Wave DC-AC Power Inverter 12VDC 250A Input Terminal Block

Features

• True sine wave output (THD <3%)
• High surge power up to 4400W
• Temperature controlled cooling fan
• AC output voltage and frequency selectable by DIP switch
• No load dissipation <1.7W max. at standby saving mode
• -25°C to +70°C wide operating temperature
• Power ON-OFF remote control
• Front panel indicator for operation status
• Protections:
• Input: Reverse polarity, DC low alarm, DC low shutdown, Over voltage
• Output: Short circuit, Overload, Over temperature
• Battery over discharge protection (low voltage disconnect)
• Suitable for lead-acid or li-ion batteries
• Remote controller (IRC1, IRC2, IRC3 accessory sold separately, see datasheet)
• Support RS-232 communication (Communication cable order no.: DS-RJ11-RS232, sold separately)
• Conformal coating
• 3-year warranty

Overview

Find out more about MEAN WELL Industrial Grade, Reliable and Durable Charger and Inverters.

Technical Specifications

• Output Connection: Terminal Block
• Battery Types: Lead Acid or Li-Ion
• Size: 16.54"L x 10.63"W x 3.86"H (420 x 270 x 98mm)
• Agency Approvals: CB, CE, FCC, EN, EAC, UKCA, DEKRA

Applications

• Mobile device
• Home and office appliance
• Portable equipment
• Vehicle
• RV
• Yacht
• Off-grid solar power system
• Wireless network
• Telecom or datacom system

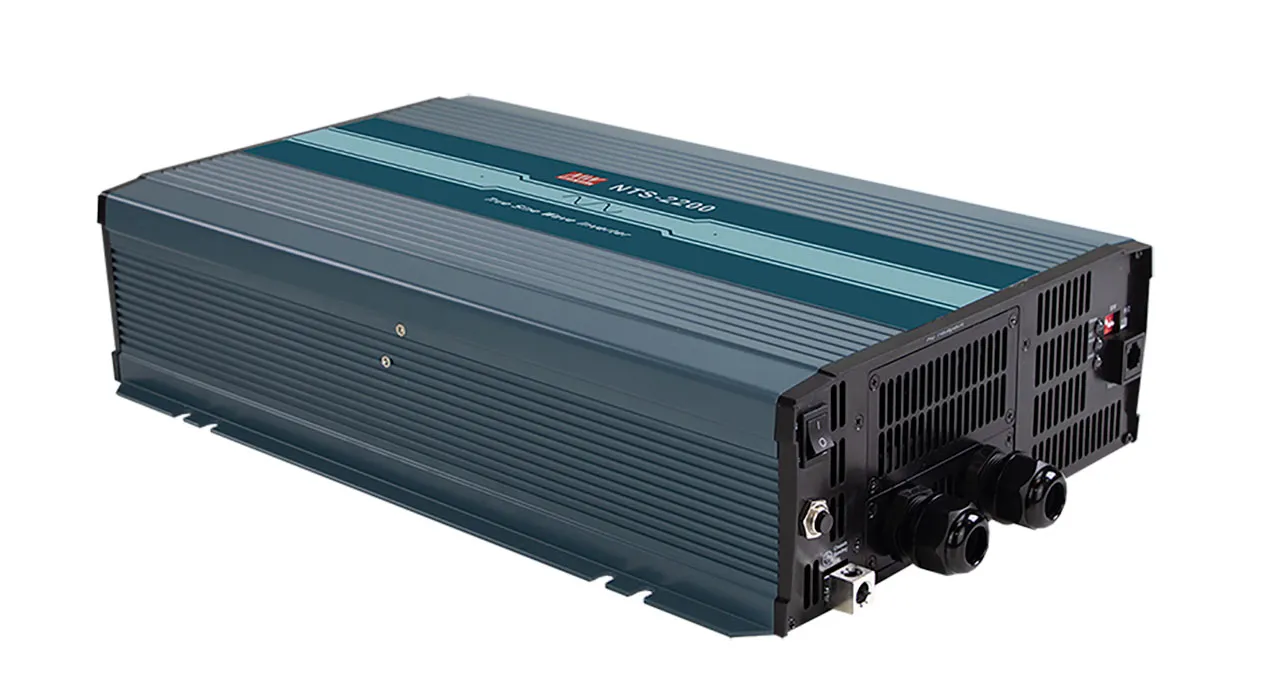

Alternate Angles
