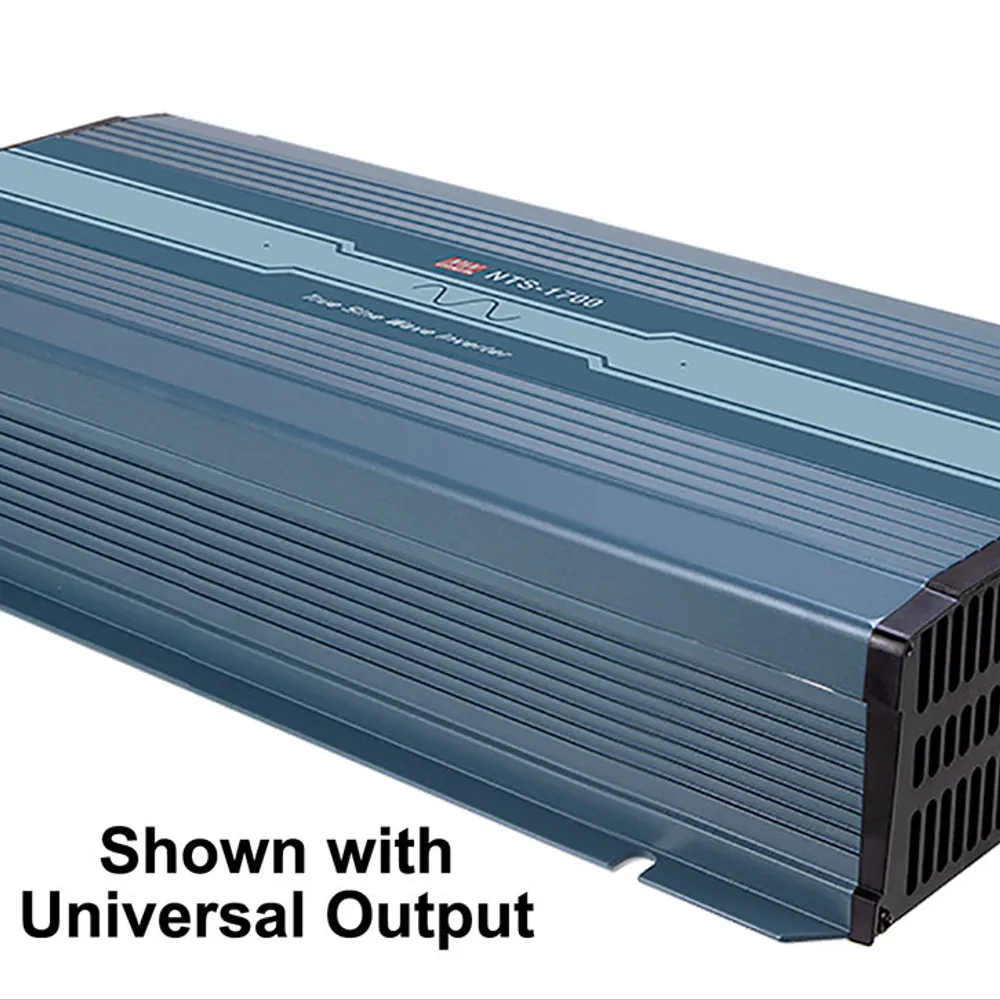

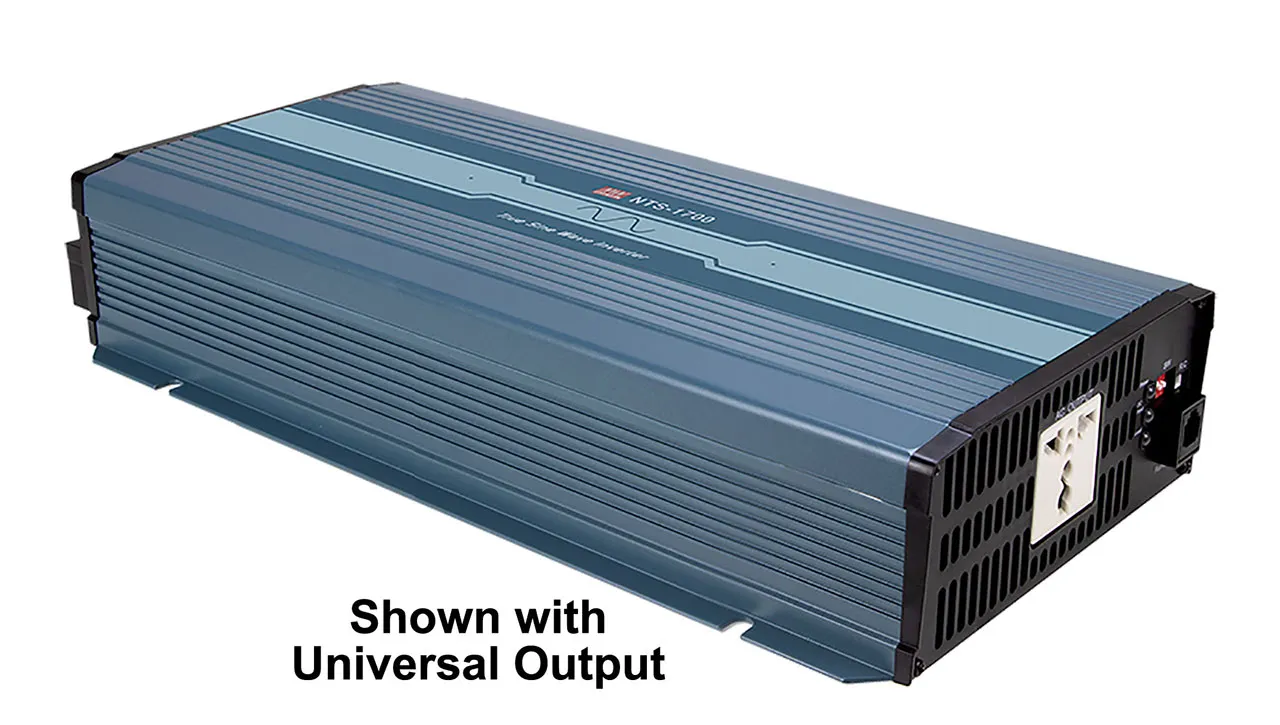

220VAC Output 1700W True Sine Wave DC-AC Power Inverter European Socket 12VDC 170A Input

Output: 200 / 220 / 230 / 240 VAC (Selectable by DIP switch)
Input: 12 VDC, 170 A

Find out more about MEAN WELL Industrial Grade, Reliable and Durable Charger and Inverters.

Features

  • True sine wave output (THD <3%)
  • High surge power up to 3400W
  • Temperature controlled cooling fan
  • AC output voltage and frequency selectable by DIP switch
  • No load dissipation <1.5W max. at standby saving mode
  • -25°C to +70°C wide operating temperature
  • Power ON-OFF remote control
  • Front panel indicator for operation status
  • Protections:
    • Input: Reverse polarity, DC low alarm, DC low shutdown, Over voltage
    • Output: Short circuit, Overload, Over temperature
  • Battery over discharge protection (low voltage disconnect)
  • Suitable for lead-acid or li-ion batteries
  • Remote controller (IRC1, IRC2, IRC3 accessory sold separately, see datasheet)
  • Support RS-232 communication (Communication cable order no.: DS-RJ11-RS232, sold separately)
  • Conformal coating
  • 3-year warranty

Specifications

AC Output:
  • Rated Power: 1700 W; 2000 W (over rated power, 3 min.); 2550 W (peak power, 10 sec.); 3400 W (surge power, 30 cycles)
  • AC Voltage: 200 / 220 / 230 / 240 VAC, selectable by DIP switch (230VAC is default)
  • Frequency: 50 / 60 Hz, selectable by DIP switch (50 Hz is default)
  • Output Connection: European Receptacle
DC Input
  • DC Voltage: 12 VDC
  • Voltage Range (typ.): 10 VDC to 16.5 VDC
  • DC Current: 170 A
  • Efficiency: 89%
  • Battery Types: Lead Acid or Li-Ion
  • Size: 15.75"L x 7.24"W x 2.76"H (400 x 184 x 70mm)
  • Agency Approvals: CB, CE, FCC, EN, EAC, UKCA

Applications

  • Mobile device
  • Home and office appliance
  • Portable equipment
  • Vehicle
  • RV
  • Yacht
  • Off-grid solar power system
  • Wireless network
  • Telecom or datacom system

Alternate Angles

Input Side of Mean Well NTS-1700 Power Inverter

Product Identification

Product Type:True Sine DC-AC Inverter
Manufacturer Series:NTS-1700

Compliance

Agency Approvals:CB, CE, FCC, EN, EAC, UKCA, C-Tick, Dekra

Dimensions & Appearance

Color:Gray
Height:2.76 in.
Length:15.75 in.
Width:7.24 in.
Mounting:Chassis

Operating conditions

Minimum Operating Temperature:-25°C
Maximum Operating Temperature:70°C

Input

Input Frequency:50 Hz, 60 Hz
Input Voltage:12 VDC
Input Voltage Range:10 VDC to 16.5 VDC
Maximum Input Current:170 A

Output

Number of Outputs:1
Output Connector Type:Europe
Output Voltage:200 VAC, 220 VAC, 230 VAC, 240 VAC
Output Current:N/A

Features

AC Power Cord:NOT INCLUDED
Efficiency:89%
Power Rating:1700 W
,
