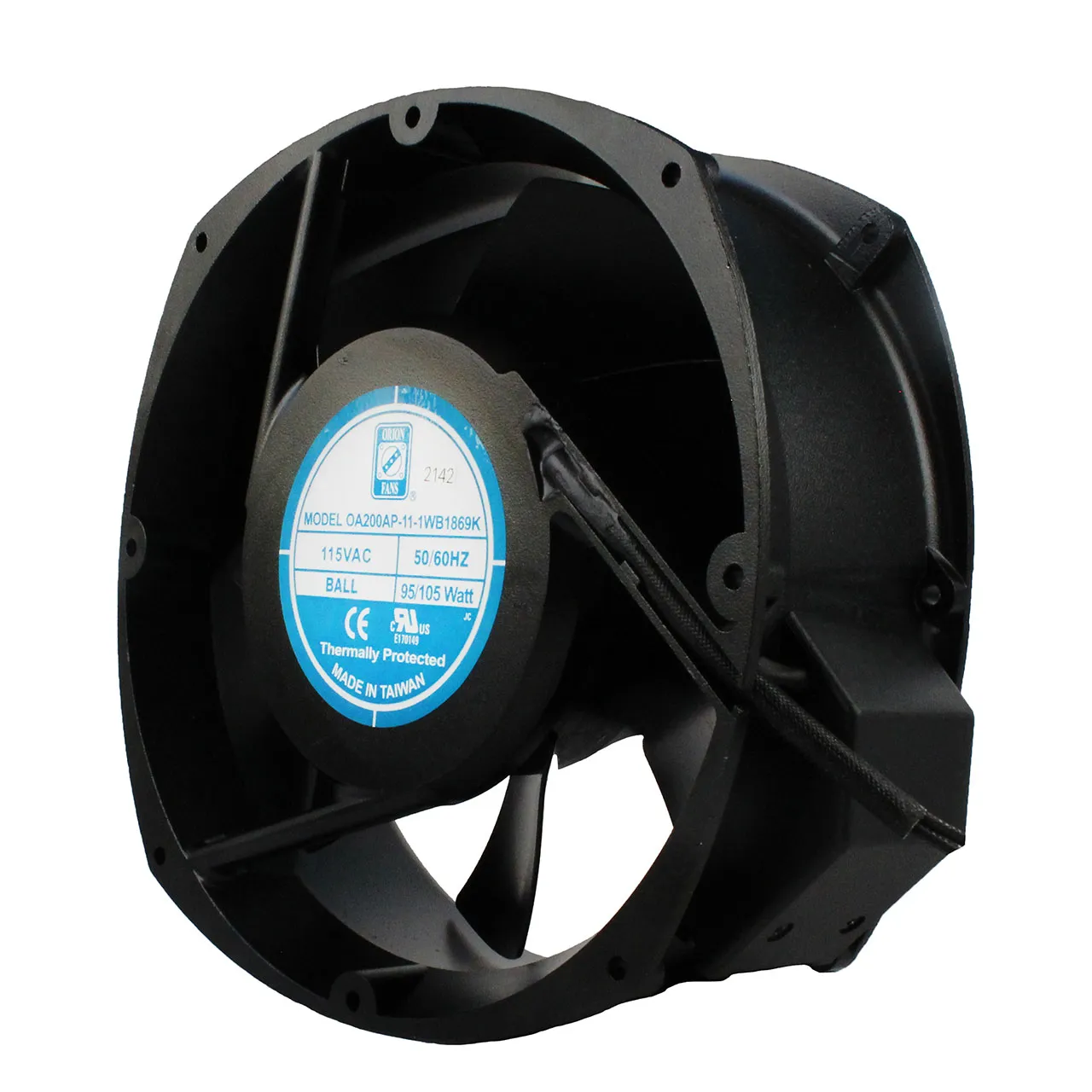

220 mm x 220 mm x 72 mm Tube Axial Fan 115 VAC Ball Bearing 485CFM 68.2dBA Terminals

Features

  • Voltage Rating: 115 VAC
  • Height: 220 mm
  • Width: 220 mm
  • Depth: 72 mm
  • Air Flow (CFM): 485
  • Bearing: Ball
  • Current Rating: 913 mA
  • Power Rating: 105 W
  • Agency Approvals: UL, CUL, TUV, CE, UKCA
  • Noise (dBA): 68.2
  • Termination: Terminals
  • Product Type: 220mm x 220mm AC Fan
  • Speed: 3300 rpm
  • IP Rating: IP69K
  • Maximum Pressure: 0.93 in.
  • Motor Drive Type: AC, Capacitor Induction, Single Phase, Thermally Protected, IP69K

Overview

Fans are a necessary component when you need to keep electronics cool or to keep the air flow moving. The Ball bearing system of the tube axial fan is designed to operate up to 3300 rpm.

,
