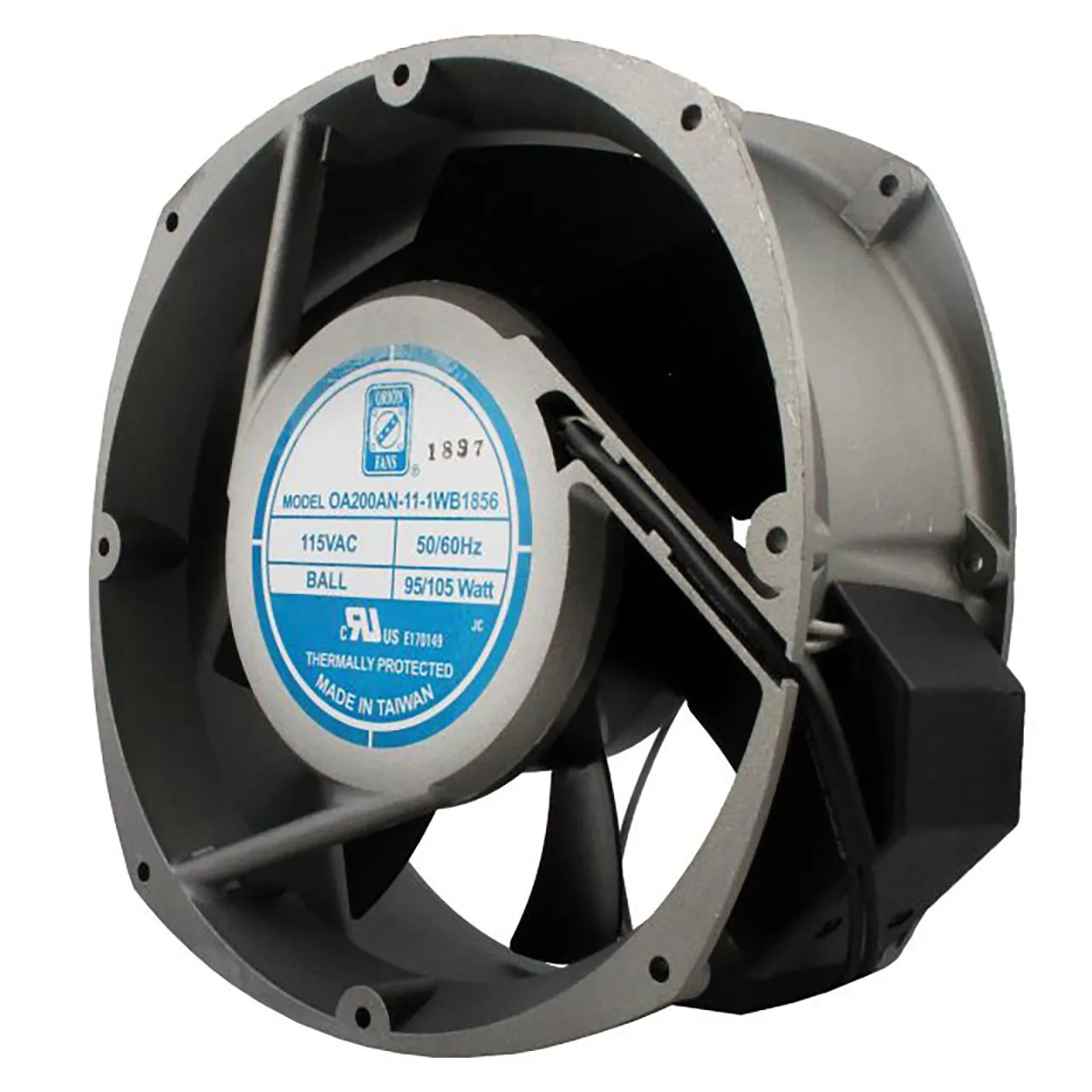

220 mm x 220 mm x 70 mm Tube Axial Fan 115 VAC Ball Bearing 485CFM 68dBA Terminals

Orion Fans

Jameco Part #:

Manufacturer #:

Primary datasheet

Product Price:

$113.950

In Stock: 0

Quantity	Unit Price	You Save	Discount
1+	$113.950	-	-
5+	$103.950	10.00	8.78%
25+	$95.650	18.30	16.06%

Features

Voltage Rating: 115 VAC
Height: 220 mm
Width: 220 mm
Depth: 70 mm
Air Flow (CFM): 485
Bearing: Ball
Current Rating: 913 mA
Power Rating: 105 W
Agency Approvals: UL, CUL, TUV
Noise (dBA): 68
Termination: Terminals
Product Type: 220mm x 220mm AC Fan
Speed: 3300 rpm
IP Rating: IP56
Maximum Pressure: 0.93 in.
Motor Drive Type: AC, Capacitor Induction, Thermally Protected

Overview

Fans are a necessary component when you need to keep electronics cool or to keep the air flow moving. The Ball bearing system of the tube axial fan is designed to operate up to 3300 rpm.
