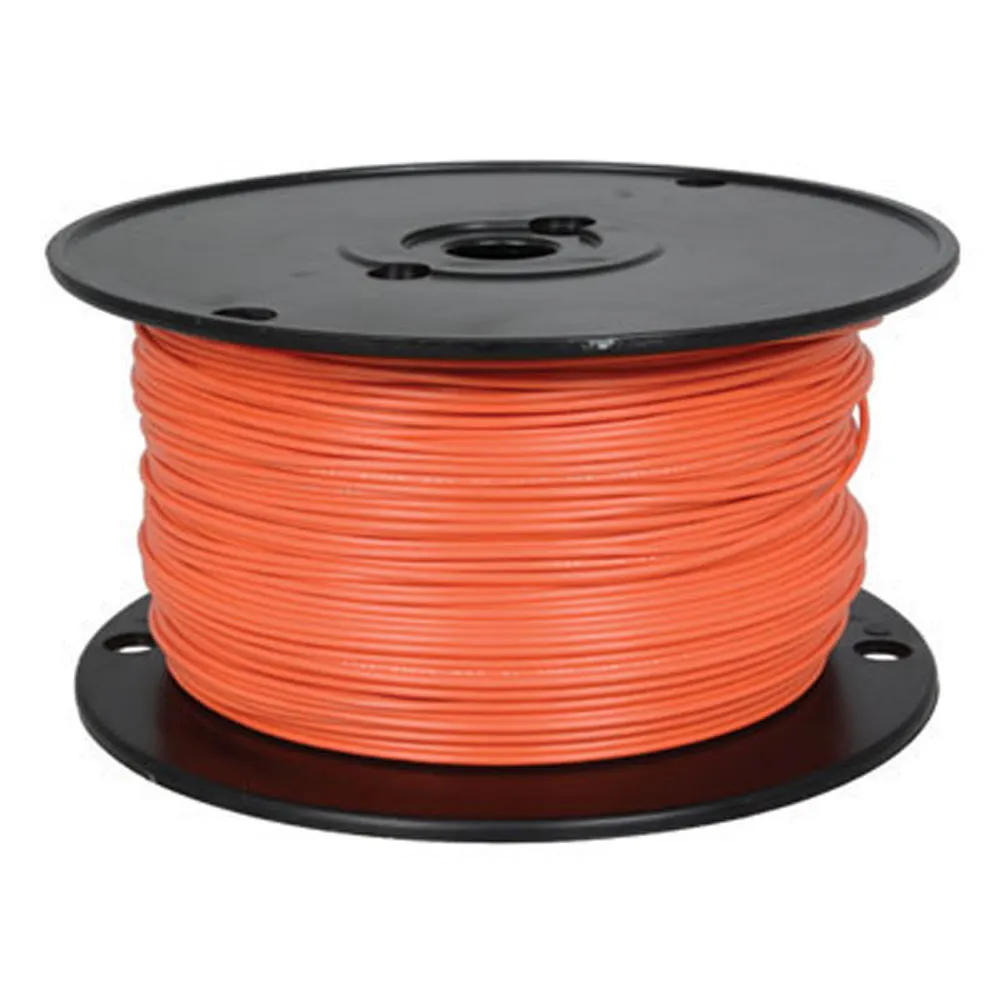

22 AWG Dual-Rated Stranded Hook-Up Wire Orange 500 Foot Reel

Features

  • Consolidated Electronic Wire & Cable PN: 818-3-500
  • Color: Orange
  • 500 foot spool
  • Stranding: 7 x 30 tin copper wire
  • Nominal Outer Diameter: 0.062"
  • Voltage Rating: 300V
  • Color coded PVC insulation
  • Dual rated: UL1007/1569
  • Temperature: -40° to +80°C (UL1007); -40° to +105°C (UL1569)
  • UL Style 1007
  • UL Style 1569
  • CSA-TR-64 (90°C)
  • VW-1
  • RoHS compliant
  • OSHA acceptable

Overview

Applications

  • Hook-up wire
  • Point to point wiring
  • Internal wiring of meters, panels, electrical and electronic equipment

Product Identification

Additional Feature:Made in USA
Product Type:Stranded Hook-up Wire

Compliance

Agency Approvals: CSA VW-1 AWM I A/B FT-1, UL 1007, UL 1569

Dimensions & Appearance

Color:Orange
Length:500 ft.

Packaging

Package:Reel

Features

Number of Conductors:1
Insulation Type:PVC
Conductor Strand:7 x 30
Wire Gauge (AWG):22
Voltage Rating:300 V
,
