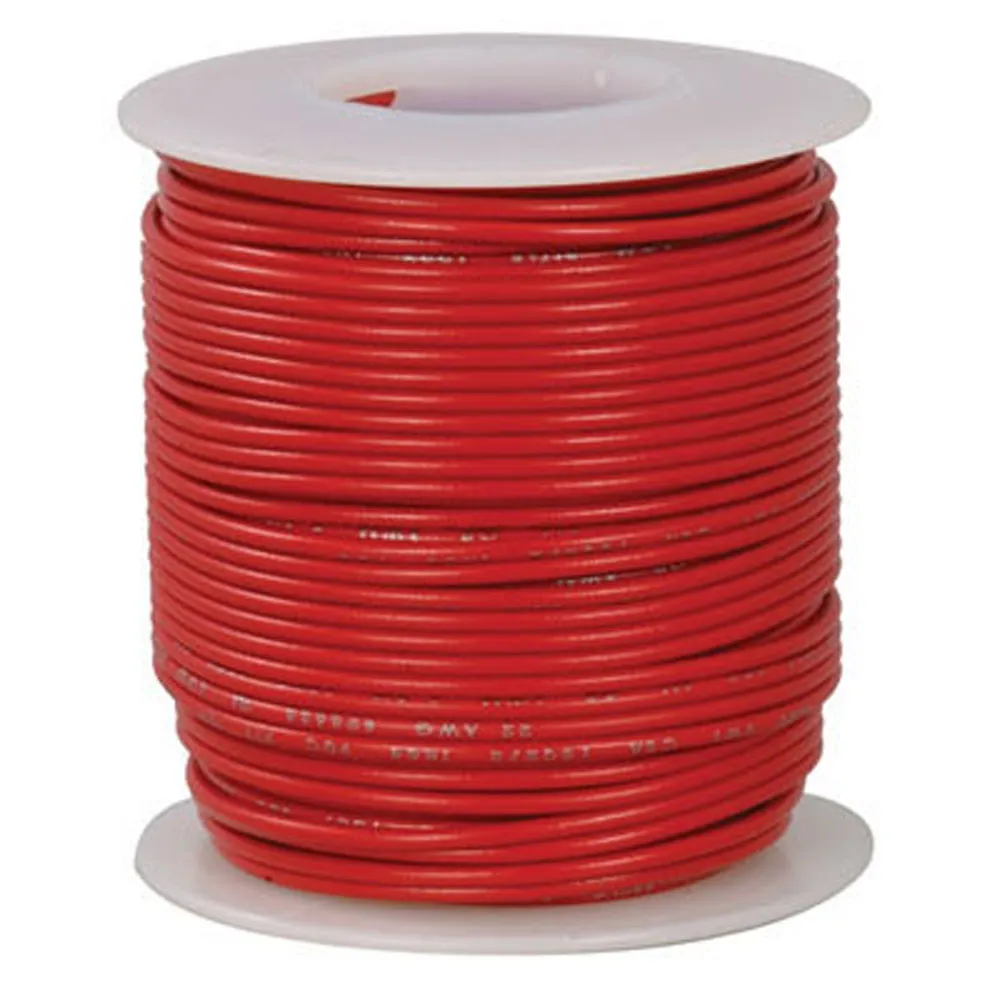

22 AWG Dual Rated Stranded Hook-up Wire 100' Red

Features

  • Consolidated Electronic Wire & Cable PN: 818-2-100
  • NOTICE: This wire is now manufactured to dual-rated standard to support a wider temperature range up to 105°C.
  • Dual rated: UL1007: -40°C to 80°C, UL1569: -40°C to 125°C, 300V peak
  • Tin-plated copper
  • PVC insulation
  • Stranded wire
  • Color: Red
  • 22 AWG wire gauge
  • Nominal O.D.: 0.062"
  • 7 strands of wire @ 30 AWG each
  • Approvals: UL1007, UL1569, VW-1, CSA-TR-64 90°C, OSHA acceptable, RoHS
  • Appliance Wiring Material (AWM) is UL recognized covering of insulated wire and cable intended for internal wiring of appliances, meters, panels, electrical and electronic equipment.

Product Identification

Additional Feature:Made in USA
Product Type:Stranded Hook-up Wire

Compliance

Agency Approvals: CSA VW-1 AWM I A/B FT-1, UL 1007, UL 1569

Dimensions & Appearance

Color:Red
Length:100 ft.

Packaging

Package:Reel

Features

Number of Conductors:1
Insulation Type:PVC
Conductor Strand:7 x 30
Wire Gauge (AWG):22
Voltage Rating:300 V
,
